10
0210 1
LEVEL MOWER DECK
No hardware required
• Be sure deck is properly leveled for best mower
per for mance. See your tractors owner's manual for
in struc tions

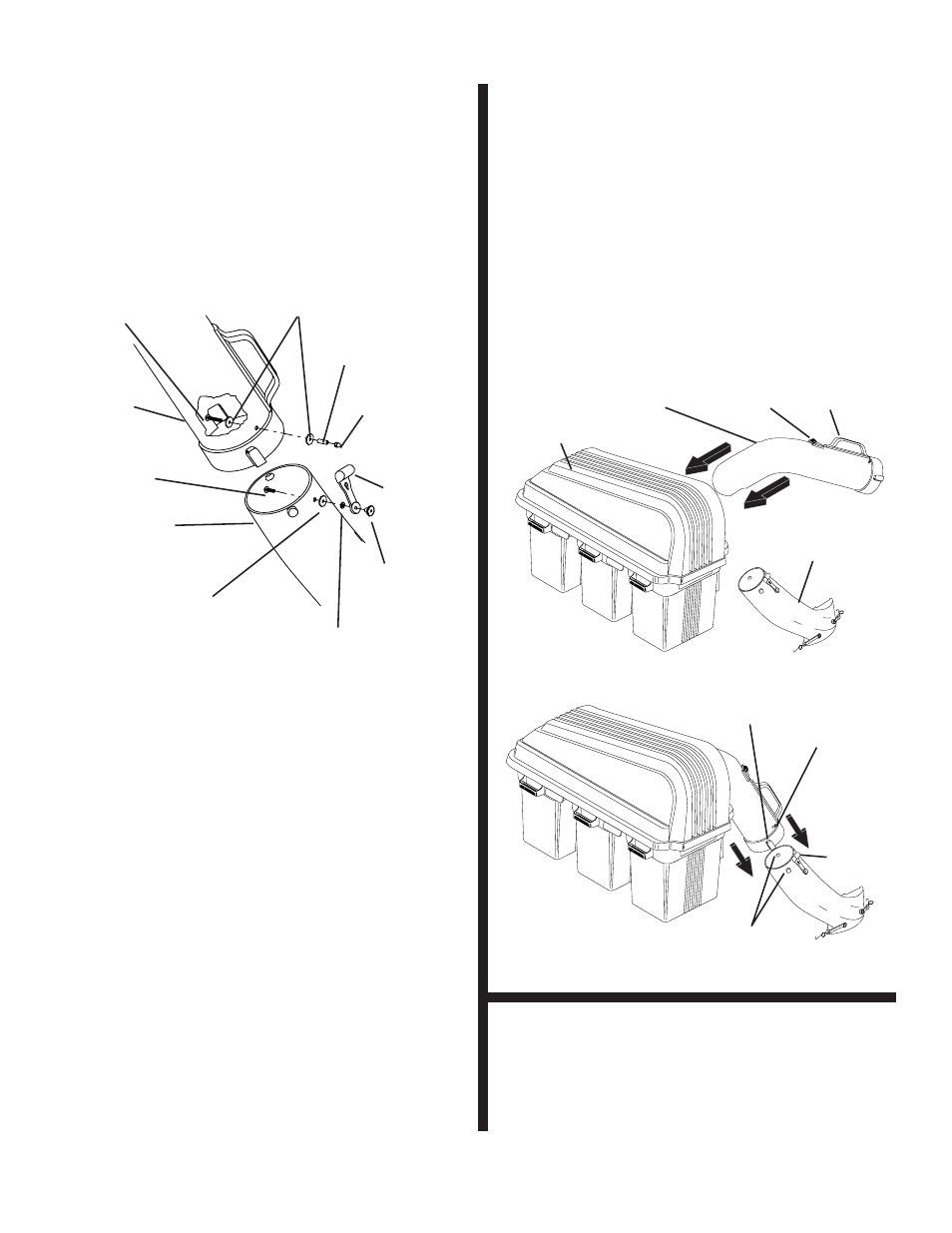

UPPER CHUTE (See Fig. 9A &9B)
No hardware required
1. Lower mower deck to its lowest cutting position.
2. Assemble upper chute by inserting curved end into
hole in back of cover.
NOTE: Handle carefully so as not to damage dump bag-
ger indicator.
3. Push in and turn upper chute until it is in line with lower
chute.
4. Align the bosses on lower chute with align ment slots
on upper chute and slide together.
5. Secure with rubber latch by hooking hole in latch over
latch pin.
10
CHUTE LATCH ASSEMBLY
(See Fig. 8)
Use Hardware - - GROUP "E & F"
1. Assemble hardware shown (latch pin) to upper
chute.
2. Press weld nut into rubber latch and assemble rubber
latch to lower chute, as shown.
3. Tighten all hardware securely.
02102
UPPER CHUTE
LOCK WASHER
WELD
NUT
ACORN NUT
SPLIT
SPACER
WASHERS
3/16 x 3/4 x 16 GA.
#10 x 1-1/8" SCREW
WASHER
3/16 x 3/4 x 16 GA.
LOWER CHUTE
#10 x 5/8"
SCREW
RUBBER
LATCH
8 9
COVER
HANDLE
LOWER
CHUTE
DUMP BAGGER
INDICATOR
UPPER
CHUTE
Fig. 9B
Fig. 9A
Fig. 8
02100
BOSS ES
LATCH PIN
ALIGN MENT
SLOT
RUBBER
LATCH
