5 6

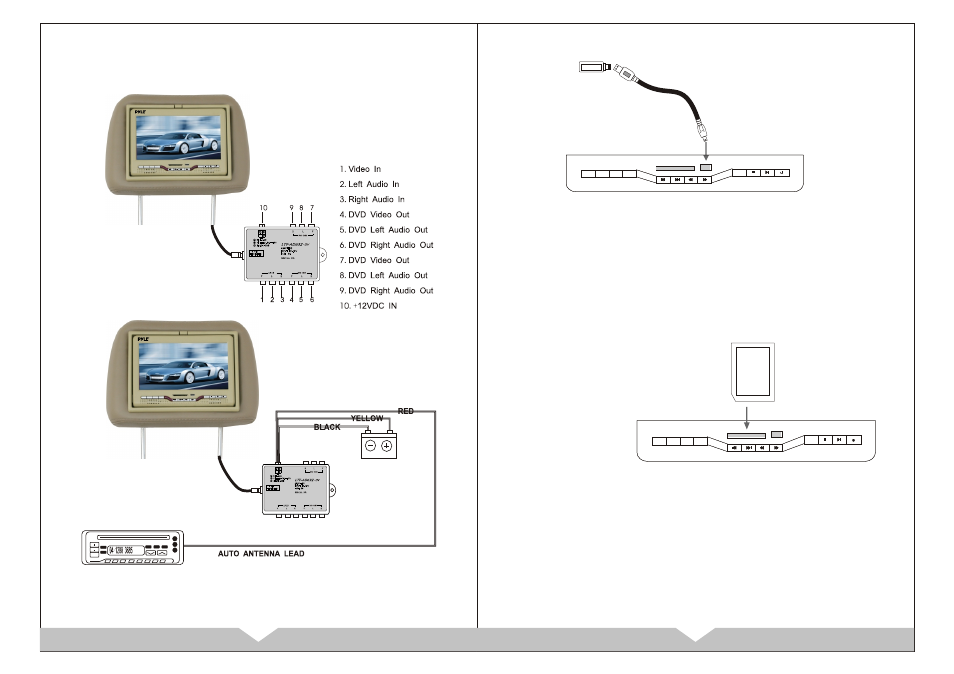

4. CONNECTING THE PLAYER TO OTHER COMPONENTS
SD US B
PLD7HB
MODE
_ MENU AV/DVD +
CONNECTTING TO THE POWER BOX
SD US B
PLD7HB
MODE
_
MENU AV/DVD +
USB CONNECTING TO THE USB
SD SD US B US B
MO DE MO DE
__
ME NU ME NU __ __ AV / DVD AV / DVD
SD
▼
1. Be sure the dish in eject, connector the USB, it will be play the USB
2. It will display “READ USB”, then play the file.
4. Pull out the USB when you want to stop playing.
3. The menu and the method same as the way of MP3 and JPEG.
NOTE:
Be sure the DVD is in ejected, then connect the USB, it will be work.
Be sure the format of the file in USB is fit with the unit, otherwise must
formatting the USB before connect with USB
CONNECTTING WITH SD CARD
1. Plug the SD card to the SD card slot, it will be read the file of SD
card.
2. It will display “READ CARD” on the screen, then will show the file
of SD card.
3. The menu and the method same as the way of MP3 and JPEG.
4. Pull out the SD card when you want to stop the playing.
SD SD USB USB
MODE MODE
__
MENU MENU ____ AV / DVD AV / DVD
MINI USB Connector
U SB USB Connector
Use the USB line, (mini USB connector and USB port 1.1), Please
reference the following drawing as below:
USB
SD CARD
NOTE:
It unit just work with SD card.
Be sure the DVD is in ejected, then the SD card will be work.
Be sure the direction of SD card is in correct when plug in the SD card.
