left output level power right output level
aux
def
sub low low mid hi mid high
subwoofer
40 400 0 +18dB
volume
min max
fader front
rear
series
ple 520p
front
LED level display
power indicator LED
equalizer controls subwoofer
frequency
control
subwoofer
boost
control
fader/volume control
defeat switch
aux input switch
sub channel
outputs
rear channel
outputs
front channel
outputs
stereo
inputs auxiliary
inputs
sub rear front line aux
OUTPUT INPUT
L R L R L R L R L R
rear
top
s
input gain adjustment
aux line equalizer center frequency switches
25
50
65
80 150
200
260
300
600
800
1000
1200
2.1k
2.8k
3.5k
4.2k
7k
9.5k
12k
15k

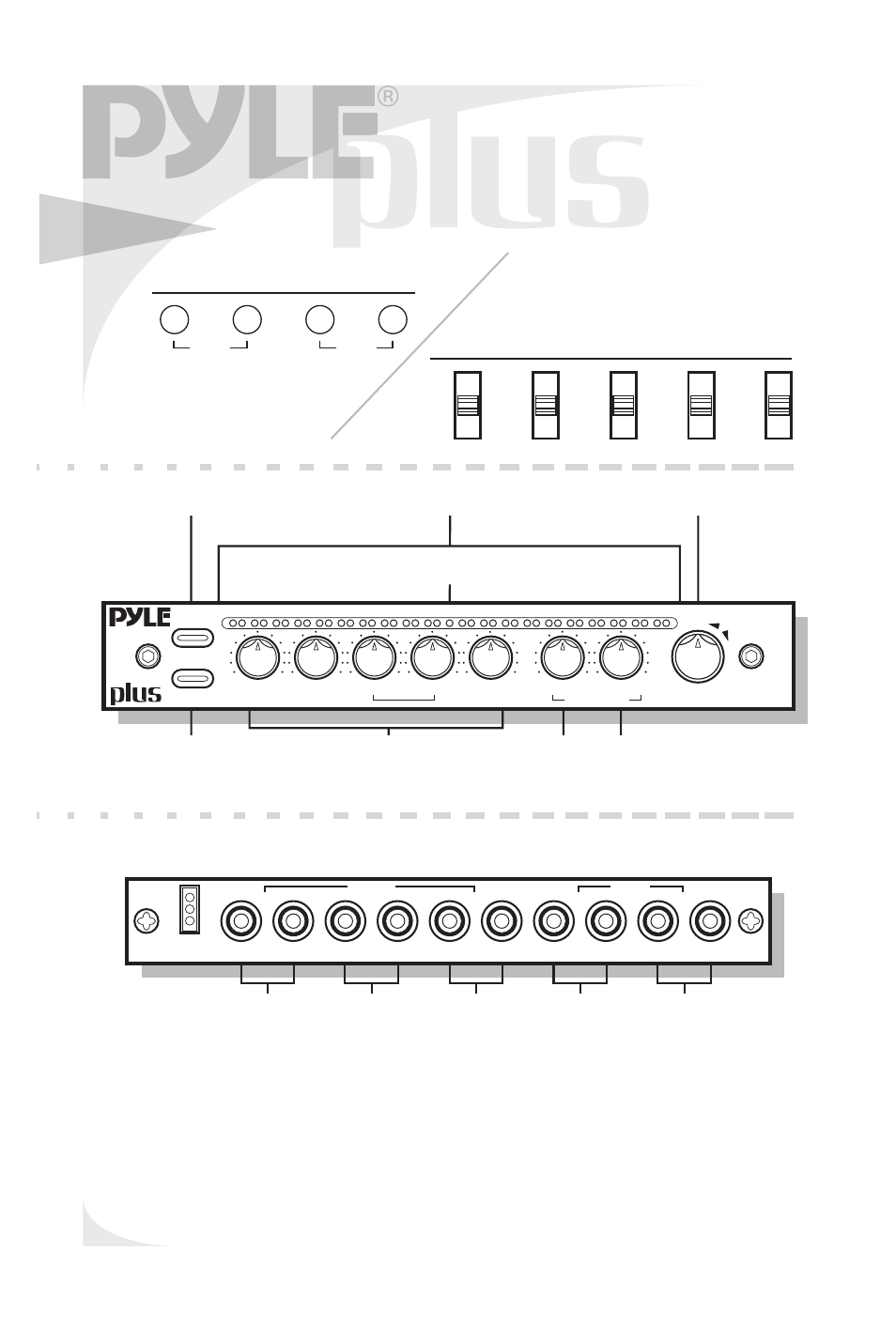

features and controls
ple520p
