Poulan QC38B User Manual

Page 6

02644

02643

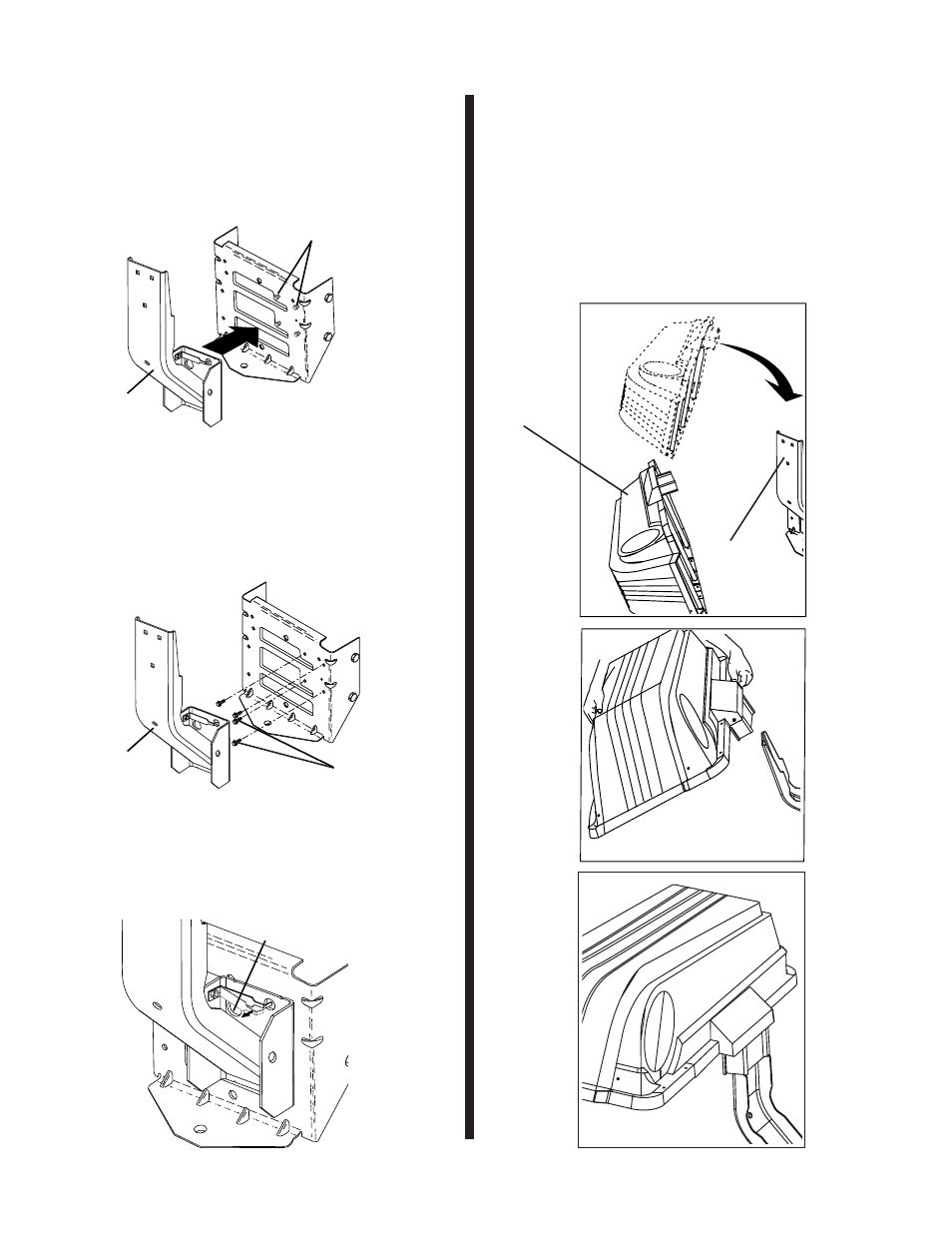

BAGGER SUPPORT ASSEMBLY
(See Figs. 2A & 2B)

NOTE: If your tractor already has four (4) shoulder bolts
installed on the rear drawbar, simply hang the support as-
sembly on the bolts. Discard the four (4) shoulder bolts
supplied and go on to Step 3 in struc tions.

SELF
TAPPING
SHOULDER
BOLTS

FIG. 2C

PULL OUT ON STOP BRACKET TO
REMOVE SUPPORT ASSEMBLY

FIG. 2B

If your tractor does not have four (4) shoulder bolts installed
on the drawbar, follow the instructions below.

Use Hardware - - GROUP "B"

1. Using the four formed holes in the drawbar, install the

four shoulder bolts as shown and tighten securely.

2. Hang the support assembly on the bolts.

SHOULDER
BOLTS

FIG. 2A

TO REMOVE THE SUPPORT ASSEMBLY (See
Fig. 2C)

1. Pull outward on the stop bracket enough to allow support

assembly to be lifted up and away from drawbar.

FIG. 3

MOUNTING COVER ASSEMBLY TO

SUPPORT ASSEMBLY (See Fig. 3)

NOTE: For ease of assembly, you may wish to obtain the
as sis tance of another person for mounting cover assembly
to tractor.
1. Position cover assembly on ground behind tractor as

shown.

2. Lift and rotate cover to align cover bracket with support

assembly.

3. Slide cover assembly down onto the support

assembly.

02646

COVER
ASSEMBLY

SUPPORT
ASSEMBLY

This manual is related to the following products:

954 14 01-10 183159
