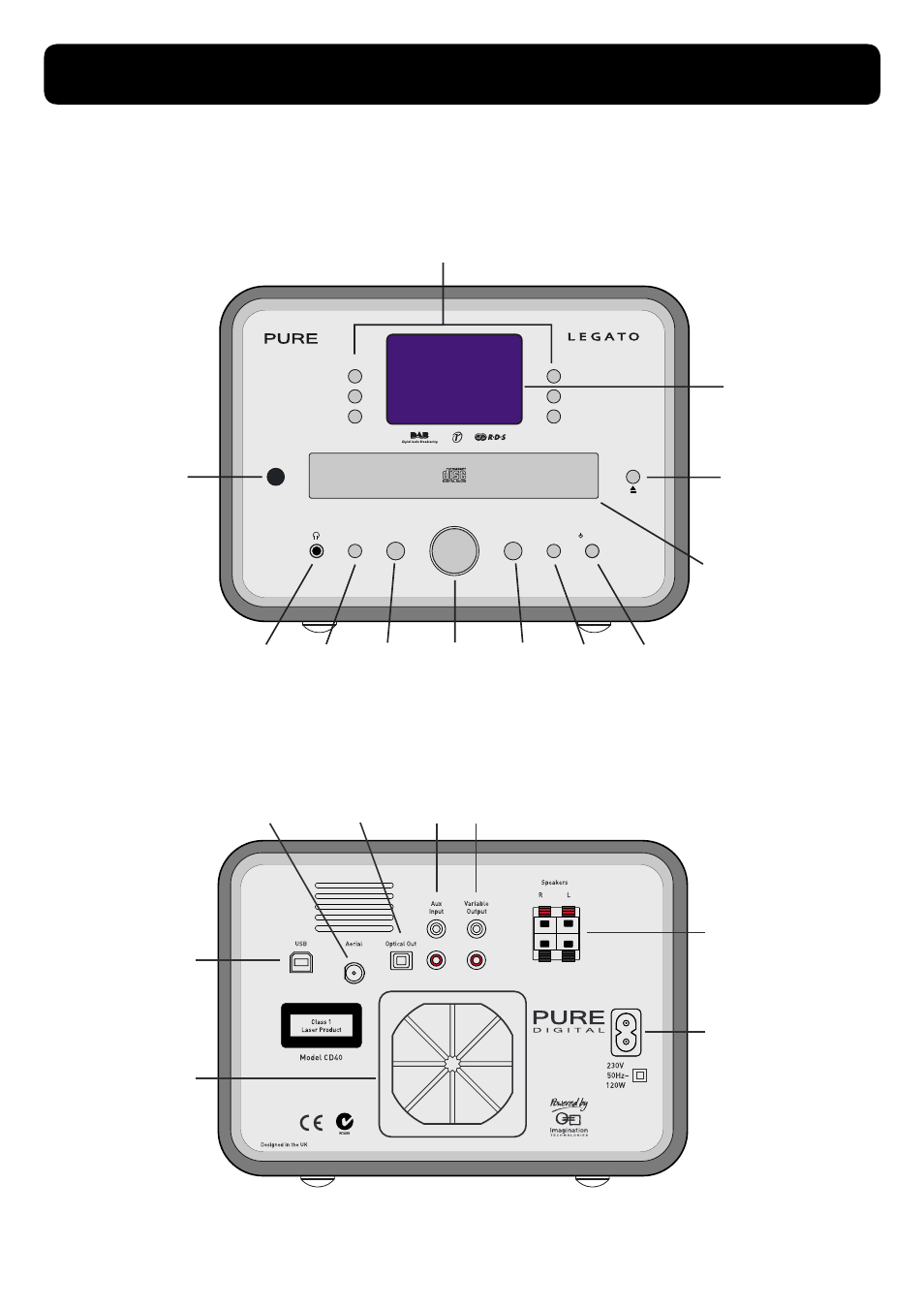

Overview diagrams
These diagrams show the function of controls, the connectors on the rear panel, the remote control and screen icons.
Getting started
Six shortcut buttons
Provide quick access to radio presets,
CD/MP3 controls and menu options
LCD screen
Backlit LCD screen with
variable contrast and brightness
CD tray
For audio and MP3 CDs
CD eject button
Opens and closes the CD tray
Power
Switches between
on and standby
Display
Switches
between
display
modes
ReVu
Enters ReVu
mode for DAB
pause and
rewind
Volume/Tuning
Turn for volume,
push and turn to
select stations,
tracks and
menu options
Mode
Switches
between
CD/DAB/FM/
AUX
Menu
Change audio
and general
setup options
Headphone
3.5 mm
headphone
socket
(mutes speakers)
Infrared receiver
Receives signal
from remote control
Power Display Menu ReVu Mode
CD/DAB/FM
Manufactured in China 12B52
Variable Output
Stereo out to recorder,
powered sub or other device
Speaker Connectors
Spring loaded connectors
Connect red socket to red on speaker
and black socket to black on speaker
Power Socket
Power lead socket
Cooling fan cover
Remove cover (pull off)
to inspect/clean
filter periodically.
USB
Type B
connector
for software
upgrades
Aux Input
Stereo input from
cassette/minidisc etc.
Optical Out
Digital output of
DAB, CD or MP3
Aerial
F-type connector
for DAB/FM aerial
Rear panel
Front panel
