Professor Tech RGM-3000 Series User Manual

Page 9

background image

Professor RGM-3000/REB-3000
GPS Module Operational Manual)

8

Mechanical Layout

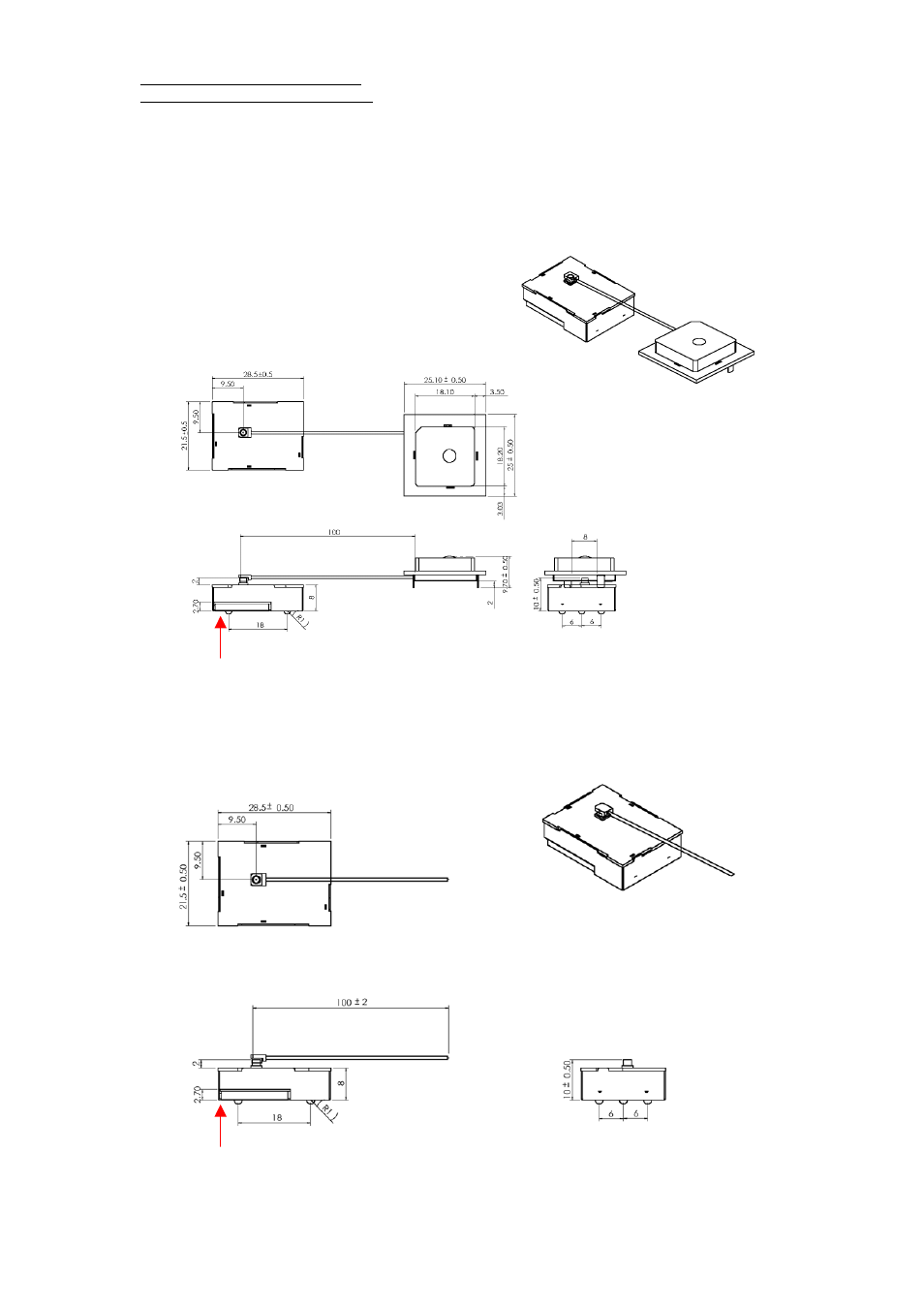

RGM-3000/REB-3000 Mechanical Layout

REB-3000XF02XX (FPC Type)

REB-3000XF10XX (FPC Type)

Pin 1

Pin1

This manual is related to the following products:

REB-3000 Series
