CAUTION: BEFORE ASSEMBLING GRASS CATCHER TO TRACTOR:
• Depress clutch/brake pedal fully and set parking brake.
• Place gearshift/motion control lever in "NEUTRAL" position.
• Place attachment clutch in "DISENGAGED" position.
• Turn ignition key "OFF" and remove key.
• Make sure the blade and all moving parts have completely stopped.
• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with plug.
(1) 3/8" Wrench
(1) 1/2" Wrench
(2) 9/16" Wrenches
(1) 1/2" Socket (1) Drive Ratchet
(1) 3" or longer Extension
(1) Short Handle
Phillips Screwdriver
THESE ARE THE TOOLS YOU WILL NEED TO
ASSEMBLE YOUR GRASS CATCHER:
NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when you are seated on the
tractor, in the operator's position.
LOWER CHUTE
ATTACHING
STRAPS
BEFORE YOU START TO ASSEMBLE THE GRASS CATCHER
Some tractor models may need minor modifi cations before you can mount the grass catcher to the tractor.
Look carefully at the drawbar on your tractor and compare to the illustrations below. If your drawbar looks
like STYLE "A" (has the upper corner ribs), your tractor is ready - proceed with the grass catcher assembly.
If your drawbar looks like STYLE "B" (does not have the upper corner ribs), go to the PREPARATION
section in this manual.

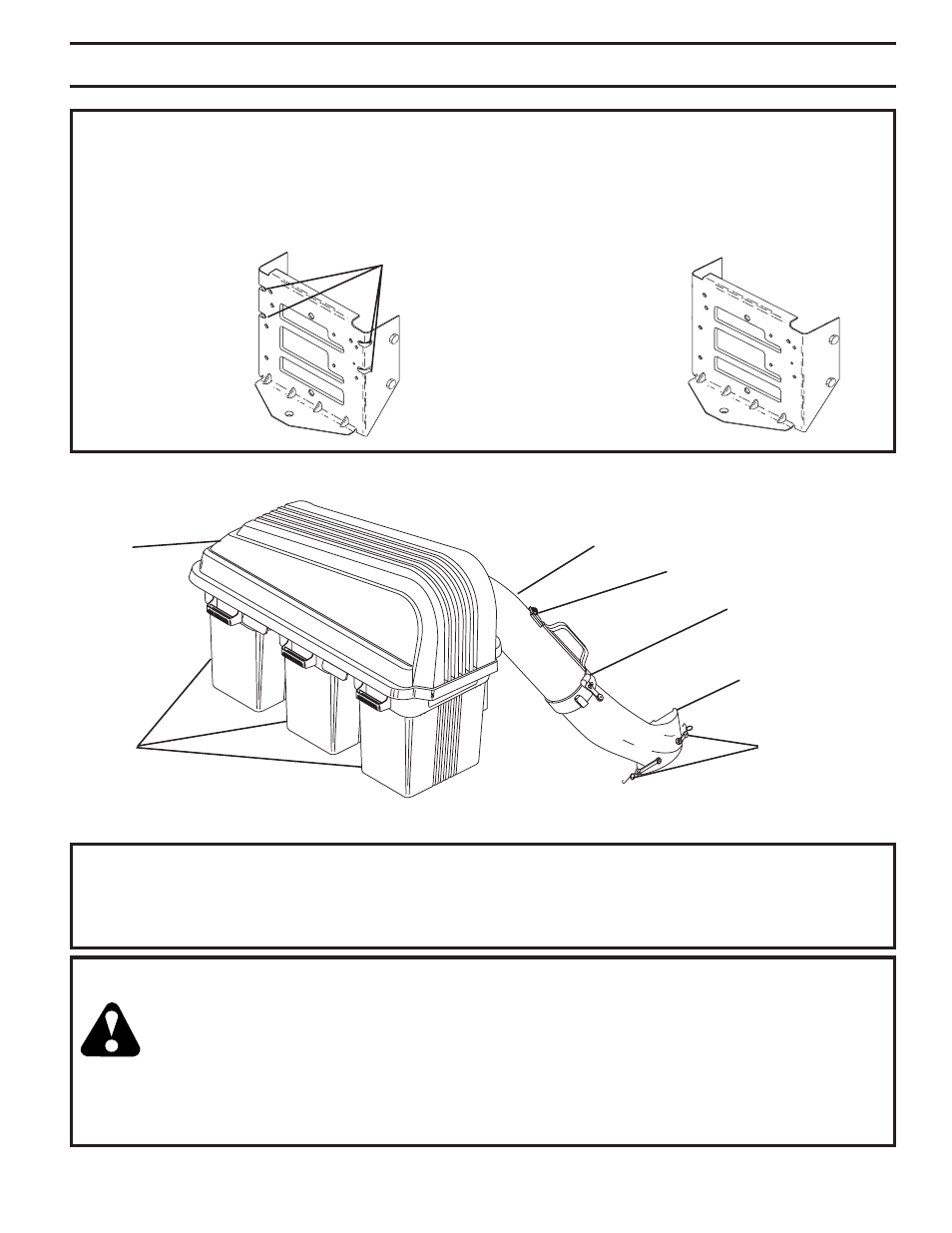

PARTS IDENTIFICATION
TRACTOR DRAWBAR
STYLE "A"
023
20
TRACTOR DRAWBAR
STYLE "B"
02321
UPPER
CORNER
RIBS
UPPER CHUTE
CHUTE LATCH
DUMP
BAG
INDICATOR
LOWER CHUTE
GRASS
CATCHER
CONTAINERS
COVER
ASSEMBLY
