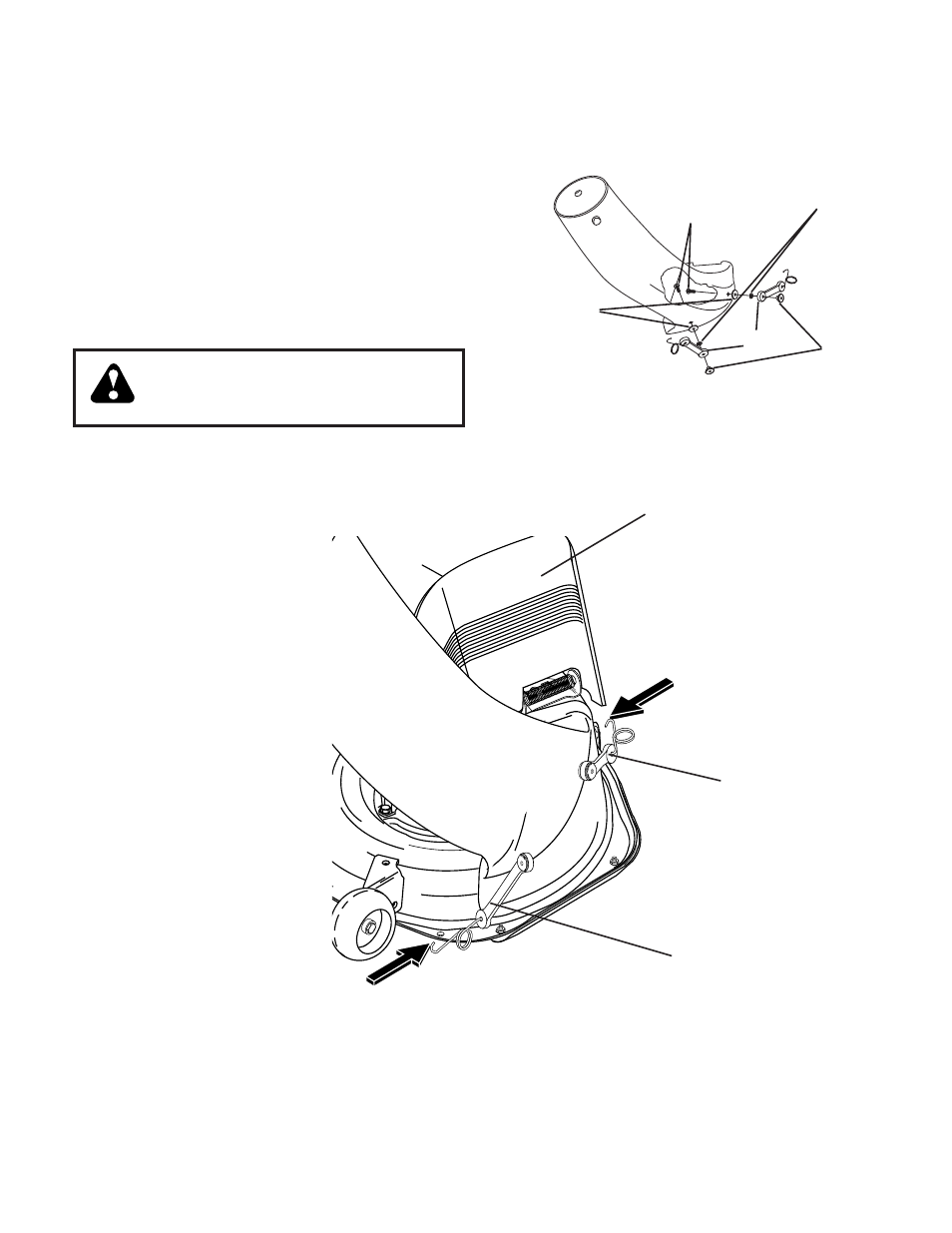

LOWER CHUTE (See Figs. 7A & 7B)
Use Hardware - - GROUP "E"
1. Press weld nut into rubber latch and install two latch
hook assemblies to lower chute using screw, washer,
and lock washer as shown.
2. Tighten hardware securely.
3. Raise and hold defl ector shield in upright position.
4. Place rear of chute over rear of mower deck opening.
Push chute down and forward to guide extended edge
of chute between discharge guard and mower deck.
5. Hook front latch into tab hole on front of mower deck.
6. Hook rear latch into fl ange hole on back of mower
deck.
7
CAUTION: Do not remove discharge
guard from mower. Raise and hold guard
when at tach ing lower chute and allow it
to rest on chute while in op er a tion.
FIG. 7A
02094 SCREW
WELD NUT
LATCH
WASHER
LOCK WASHER
REAR LATCH
FRONT
LATCH
DE FLEC TOR
SHIELD
FIG. 7B
