Other connections 09
60
En
Chapter 9:
Other connections
Caution
• Before making or changing the connections, switch
off the power and disconnect the power cord from the
power outlet. Plugging in should be the final step.
Using XM Radio
XM is North America’s number one satellite radio
company, offering an extraordinary variety of
commercial-free music, plus the best in premier sports,
news, talk radio, comedy, children’s and entertainment
programming, broadcast in superior digital audio quality
coast to coast. For more information, or to subscribe,
U.S. customers visit xmradio.com or call XM Listener
Care at 1-800-XMRADIO (1-800-967-2346); Canadian
customers visit xmradio.ca or call XM Listener Care at
1-877-GETXMSR (1-877-438-9677).
For more details, see About XM on page 127.

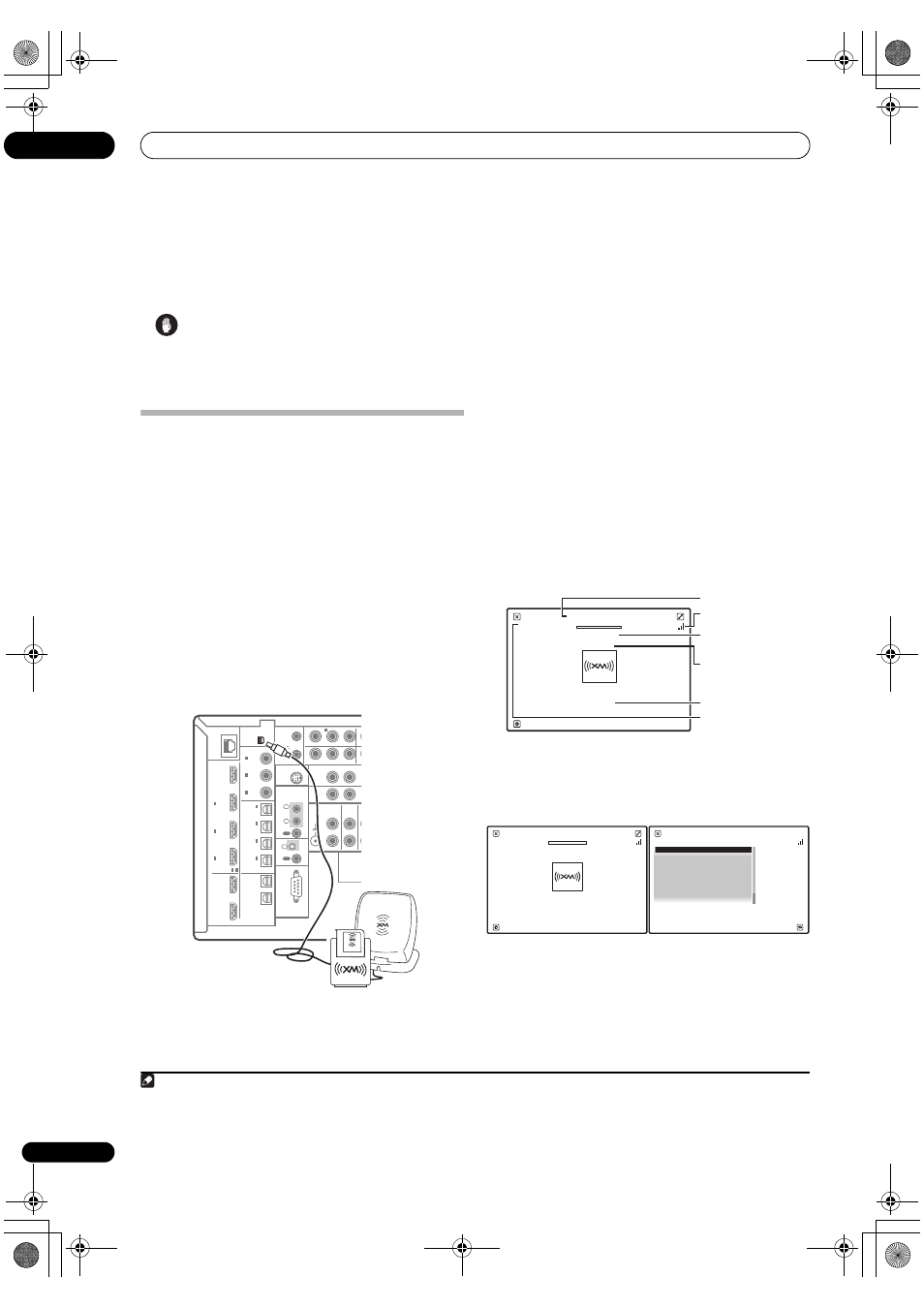

Connecting your XM Radio receiver
After purchasing an XM Mini-Tuner (sold separately), you
will also need to activate the XM Radio service to begin
receiving broadcasts.
1 Connect an XM Mini-Tuner to the XM IN jack on the
rear of this receiver.
You will also need to activate the XM Radio service.
2 Press XM to switch to the XM RADIO input.
For best reception, you may need to move the XM Mini-
Tuner antenna near a window (the southernmost window
should produce the best results).
• If after pressing XM the display shows Check XM
Tuner or Check Antenna, try disconnecting the
receiver and tuner connections, and then plugging
them back in. 1
Listening to XM Radio
After connecting, you will be able to use this receiver to
select channels and navigate categories using the on-
screen display. 2 The information displayed is as follows:
Selecting channels and browsing by genre
From the XM Channel Guide, you can browse XM Radio
channels in the order that they appear, or you can narrow
your channel search by genre.
3
1 Set the operation selector switch to SOURCE.
2 Press
/ to select a channel, then press ENTER to
listen to the XM radio broadcast.
• To browse by genre, first press CATEGORY, use
/
to select a genre, then press ENTER.
• To cancel and exit any time, press RETURN.
LAN (10/100)
DIGITAL
CAUTION:
SPEAKER IMPEDA
ATTENTIO
ENCEINTE D'IMPE
OPTICAL
RS-232C
HDMI
COAXIAL
XM
IR
CONTROL
SIRIUS
BD
IN
IN
IN
12 V
TRIGGER
IN
1
IN
2
IN 3
OUT
1
OUT
2
SOURCE
OUT
ZONE3/
SOURCE
OUT
3 1 ASSIGNABLE -
(HDMI
CTRL)
ASSIGNABLE
ASSIGNABLE
(CD-R)
IN 4
(VIDEO1)
IN 3
(DVR1)
IN 2
(TV/SAT)
IN 1
IN 3 (DVR2)
IN 2 (CD)
IN 1 (DVD)
IN 1
(OUTPUT
12V
TOTAL
50mA
MAX)
1
2
IN
1
IN
IN
2
OUT
OUT
(DVD)
P R P B Y P R
(VID
R
ZONE 2 OUT
PHONO
IN
CD
IN
SIGNAL
GND
Z
Z
L
L
R
SEE INSTR
MANUAL
SELECTAB
VOIR LE MO
D'EMPLOI
SELECTAB
XM
IN
SATELLiTE RADiO
SATELLiTE RADiO
SC-07
XM Mini-Tuner
Note
1 You can check the strength of reception in Using the XM Menu (page 61).
2 It’s easiest if you have your TV switched on to take advantage of the OSDs. You can, however, use just the front panel display to do everything
if you prefer.
3 Select 000 (RADIO ID) from the on-screen display to check the Radio ID of the XM Mini-Tuner.
Candle In the Wind
Elton John
The Blend
Preset Number Channel Number
Category : Hits
Top Menu Preset
Preset Class : A
Category
A 1 1 1 1
Signal strength
Preset class
Category
Artist name
Song name
Channel name
Candle In the Wind
Elton John
The Blend
Preset Number Channel Number
Category : Hits
Top Menu Preset
Preset Class : A
Category
A 1 1 1 1
Channel Guide Top Menu
Exit
A/V RECEIVER
0 RADIO ID
1 Preview
2 Highway 1
3 America
4 Hank’s Place
5 Fifties (50’s)
6 Sixties (60’s)
7 Seventies (70’s)
