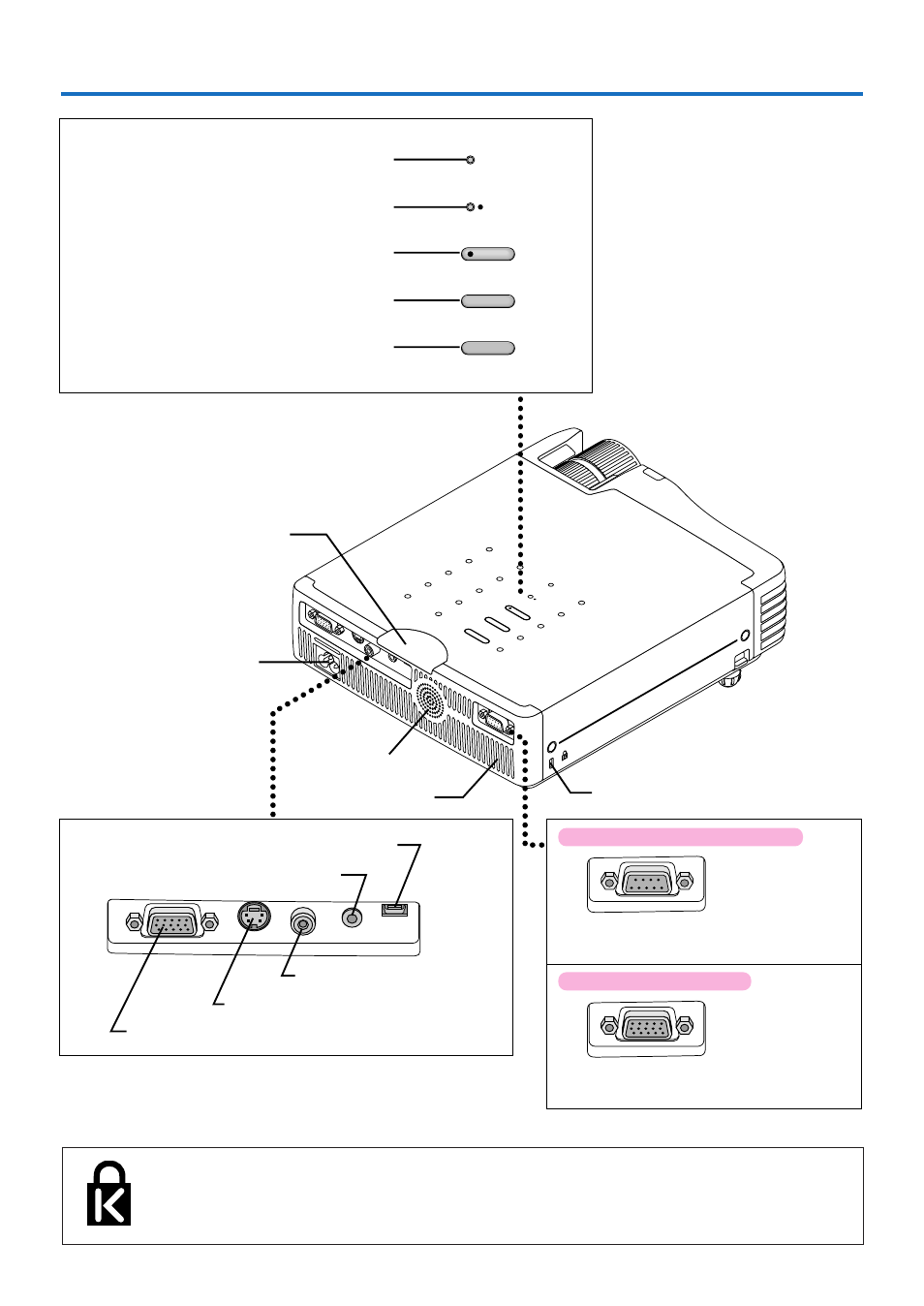

Names of the Main Unit Parts
RGB S VIDEO VIDEO AUDIO MOUSE
STANDBY
STATUS
STANDBY
AUTO
SOURCE
ST ANDBY
STATUS
ST ANDBY
AUTO
SOURCE RGB
S VIDEO
VIDEO
AUDIO
MOUSE
PC C
ON TRO
L
PC CONTROL
RGB OUT
STANDBY indicator [E-23, 61]
STATUS indicator [E-23, 61]
AUTO button [E-28]
STANDBY button [E-23]
SOURCE button [E-28]
Built-in Security Slot
This security slot supports the MicroSaver Security System manufactured by
Kensington Microware Inc.
Ventilation slots
Speaker
Built-in security slot
(See description below.)
AC IN connector [E-23]
Remote control sensor [E-13]
RGB connector [E-17, 20]
S-VIDEO connector [E-19]
VIDEO connector [E-19]
AUDIO connector [E-21]
Applicable Projector: U5-632/U5-532
MOUSE connector [E-35]
PC CONTROL connector (D-Sub 9-pin)
[E-36]
Applicable Projector: U5-512
RGB OUT connector (Mini D-sub 15-pin)
[E-22]
