14 Basic Operation Instructions
Removable Battery Pack www.silverstarmobility.com
BATTERY REPLACEMENT
MANDATORY! Battery posts, terminals, and related
accessories contain lead and lead compounds. Wear
goggles and gloves when handling batteries and
wash hands after handling.
WARNING! Always replace the battery with the
exact same type, chemistry, and amp-hour (Ah)
capacity. Refer to the specifications table in this
manual for recommended type and capacities.
To remove the battery from the pack (see figure 9):
1. Remove the battery pack from
the base.
2. Remove the 6 screws from the
bottom of the pack.
3. Separate the pack halves.
4. Disconnect the battery leads
from the battery terminals and
remove the battery.
5. Put a new battery into the bat-
tery pack.
6. Connect the battery leads: red
wire to the positive terminal (+)
and black wire to the negative
terminal (-).
7. Put the pack halves back to-
gether, reinstall the screws, and
tighten.
8. Reinstall the battery pack to the
battery pack base.

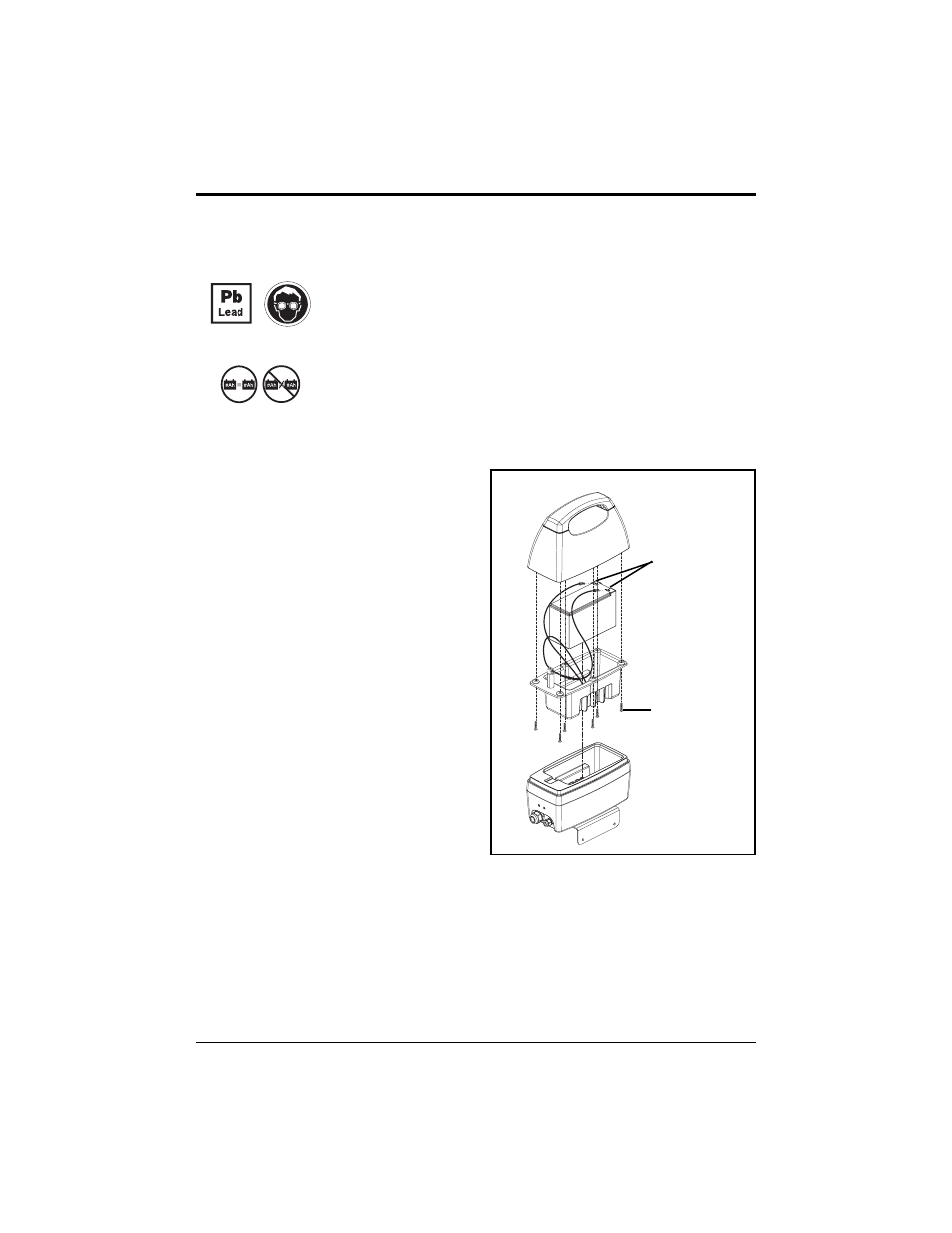

Figure 9. Battery Replacement
BATTERY LEADS
SCREW
