Basic Operation Instructions 11
www.silverstarmobility.com Removable Battery Pack

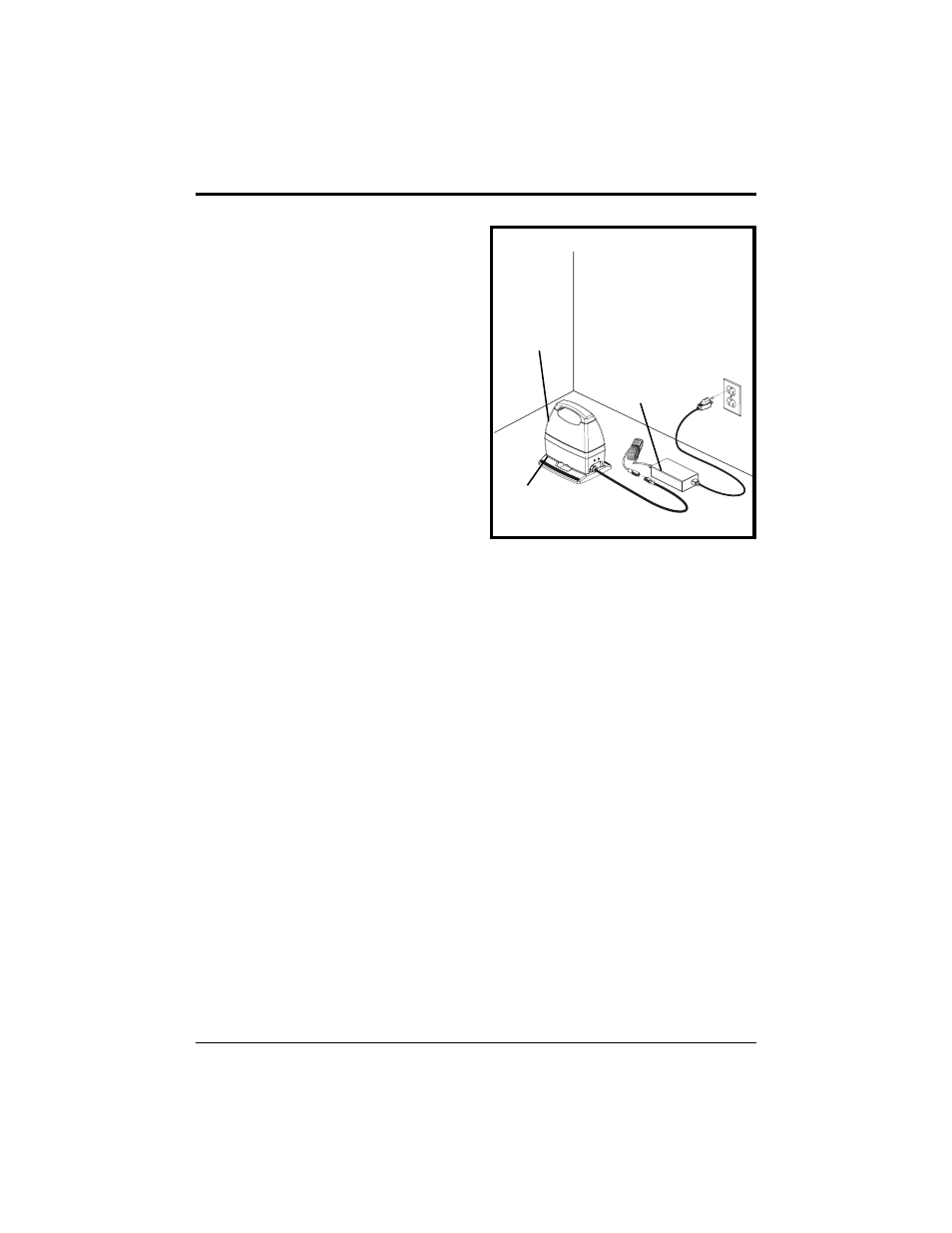

Figure 4. Battery Charging Base
BATTERY
PACK
BATTERY
CHARGER
CHARGER
BASE
In House Docking Station
Charging
Follow these steps to charge the
battery pack with the In House
Docking Station:
1. Remove the battery pack from
the battery pack base.
2. Place the charger base near a
standard electrical outlet. See
figure 4.
3. Connect the charger harness to
the power lead extending from
the charger base, then plug the
3-pronged plug into the electri-
cal outlet.
4. Place the battery pack onto the
charger base.
5. Monitor the LEDs on the side of
the charger base for charging sta-
tus. See figure 8.
