1. Introduction and Installation
13 For Fax Advantage assistance, call 1-800-435-7329.
L Make sure that the ink film is wrapped
around the blue core (
3) at least once.
6 First close the back cover securely (
1) by
pushing down on the dotted area on both
sides (
2). Then close the front cover
securely ( 3).

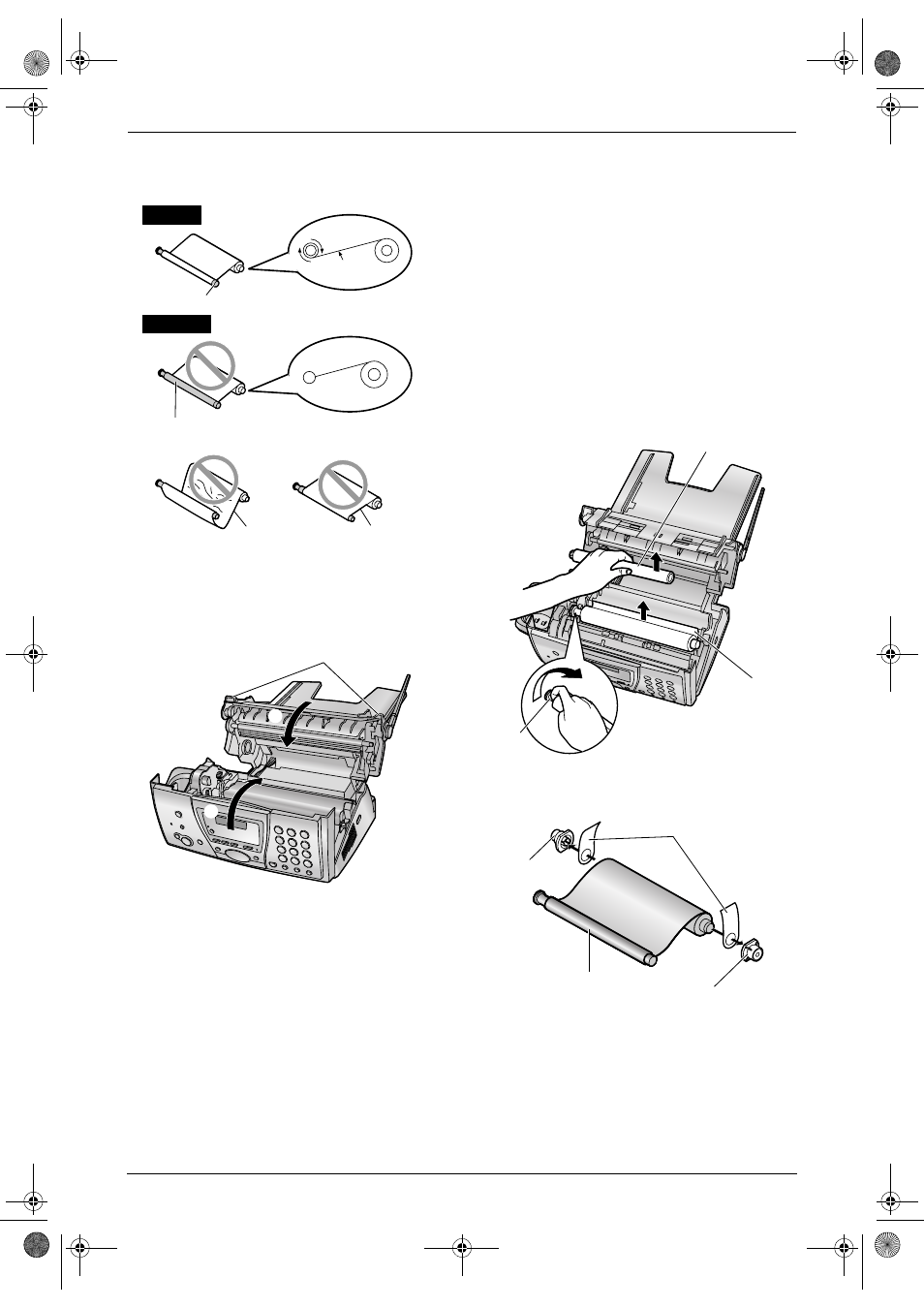

1.6.2 Replacing the ink film
The included film roll is a starter ink film. To
ensure that the unit operates properly, we
recommend the use of Panasonic replacement
film. See page 9 for accessory information.
L We cannot be responsible for any damage to
the unit or degradation of print quality which
may occur from the use of non-Panasonic
replacement film.
1 Open the covers (see steps 1 to 3 on page
12).
2 Pull out the blue gear (
1) and remove the
used ink film ( 2). Remove the used core
(
3).
3 Remove the stoppers ( 1) and tags (2) from
the new ink film (
3).
4 Insert the ink film and close the covers (see
steps 4 to 6 on page 12).
Correct
Tight
1 turn
Slack/Crease Reverse
Incorrect
The ink film is not wrapped around the
blue core.
3
2
1
3
1
2
3
1
1
3
2
