Figure 8. depth of field (hd), User’s guide, Depth of field – PSC PowerScan RF User Manual
Page 21
User’s Guide
13

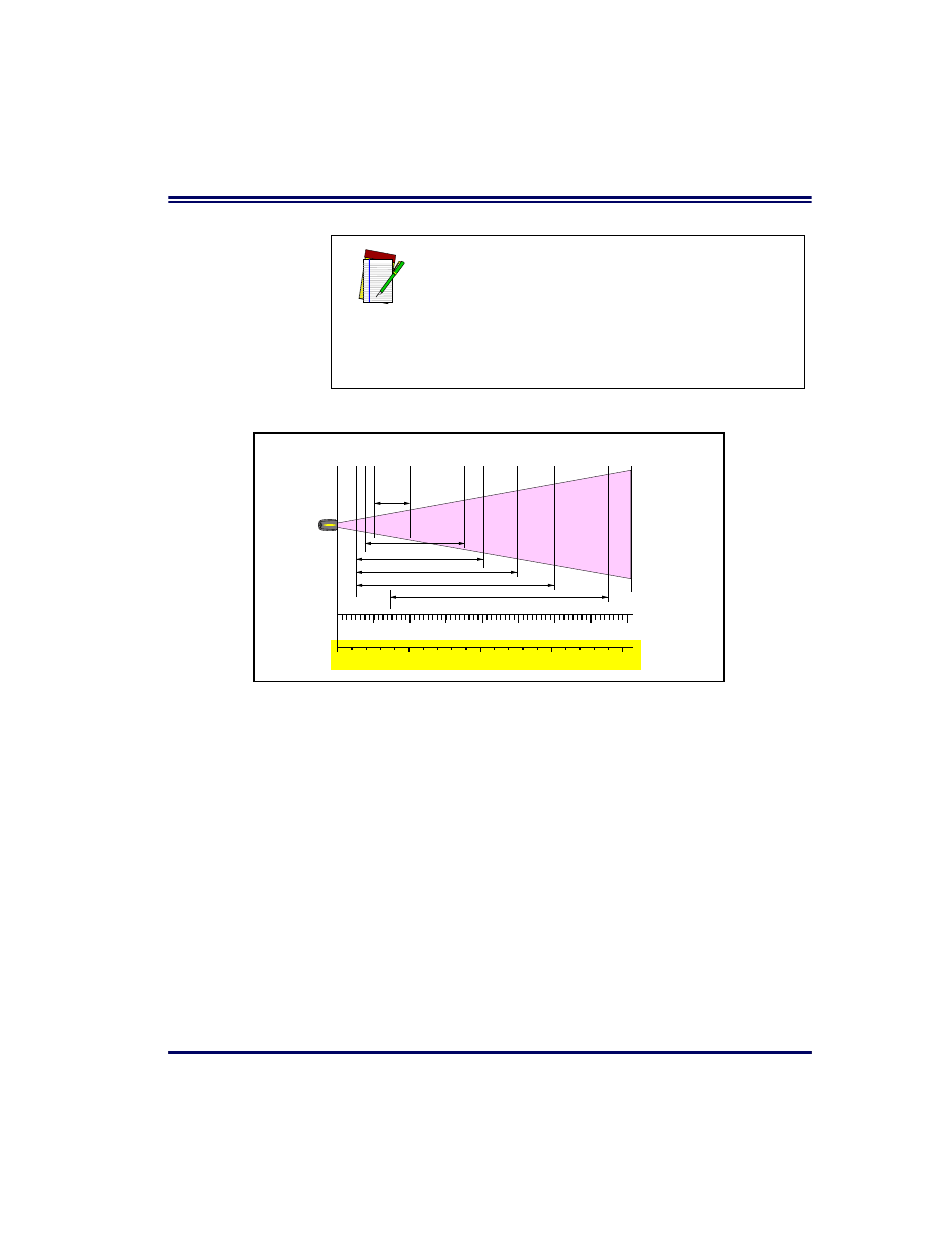

Figure 8. Depth of Field (HD)
NOTE
See the section titled, Definition of a "mil" for more
information about reading this chart. Measurements
are based on HD models set with the standard 28°
scan width (as opposed to the Half Angle setting of
14°). Reference the Programming Manual for more
information about the Half Angle feature.
Specifications are subject to change without notice.
Depth of Field
Paper Labels (HD decoded model, Code 39)
7.5 mil
5 mil
4 mil
3 mil
INCHES
FRONT OF SCANNER
0
CENTIMETERS
5
1
2
3
4
5
6
7
8
10
15
20
10 mil
20 mil
