SmartNode 4520 & 4110 Series User Manual 1 • General information
SmartNode 4520 Series router
The SmartNode 4520 Series are compact VoIP Gateway Routers that support two to eight VoIP calls and var-
ious combinations of FXS and FXO ports (see
figure 2 ).

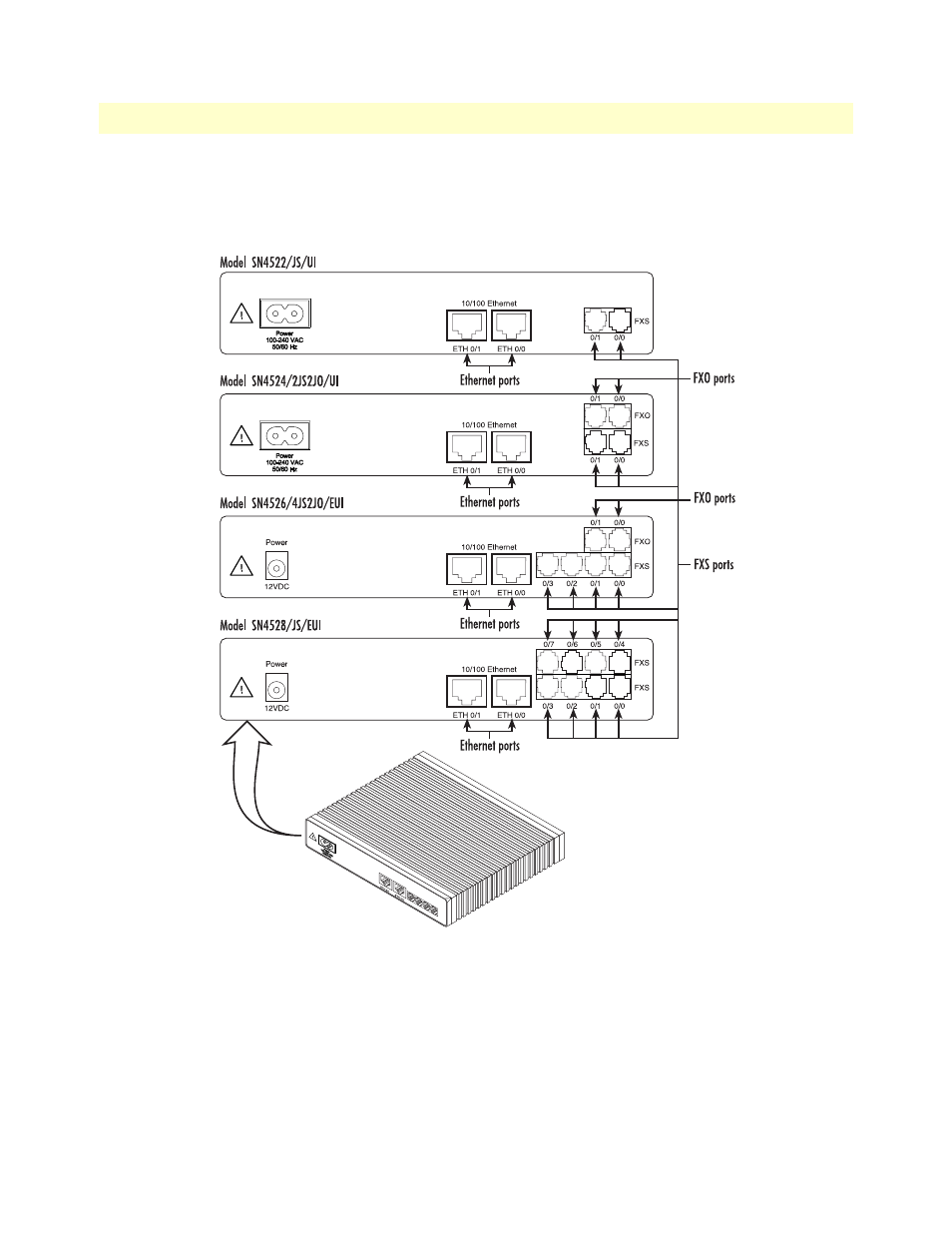

Figure 2. Examples of SN4520 Series rear panels
The following base models (each equipped with two 10/100Base-T Ethernet ports) are available:
• SmartNode 4522 (2 VoIP calls)
• SmartNode 4524 (4 VoIP calls)
• SmartNode 4526 (6 VoIP calls)
• SmartNode 4528 (8 VoIP calls)
10/100 Ethernet
0/3
0/2
0/1
0/0
Voice Ports
FXS
