Corresponding Display Indications and Buttons
This product’s display features Key Guidance Indicators. These light to indicate which of
the
5/∞/2/3, FUNCTION and AUDIO buttons you can use. When you’re in the
Function Menu (refer to next section), Initial Setting Menu (refer to page 32) or Audio
Menu (refer to page 25), they also make it easy to see which
5/∞/2/3 buttons you can
use to switch functions ON/OFF, switch repeat selections and perform other operations.

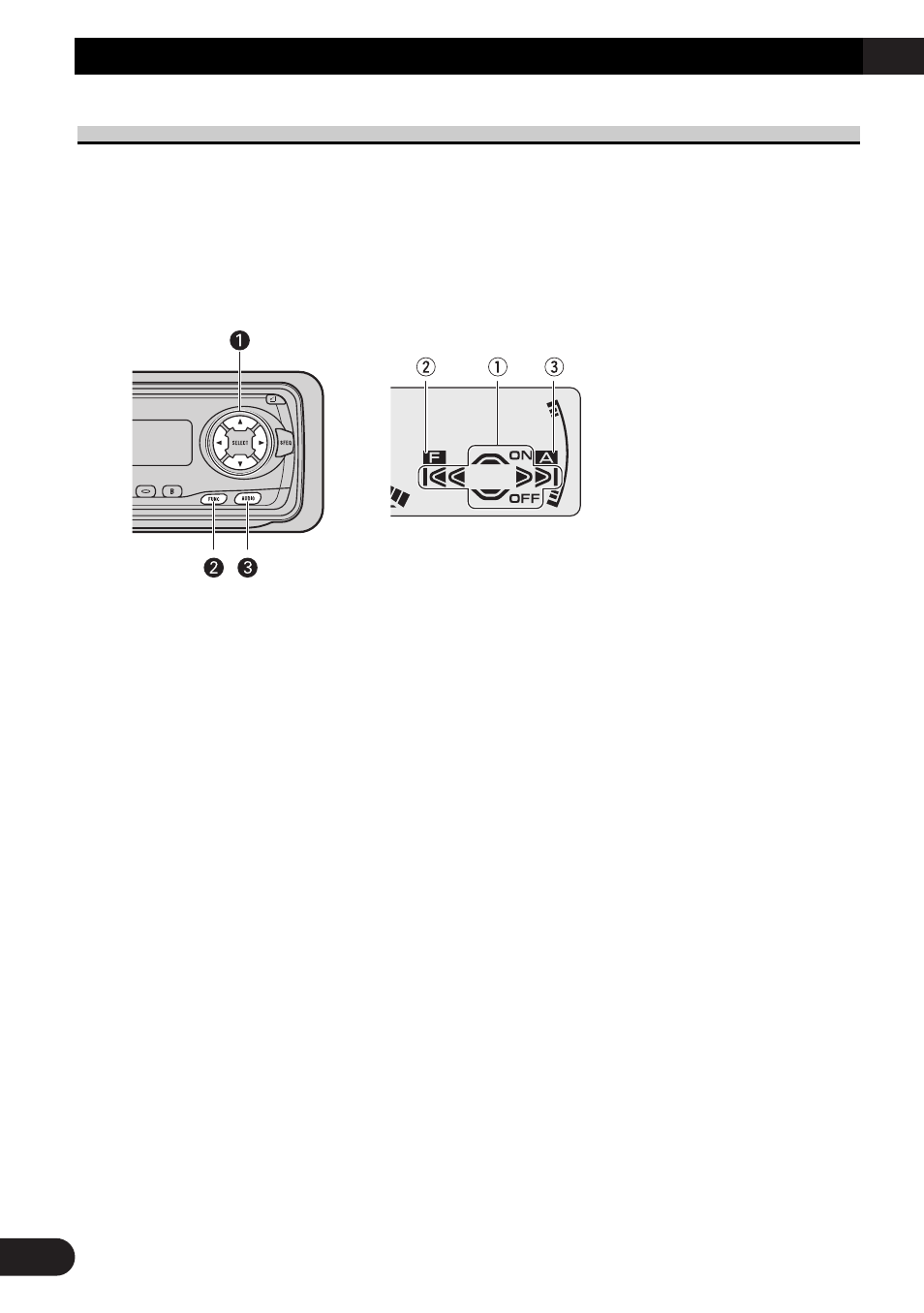

Indicator and corresponding buttons are shown below.
7 Head Unit 7 Display
When 1 is lit in the display, perform appropriate operations with the z buttons.
When 2 is lit in the display, it indicates that you are in the Function Menu or Initial
Setting Menu. You can switch between each of these menus and between different modes
in the menus using button x on the head unit.
When 3 is lit in the display, it indicates you are in the Audio Menu. You can switch
between modes in the Audio Menu using button c on the head unit.
9
Basic Operation
