Panasonic DMP-BD70V - Manual (Page 11)

RQT9412
11

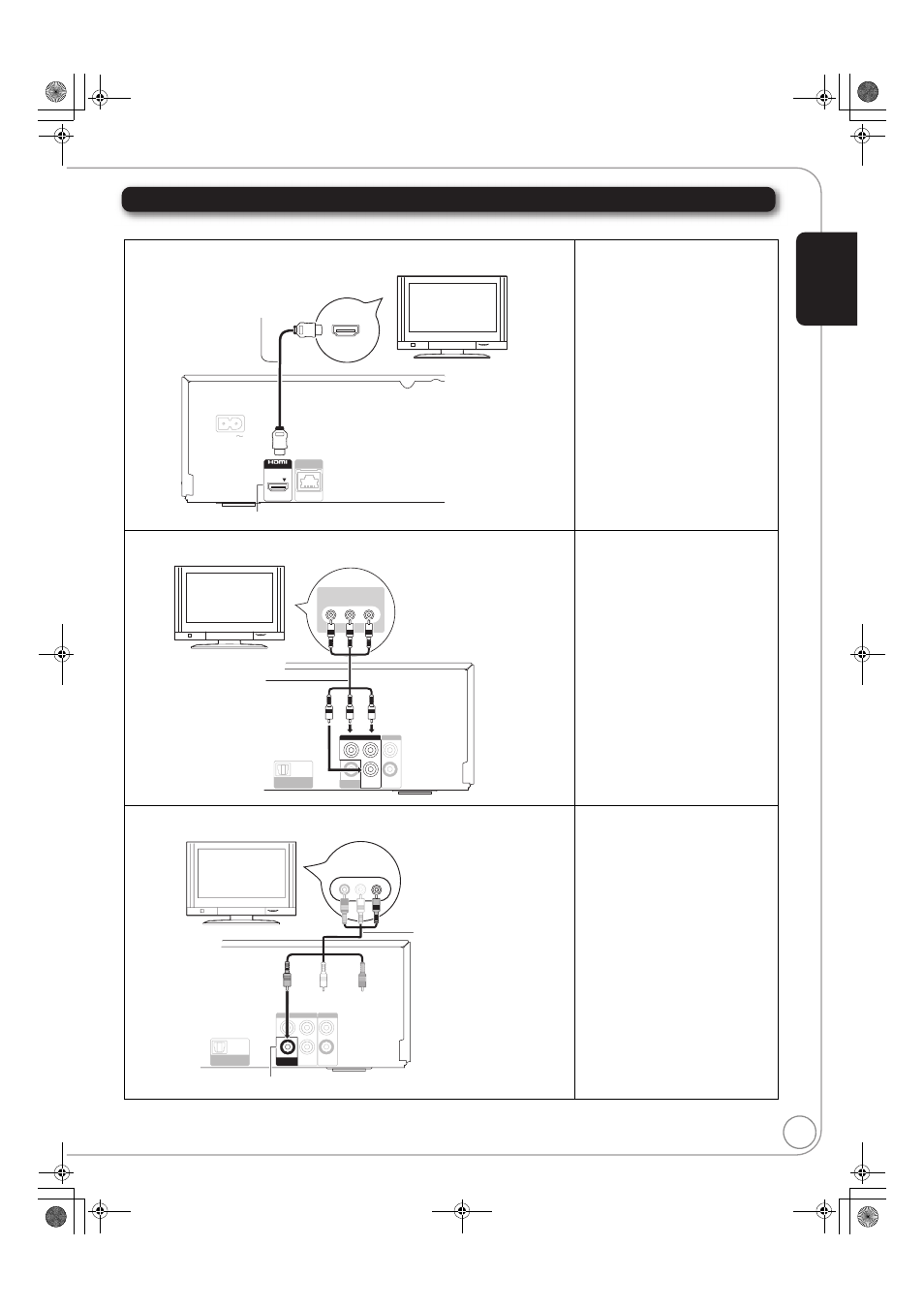

Video Connections (TV)
For audio output, refer to pages 12 and 13.
A Connecting to your TV, via HDMI AV OUT ≥“HDMI Video Mode” and “HDMI Audio
Output” should be set to “On”. (> 34)
≥The HDMI connection supports VIERA
Link “HDAVI Control” (> 28) when used
with a compatible Panasonic TV.
≥This cable provides both Video and Audio
connections.
B Connecting to your TV, via COMPONENT VIDEO OUT ≥Connect terminals of the same color.
≥Set the “Black Level Control” to “Darker”.
(> 32)
≥Using the COMPONENT VIDEO OUT
terminal, while playing DVD-Video or
VHS, the video output resolution is
limited to “480p”.
≥Be sure your TV supports at least 480p.
Set “Component Video Resolution” to
“480p”, “720p” or “1080i”. (> 34)
≥If this unit is connected to an amplifier/
receiver, etc. via an HDMI cable with
“HDMI Video Mode” set to “On” (> 34),
the video will be fixed to 480i.
C Connecting to your TV, via VIDEO OUT ≥Connect terminals of the same color.
LAN
10BASE-T/
100BASE-TX
AV OUT
AC IN
HDMI IN
HDMI AV OUT
Television HDMI cable
Back of the unit
VIDEO OUT
COMPONENT VIDEO OUT AUDIO OUT
Y L
R
P B
P R
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO IN
Back of the unit
Component Video cable
Television
VIDEO OUT
COMPONENT VIDEO OUT AUDIO OUT
Y L
R
P B
P R
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
AUDIO IN
R L VIDEO IN
VIDEO IN
Television
Audio/Video cable
(included)
VIDEO OUT Back of the unit
