Controlling the Rest of Your System
1 SOURCE
Press to switch the CD, MD, CD-R, VCR or LD player between
STANDBY and ON.
2 4
Press to return to the start of the current track. Repeated presses
skips to the start of previous tracks. When controlling a VCR, use
this button to go back channels (channel –).
3 ¢
Press to advance to the start of the next track. Repeated presses
skips to the start of following tracks. When controlling a VCR, use
this button to go forward channels (channel +).
4 8
Press to pause playback.
5 ¡
Hold down for fast forward playback.
6 1
Hold down for fast reverse playback.
7 3
Press to start playback.
8 7
Press to stop playback (on some models, pressing this when the
disc is already stopped will cause the disc tray to open).
9 Number buttons
Used to directly access tracks on a program source.
0 +10 button
Use to select tracks higher than 10. Press this button and the
remaining number to get the track (+10 + 3= track 13).
- DISC button
For a multiple CD player use this button to choose the disc. On an
MD player use it ejects the disc, on a VCR it switches between the
tuner (for watching videos) and the TV. On an LD it changes sides of
the LD.
= ¶ Recording button (VSX-709RDS only)
Use to start recording. To prevent accidental recording, this button
must be pressed twice to take effect (the second press must be
within 10 seconds of the first).
~ MENU (VSX-609RDS only)
Press to advance to the start of the next track. Repeated presses
skips to the start of following tracks.
! TOP MENU (VSX-609RDS only)
Press to return to the start of the current track. Repeated presses
skips to the start of previous tracks.
@ 2 3 5∞ & ENTER buttons (VSX-609RDS only)
These buttons can be used play or stop (etc.) many components and
also to navigate DVD menus/options. Specifically:
2 to rewind or reverse program source
3 to fast forward program source
5 to pause program source
∞ to stop program source
ENTER to play program source
5∞ pressed together to start recording (for recording devices only).
CD/MD/CD-R/VCR/LD Player Controls
This remote control can control these components after entering the proper codes or teaching the
receiver the commands (VSX-709RDS only). (see p.22 – 24)
Use MULTI CONTROL buttons to put the remote control in the stated mode.

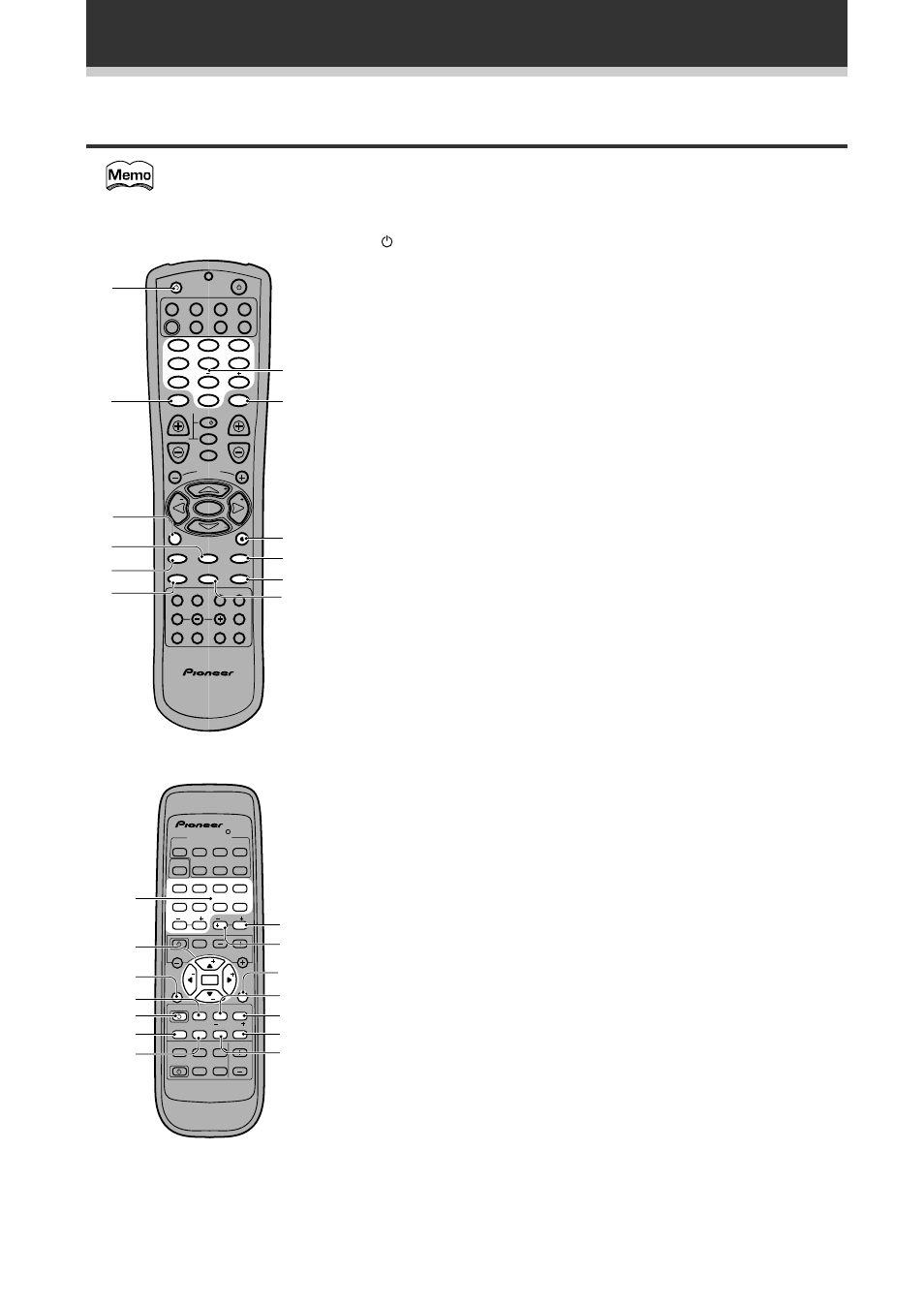

VSX-709RDS
