10

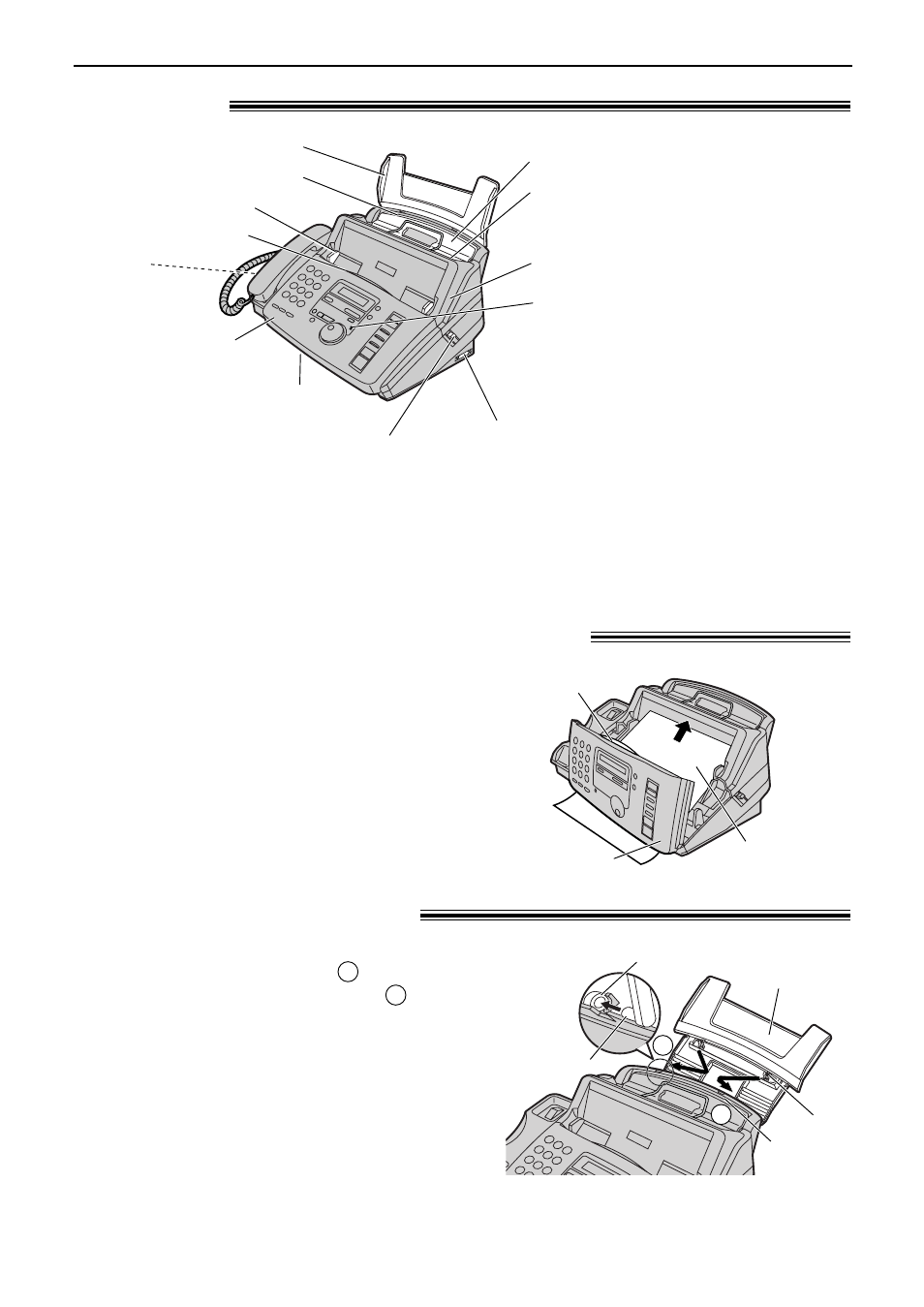

Finding the Controls / Setup

Overview

!

Back cover open button

Back cover

Tension bar

Recording paper entrance

Document entrance

Speaker
(Left side of the
handset cradle)

Document guide(s)

Front cover

Document exit

Recording paper exit

Up to 30 sheets of printed

paper can be held.

Recording paper load

Microphone

(KX-FP185/KX-FM189 only)

To talk with the other party

when using the speakerphone.

To record greeting messages

and memo messages.

Serial interface connector

(KX-FM189 only)

To connect your PC with a RS232C

cable. For system requirements, see
the PANA LINK Software Guide.

Removing the information leaflet

!

1

Open the front cover by pulling up the centre
part.

2

Remove and read the information leaflet.

3

Close the front cover securely.

Information
leaflet

Front cover

Centre part

Note:

The document will be ejected from the front of the unit. Install the unit on a desk or floor with a smooth
surface and do not place anything in front of the unit.

* The pictured model is KX-FM189.

Recording paper load

!

Insert one tab on the recording paper load into
one slot on the back of the unit (

) and then

insert the other tab into the other slot (

).

2

1

Slot

Recording
paper load

Slot

Tab

1

1

Tab

2

Note:

Do not place the unit in areas where the recording
paper load may be obstructed by a wall, etc.
