Installation Instructions Page 7
WMK-027

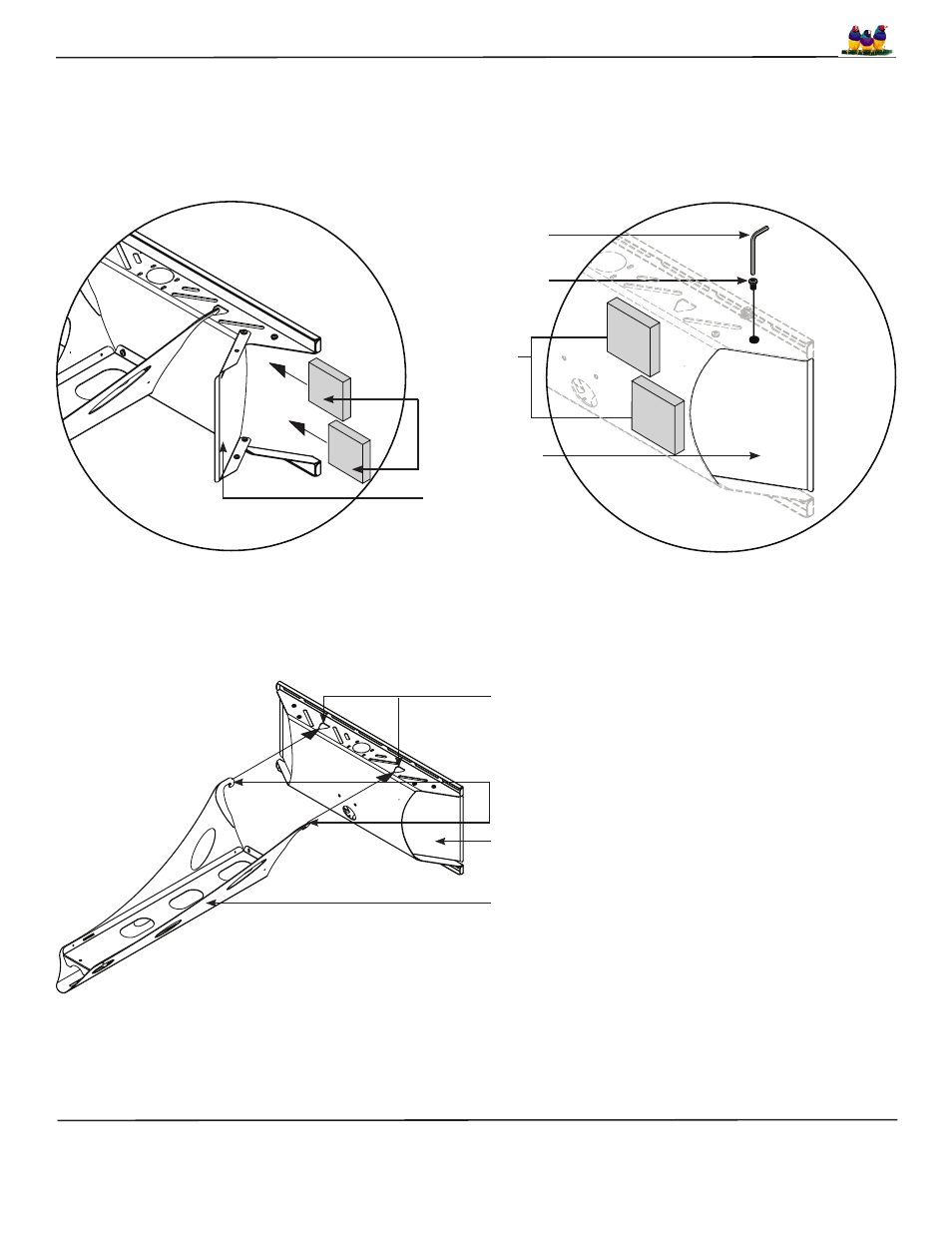

Utilizing the Storage Feature
The storage feature may be used to store electronic components. There is an accessible door on each side of the storage enclosure. It may
be securely held shut with the use of four (4) M5 x 12mm security head screws. It may be easiest to pre-wire all cables down the arm (or
extension) at this time (see Page 11).
Electronic
Components
Electronic
Components
Door
Door
Security
Wrench
M5 x 12mm
Security Screw
Step 1. Open the storage door that is located on the side of
the wall plate.
Step 2. Place the electronic components inside the storage
enclosure.
Step 3. Make all electronic connections at this time.
Step 4. Close the storage door and secure using two
(2; 1 upper and 1 lower) M5 x 12mm security
head screws. Tighten using a security wrench.
Repeat this process for the other side as well.
Attaching the Projector Arm
Step 1. Locate the mounting hook cutout on the top of the wall plate.
Step 2. Tilt the arm slightly and gently insert the mounting hooks into the mounting hook cutouts.
Step 3. Slowly lower and let the projector arm rest against the wall plate.
Mounting Hook Cutout
Mounting Hooks
Wall Plate
Projector Arm
