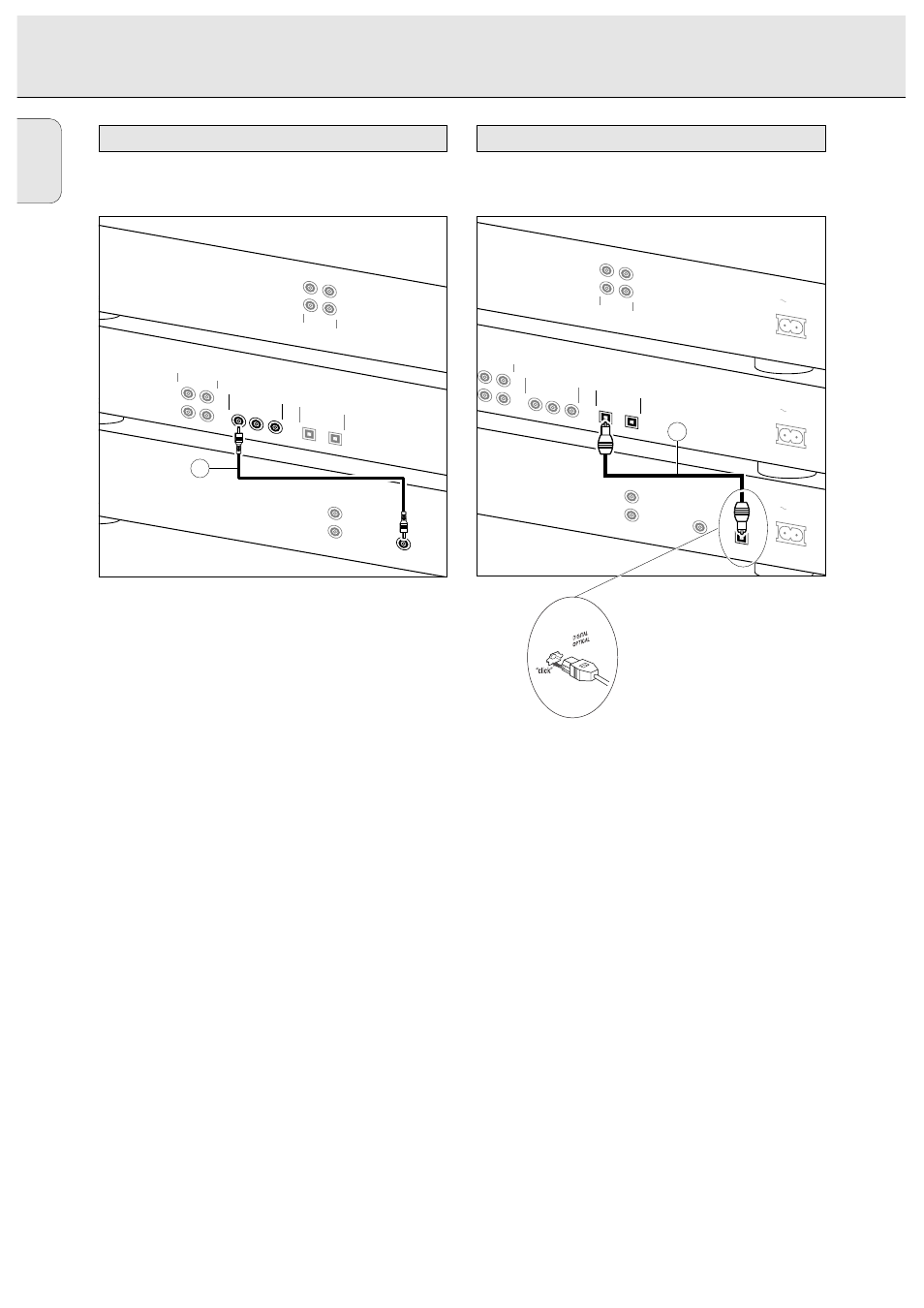

Digital coaxial connection is only required in case you wish to
record from a CD player with a digital coaxial output.
Use the digital coaxial cable supplied.
1 For recording, connect the cable 3 between the DIGITAL
IN-1 socket on the CD recorder and the DIGITAL OUT-socket
of a CD player.
• If required you can connect an extra digital device (e.g.a
DAT or DCC recorder) to the DIGITAL IN 2 socket of the
recorder.
Note: Your CD recorder is equipped with a digital coaxial
output (DIGITAL OUT). This output can be used for
digital playback.
Digital optical connection is only required in case you wish to
record from a CD player with a digital optical output.
When connecting the Digital
Optical cable, make sure it
is fully inserted until
there is a click.
1 Remove the dust caps from the digital optical connection.
(We recommend you save the cap).
2 For recording, connect a fibre-optic cable 4 between the
digital OPTICAL IN socket of the CD recorder and the
digital-optical output of a CD player.
Note: Your CD recorder is equipped with a digital OPTICAL
output. This output can be used for digital playback.
