LB1500R / LB1500RTC / LB1503R User’s Guide (020-0463-01A)

7

Start Your Installation

Connecting the Display (Figure 3)

To setup this display, please refer to the following figure and procedures.

1. Be sure all equipment is turned off.

2. Connect the DC power cord to the power connector; plug one end of the AC

power cord into the power adapter, and the other end into an electrical outlet

(n).

3. Connect the VGA signal cable from display VGA input connector to the 15-pin

connector of your host computer and tighten the screws ( ).

4. For LB1503R connect the DVI signal cable from display DVI input connector

to DVI connector of your host computer and tighten the screws ( )

5. For LB1503R connect the composite video cable from display video input to

video output source ( ).

6. For LB1500RTC do not connect the USB cable until touchscreen software

driver is installed! ( )

7. Turn on your computer, display and or video source.

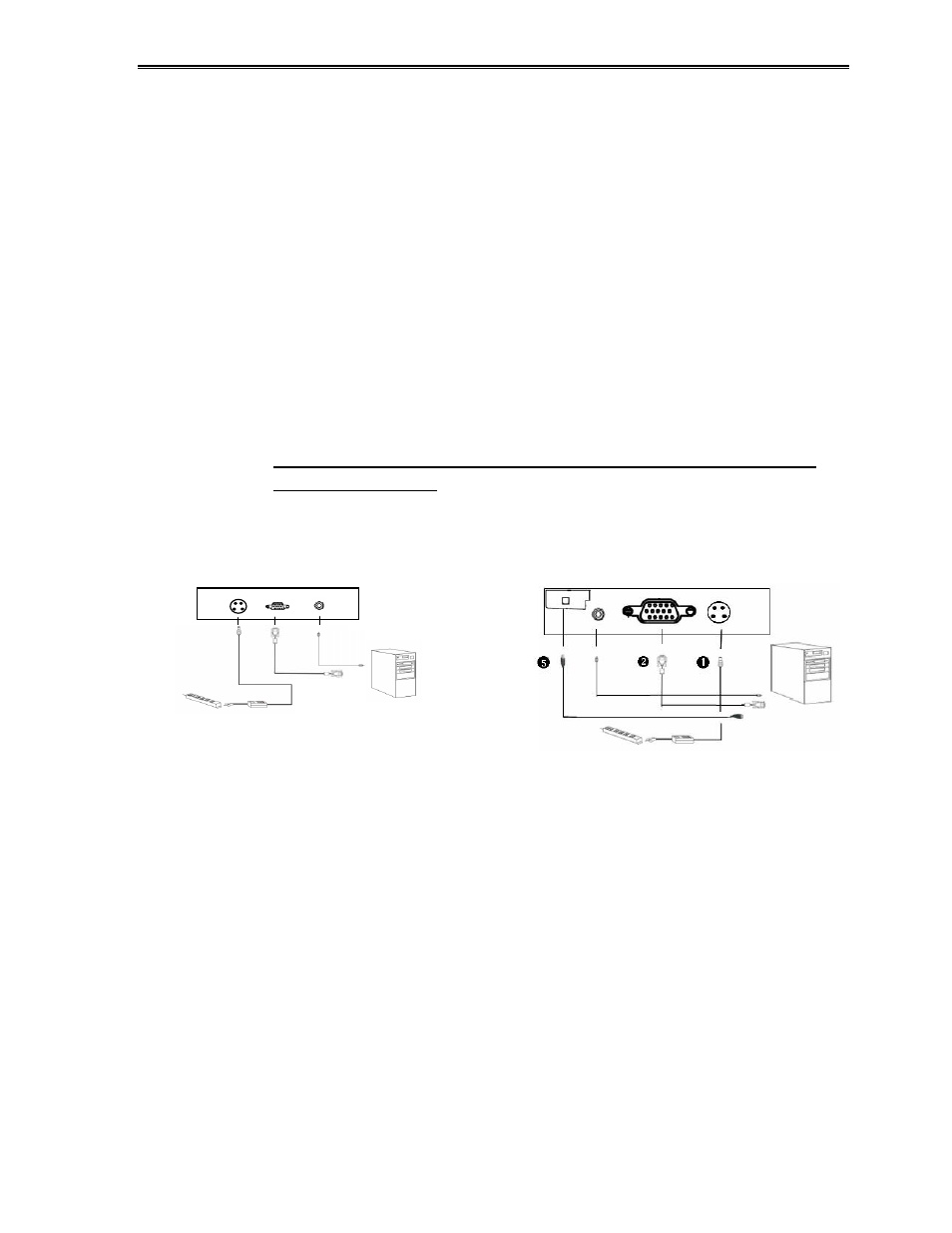

Figure 3. The LB1500R Connections

Figure 3. The LB1500RTC Connections
