English, Exploded parts diagram – Polaris SUPER TURTLE 165 User Manual
Page 9
www.polarispool.com
20
26
12
10
15
17
27
17
Serial Number
2
29
14
18
25
25
30
28
13
11
13
15
17
21
22
23
19
24
16
16
1a
31
32
1b
13
5
4
3
6
7
8
9

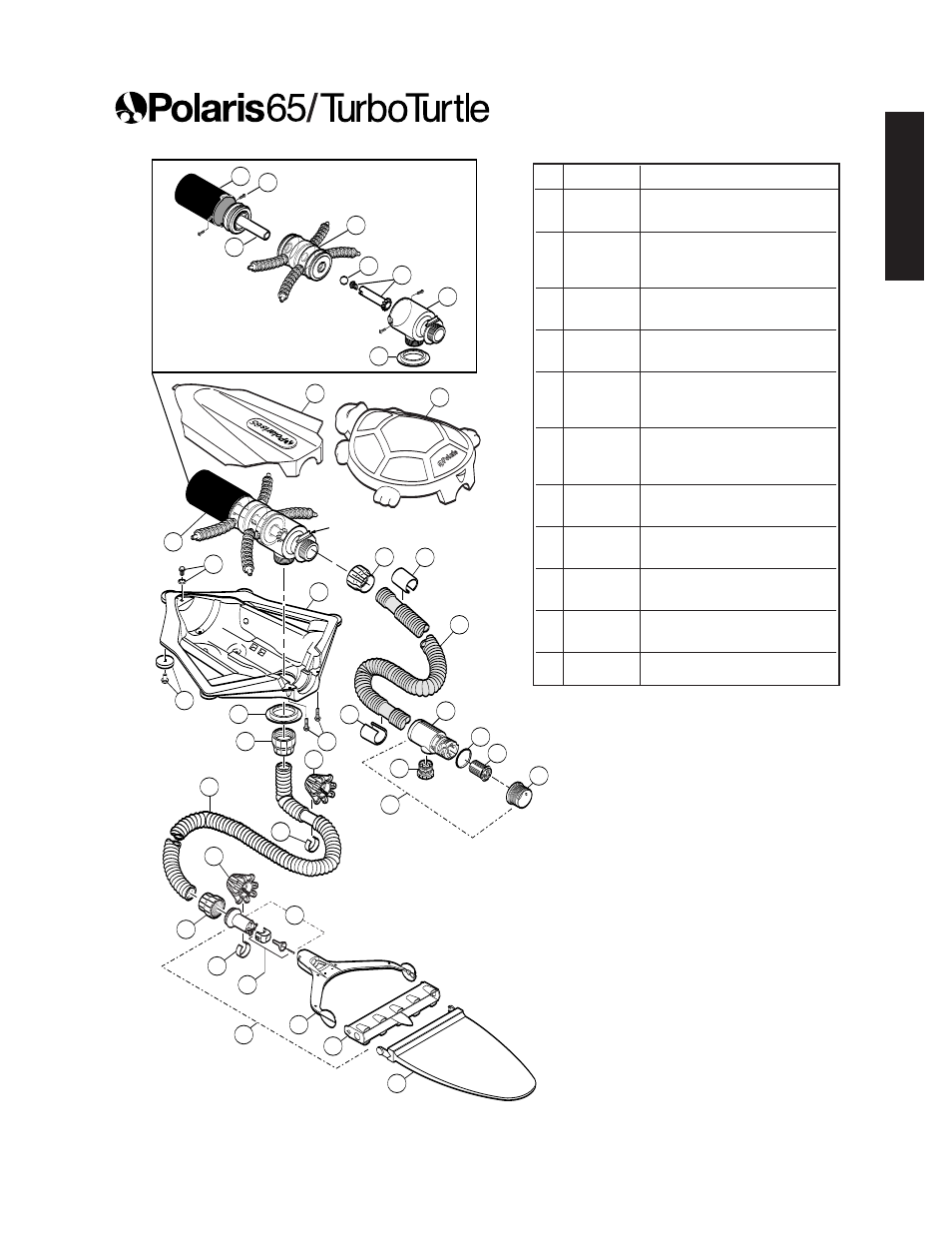

Exploded Parts Diagram
English
No.
Part #
Description
Qty.
1a
6-308-00
Surface Module Top, Blue
1
1b
6-309-00
Turtle Top
1
2
6-400-00
Mechanism
1
3
6-407-00
Cylinder
1
4
6-413-00
Screw, Mechanism, #6 x 5/16"
4
SS Sheet Metal, Blunt-end
5
6-411-00
Piston Assembly
1
6
6-409-00
Center Chamber Assy
1
7
6-403-00
Randomizer Ball
1
8
6-406-00
Filter Connector/Randomizer Tube Kit
1
9
6-408-00
Connector Chamber
1
10
6-507-00
Drain Plug Assembly
1
11
6-305-00
Body Bottom Assembly
1
12
6-301-00
Body Bottom Wheel Kit
5
13
**
Support Collar
1
14
6-302-00
Screw, Top, #10 x 3/4" SS
Sheet Metal, Pan Head
2
15
6-104-00
Hose Connector, Female
3
16
6-107-00
Wheel Cage Assembly
6
17
6-110-00
Hose Weight
6
18
6-106-00
Sweep Hose Complete, 7 Ft.
1
19
6-212-00
Jet Sweep Assembly
1
20
6-116-00
Jet Body Assembly
1
21
6-119-00
Jet Body Ball Kit
1
22
6-211-00
Jet Sweep Harness
1
23
6-210-00
Jet Sweep Head
1
24
6-206-00
All-Purpose Bag*
1
25
6-222-00
Float
24
26
6-225-00
Float Hose, 24 Foot
1
27
6-508-00
UWF Connector Assembly
1
28
6-502-00
Quick Disconnect, UWF
1
29
6-503-00
Pressure Relief Valve
1
30
6-505-00
O-ring, UWF/QD
1
31
6-504-00
Filter Screen, UWF/QD
1
32
6-500-00
Universal Wall Fitting (UWF)
1
*Wear items not covered by warranty.
