Page 8
www.polarispool.com
English
12
14
10
16
17
25
35
30
31
32
29
28
33
Serial Number
2
25
15
34
11
15
18
26
15
1a
27
20
15
17
21
22
23
19
24
16
13
5
4
3
6
7
8
9
1b
13

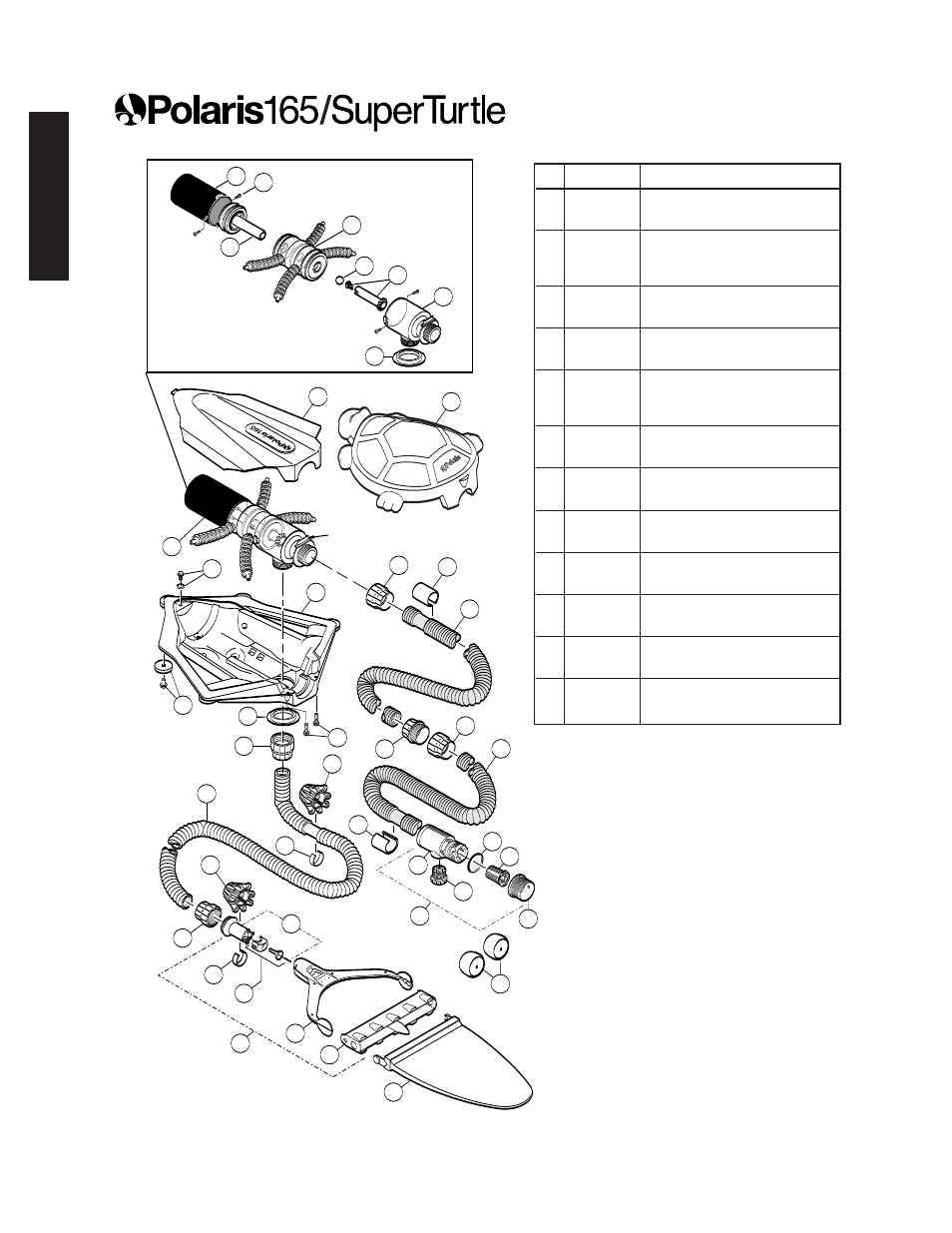

Exploded Parts Diagram
No.
Part #
Description
Qty.
1a
6-306-00
Surface Module Top, Granite
1
1b
6-309-00
Turtle Top
1
2
6-400-00 Mechanism
1
3
6-407-00
Cylinder
1
4
6-413-00
Screw, Mechanism, #6 x 5/16"
4
SS Sheet Metal, Blunt-end
5
6-411-00
Piston Assembly
1
6
6-409-00
Center Chamber Assy
1
7
6-403-00
Randomizer Ball
1
8
6-406-00
Filter Connector/Randomizer Tube Kit
1
9
6-408-00
Connector Chamber
1
10
6-507-00
Drain Plug Assembly
1
11
6-305-00
Body Bottom Assembly
1
12
6-301-00
Body Bottom Wheel Kit
5
13
**
Support Collar
1
14
6-302-00
Screw, Top, #10 x 3/4" SS
Sheet Metal, Pan Head
2
15
6-104-00
Hose Connector, Female
4
16
6-107-00
Wheel Cage Assembly
9
17
6-110-00
Hose Weight
9
18
6-114-00
Sweep Hose Complete, 10 Ft.
1
19
6-212-00
Jet Sweep Assembly
1
20
6-116-00
Jet Body Assembly
1
21
6-119-00
Jet Body Ball Kit
1
22
6-211-00
Jet Sweep Harness
1
23
6-210-00
Jet Sweep Head
1
24
6-206-00
All-Purpose Bag*
1
25
6-222-00
Float
24
26
6-225-00
Float Hose, 24 Foot (Hose only)
1
27
6-508-00
UWF Connector Assembly
1
28
6-502-00
Quick Disconnect, UWF
1
29
6-503-00
Pressure Relief Valve
1
30
6-505-00 O-ring,
UWF/QD
1
31
6-504-00
Filter Screen, UWF/QD
1
32
6-500-00
Universal Wall Fitting (UWF)
1
33
10-107-00
Eyeball Regulator
2
34
6-221-00
Float Hose Extension Kit, 8 Ft
1
35
6-103-00
Hose Connector, Male
1
* Wear items not covered by warranty.
