1RWH

When a subwoofer is connected to this unit instead of a
rear right speaker, do not connect the rear left speaker
lead to anything. For details, refer to the Initial Setting in
this Manual.

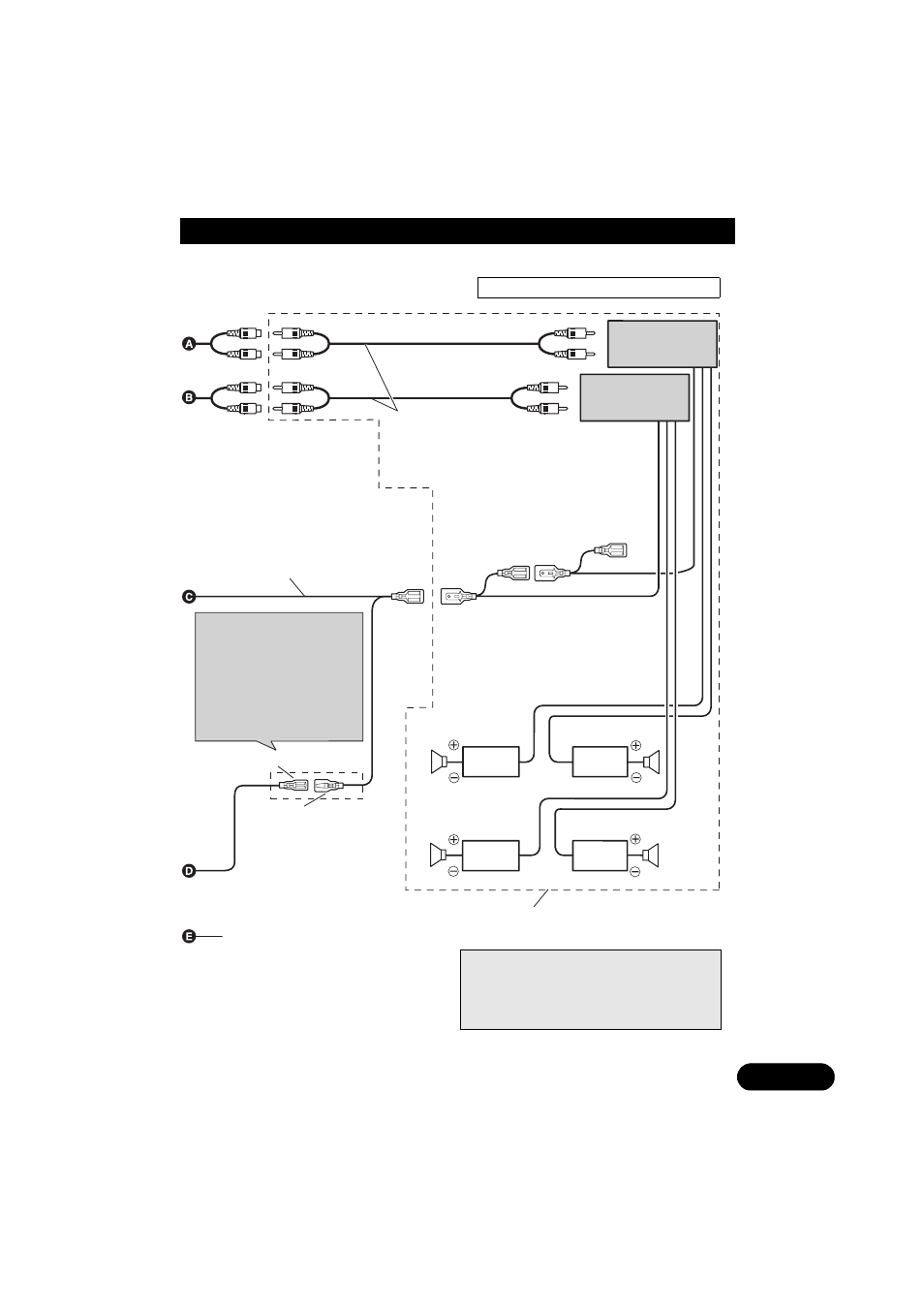

Perform these connections when using a different amp
(sold separately).

Blue/white
To system control terminal
of the power amp
(max. 300 mA 12 V DC).

Power amp

(sold separately)

Blue/white (7)*
To Auto-antenna relay
control terminal (max.
300 mA 12 V DC).

Connecting cords
with RCA pin plugs
(sold separately)

System remote control

Subwoofer

This product conforms to new cord colors.

Speaker leads
White

:Front left

White/black :Front left

Gray

:Front right

Gray/black :Front right

Green

:Rear left

Ãor Not Used

Green/black :Rear left

or Not Used

Violet

:Rear right

or Subwoofer

Violet/black :Rear right

or Subwoofer

Subwoofer Output or
Non Fading Output

Power amp

(sold separately)

Front speaker

Blue/white (6*)

The pin position of the ISO
connector will differ
depending on the type of
vehicle. Connect 6* and 7*
when Pin 5 is an antenna
control type. In another type
of vehicle, never connect 6*
and 7*.

Front output
