LC1200R User’s Guide 021-0183-00 Rev A 21 of 29

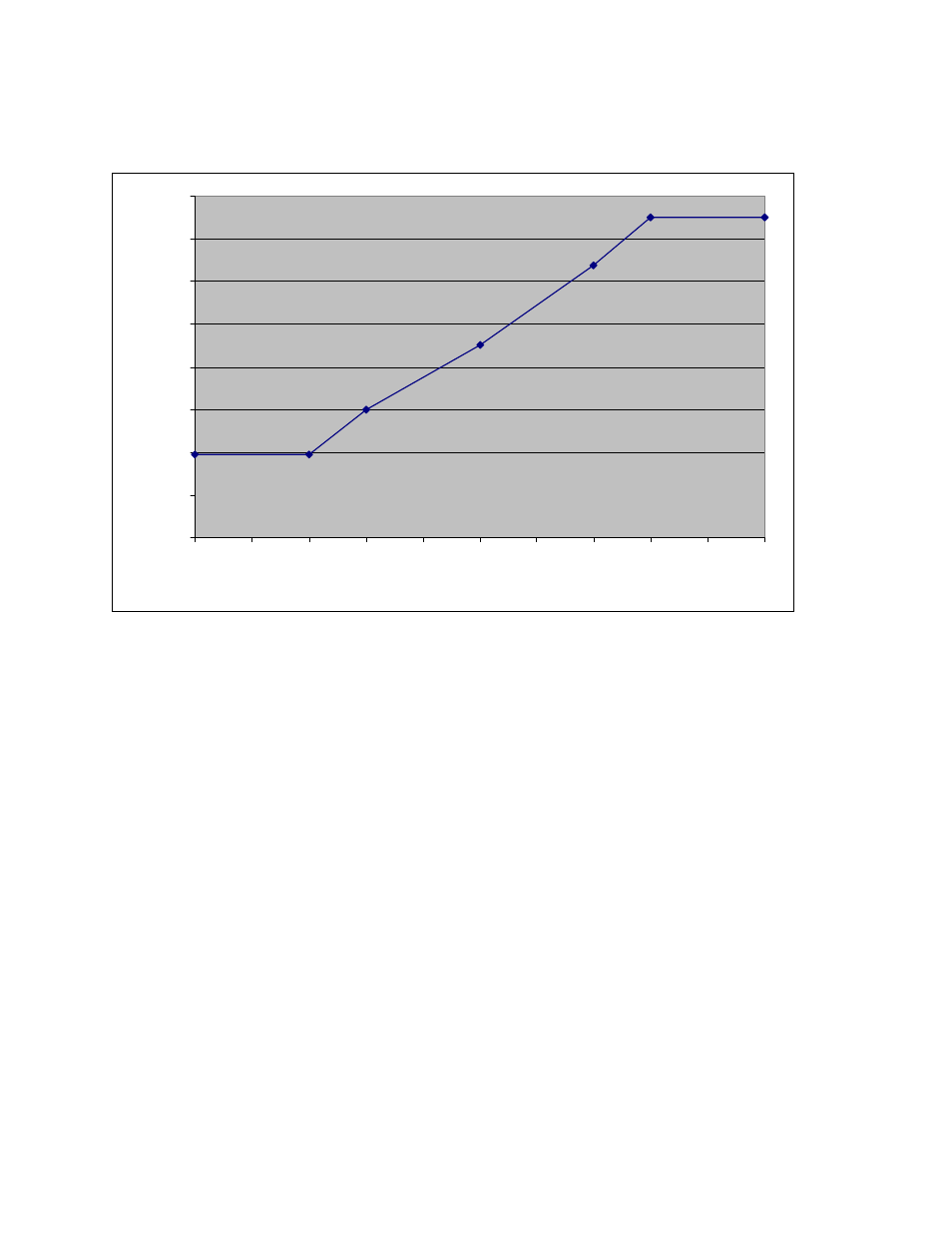

The typical monitor brightness vs. ambient is as follows:
Figure Figure Figure Figure 9 9 9 9. Monitor Brightness vs. Ambient . Monitor Brightness vs. Ambient . Monitor Brightness vs. Ambient . Monitor Brightness vs. Ambient
6.3.4 Manual Brightness Mode
For manual brightness mode, apply a 0-5V input voltage to the DIM pin on the dimming
control connector. The DIM input will override any input from the photodiode board. Note
that the photodiode board may be left disconnected if not used.
The LC1200R brightness vs. DIM voltage relationship is Figure 10. 1.5V will dim the LC1200R
to below 100 nits; and above 3.5V will produce maximum brightness.
Note: At extremely low brightness levels, non uniformity and flickering may become evident.
0
200
400
600
800
1000
1200
1400
1600
0 100 200 300 400 500 600 700 800 900 1000
Ambient, lux
B
ri
g
h
tn
ess,
n
it
s
