ASIC

NTENNA

ABLE

TV C

ONNECTIONS

Your Cable Box/Satellite Receiver may
have Audio/Video Out jacks instead of a
single Antenna Out jack (RF coaxial or
75 ohm) as shown here. Use audio/video
cables to connect those jacks to the
TV/DVD’s AV INPUTS.
Press TV/AV/DVD on the remote to select
VIDEO mode. Select TV channels at the
Cable Box/Satellite Receiver as usual,
leaving the TV/DVD on VIDEO.

ELPFUL

INT

75 OHM

ANTENNA

INPUT

CABLE TV

OR SATELLITE

SIGNAL

75 OHM

ANTENNA

INPUT

VIDEO

AUDIO-R

AV INPUT

(MONO)

AV OUTPUT

COAXIAL

DVD DIGITAL

OUTPUT

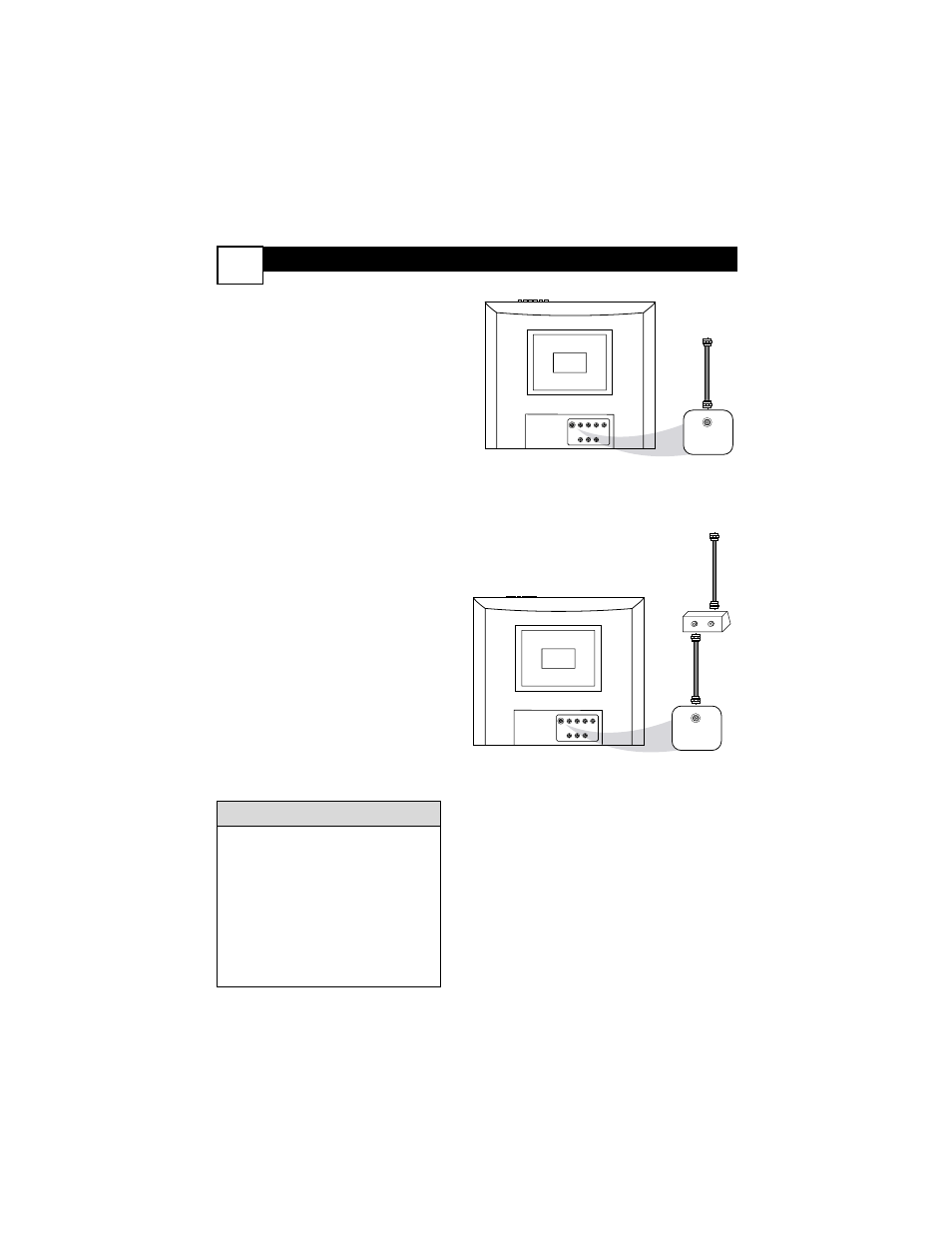

o receive television programming, con-
nect your TV/DVD using one of the

connections shown.The TV channels will
be available after you use Auto Search to
select channels.

Using Cable TV service or an
Indoor or Outdoor Antenna
Connect a Cable TV signal or an
antenna to the 75 OHM
ANTENNA INPUT on the rear
of the TV/DVD.

Using a Cable Box or
Satellite Receiver

1. Connect the Cable TV or
Satellite signal to the IN Jack on
the Cable Box/Satellite Receiver.

2. Connect an RF coaxial cable
(not supplied) to the OUT Jack
on the Cable Box/ Satellite
Receiver and to the 75 OHM
ANTENNA INPUT on the
TV/DVD.

3. To view any channel, set the
TV/DVD to the output channel
(3 or 4) of the Cable
Box/Satellite Receiver.Then,
select channels at the Cable
Box/Satellite Receiver.

When all other connections
are complete, plug in the
TV/DVD’s power cord.

OUT
