1.6 Programming the PXDP
Now that you have identified the correct harness and dip-switch configuration
using the application guide, it is now time to program the interface.
To program the interface, set the dip-switches located on the side of the interface
(see Fig.1 below) to the congfiguration listed for your vehicle in the online applica-
tion guide:
http://www.peripheralelectronics.com/apps
Switches are in their default setting of “off” in the up position and are turned “on”
when switched down. Refer to the chart on the bottom of this page.
This programs the PXDP to the vehicle it is being installed in. The dip-switches
MUST be set before the interface is plugged into the vehicle. Otherwise the PXDP
will not work correctly.
TOP VIEW
1 2 3 4 5 6 7 8
DIP
ON
DIN CONNECTOR / DIP SWITCH VIEW
22-PIN HARNESS VIEW

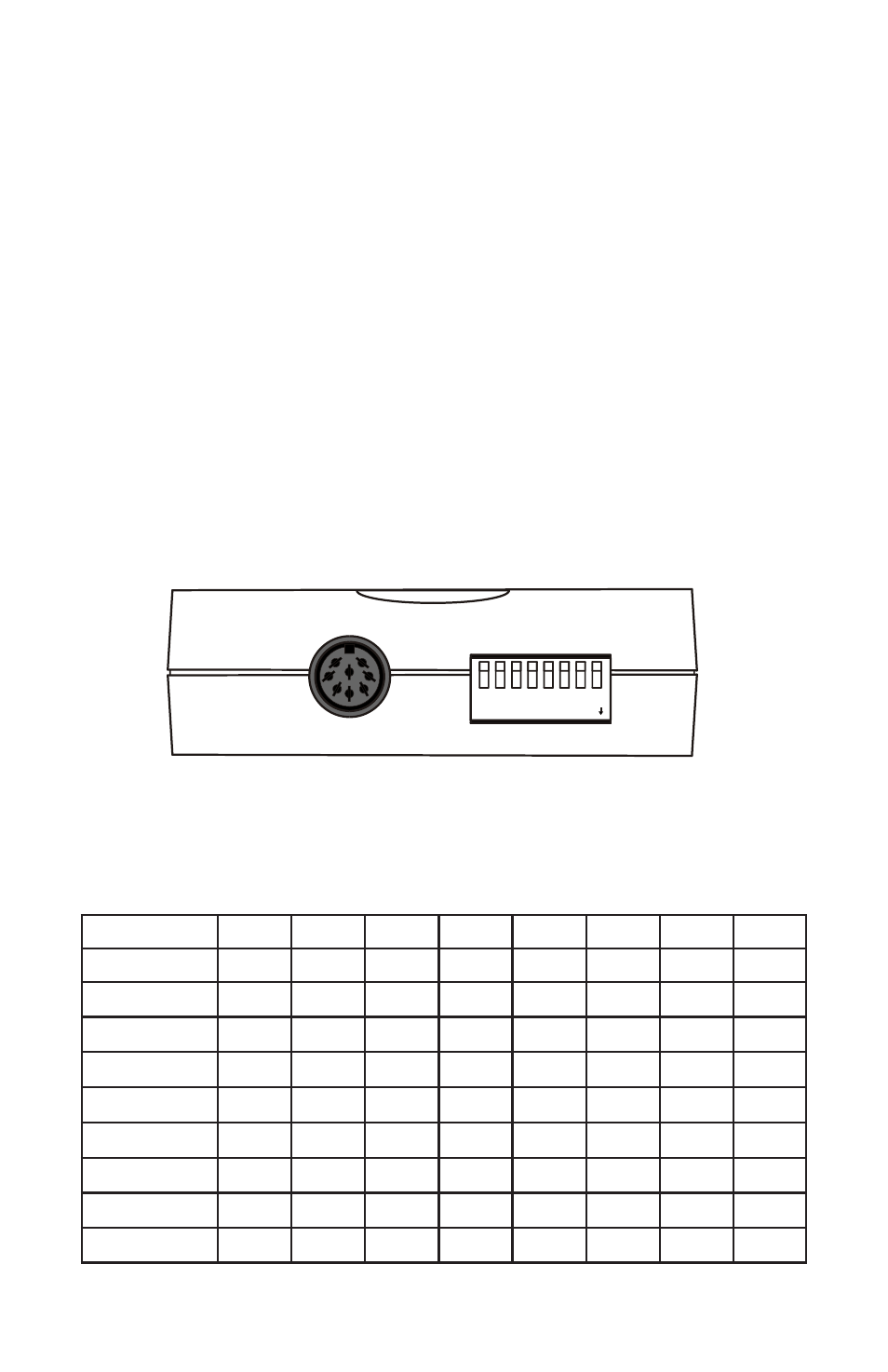

Fig.1 Side view of Interface with dip switches
Dip Switch Configuration Chart
1
2
3
4
5
6
7
8
Config. #1
ON
off
off
ON
off
off
off
ON
Config. #2
ON
off
off
off
off
off
off
ON
Config. #3
off
off
off
ON
off
off
off
ON
Config. #4
off
ON
off
off
off
off
off
ON
Config. #5
ON
ON
off
off
off
off
off
ON
Config. #6
off
off
ON
off
off
off
off
ON
Config. #7
ON
off
ON
off
off
off
off
ON
Config. #8
off
ON
ON
off
off
off
off
ON
Config. #9
ON
ON
off
ON
off
off
off
ON
