Poulan Pro 545103410 - Manual (Page 2)

PARAMOUNT PARTS LIST
R WEED EATER PARTS LIST R R
POULAN PARTS LIST R
Replaces
2 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
Chain Saw Model(s):
545103410
PP4620AVX
DATE
07/03/08 545103410 -- 6/20/08

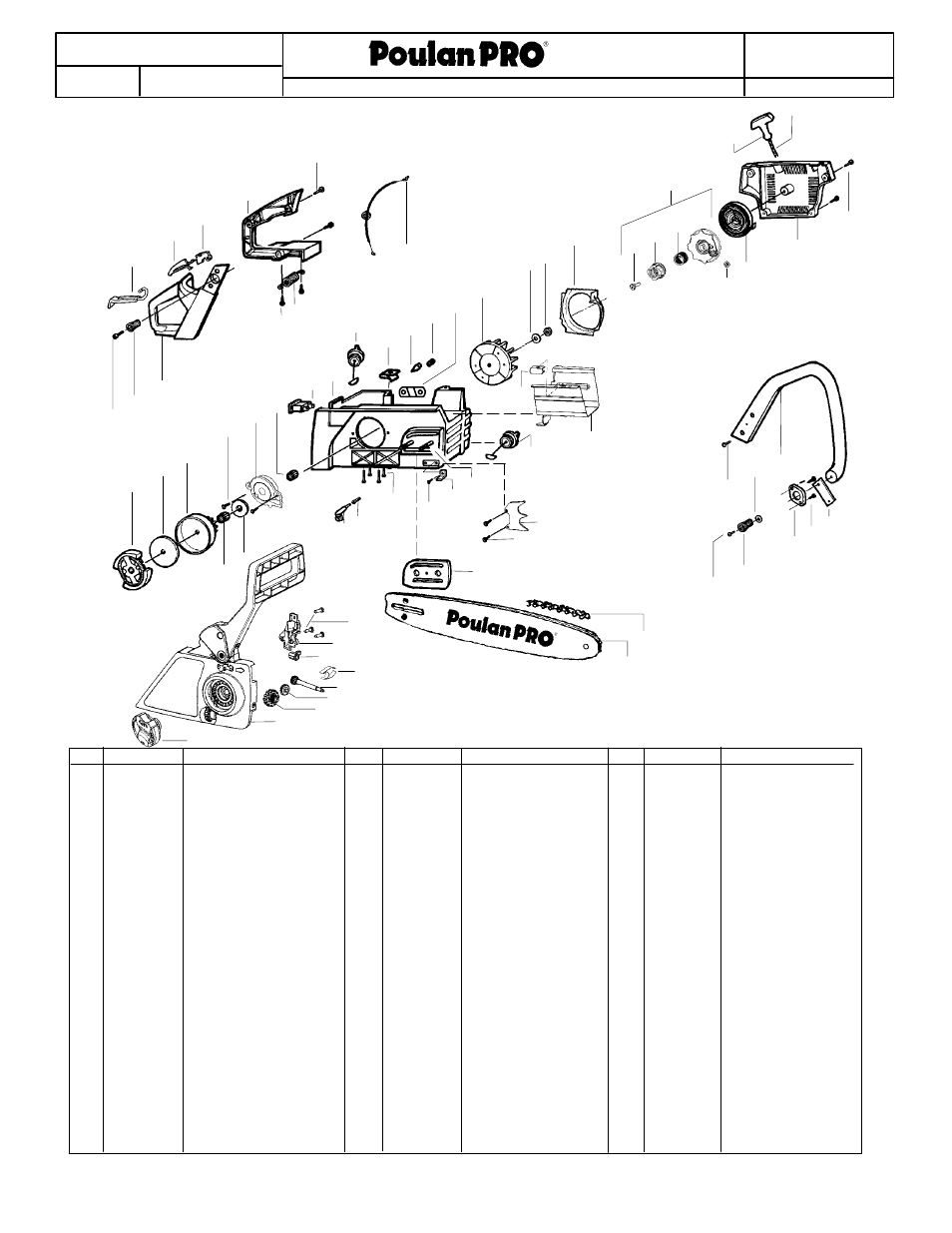

PARTS LIST
3
4
8
1
10
9
11
2
25
22
24 26
27
28
36
35
32
33
34
19
21
61
62
43
42
37
38
20
39
46
23
6
53
7
5
12
52
55
57
54
59
58
56
16
17
15
50
51
13
18
41
40
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 530015957 Screw
2. 530071272 Cover--Handle (kit)
3. 530036097 Trigger--Throttle
4. 530036098 Lockout--Throttle
5. 530053443 Lever--Choke
6. 530015937 Screw
7. 530038985 Spring--Isolator
8. 530071272 Handle--Rear (kit)
9. 530015906 Screw
10. 530038986 Spring--Isolator
11. 530038471 Assy--Throttle Cable
(Incl. Grommet)
12. 530069232 Kit--Rope
13. 530056422 Handle--Starter
14. 530071966 Kit--Starter EPS
(Incl. 15,16,17,49)
15. 530021180 Spring EPS
16. 530059677 Hub--Starter EPS
17. 530021179 Screw--Shoulder
18. 530047667 Plate--Baffle Fan
19. 530016134 Nut--Flywheel
20. 530015127 Washer--Flywheel
21. 530059637 Assy--Flywheel
22. 530036043 Plate--Support
(Bar Stud)
23. 530029868 Plug--Vent
24. 530026119 Valve--Check
25. 530015922 Nut--Speed
26. 530010845 Assy--Fuel Cap
27. 530037551 Assy--Chassis
(Incl. 22,23,24,26,42,46
Fuel line and filter)
28. 530069572 Kit--Switch
29. 530029833 Worm--Oil Pump
30. 530014410 Assy.--Oil Pump
31. 530015896 Screw
32. 530069342 Kit--Clutch Drum
(Incl. #35)
33. 530015611 Washer--Clutch
34. 530014949 Assy--Clutch
35. 530032119 Bearing--Clutch
36. 530015907 Washer--Thrust
37. 545047801 Pickup--Oil
38. 530056533 Filter--Oil
39. 530016037 Screw
40. 530015814 Screw
41. 530029850 Chain Catcher
42. 530015877 Bar Bolt
43. 530047855 Bar Plate
44. 530016439 Screw
45. 530014381 Kit--Spike Assy(incl#44)
46. 530057236 Assy--Oil Cap
47. 530055406 Shield--Heat
48. 530055322 Clip--”U”
49. 530016080 Screw
50. 530042095 Spring--Recoil
51. 545008803 Housing--Fan
52. 530015892 Screw
53. 530015814 Screw
54. 530015158 Washer
55. 530038327 Handle--Front
56. 530036113 Front Strap--AV
57. 530015775 Screw--Plate
58. 530036101 Plate--Isolator
59. 530038985 Spring--Isolator
60. 530015984 Screw
61. 952051310 Chain”-- 20”
62. 545049001 Bar --20”
63. 530016064 Screw
64. 545051201 Cover--Gear
65. 545060501 Pin--Bar Adjust
66. 545149301 Clip--Spring
67. 545060401 Screw--Adjuster
68. 545060201 Gear--Idler
69. 545090501 Wheel--Gear Adjust
70. 545081874 Kit --ChainBrake Assy.
(Incl. Knob)
71. 545081875 Kit -- EZT Knob
44
45
47
48
60
= NEW PART NUMBER FOR THIS IPL n = REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
