PARAMOUNT PARTS LIST
R WEED EATER PARTS LIST R R
POULAN PARTS LIST R
Replaces

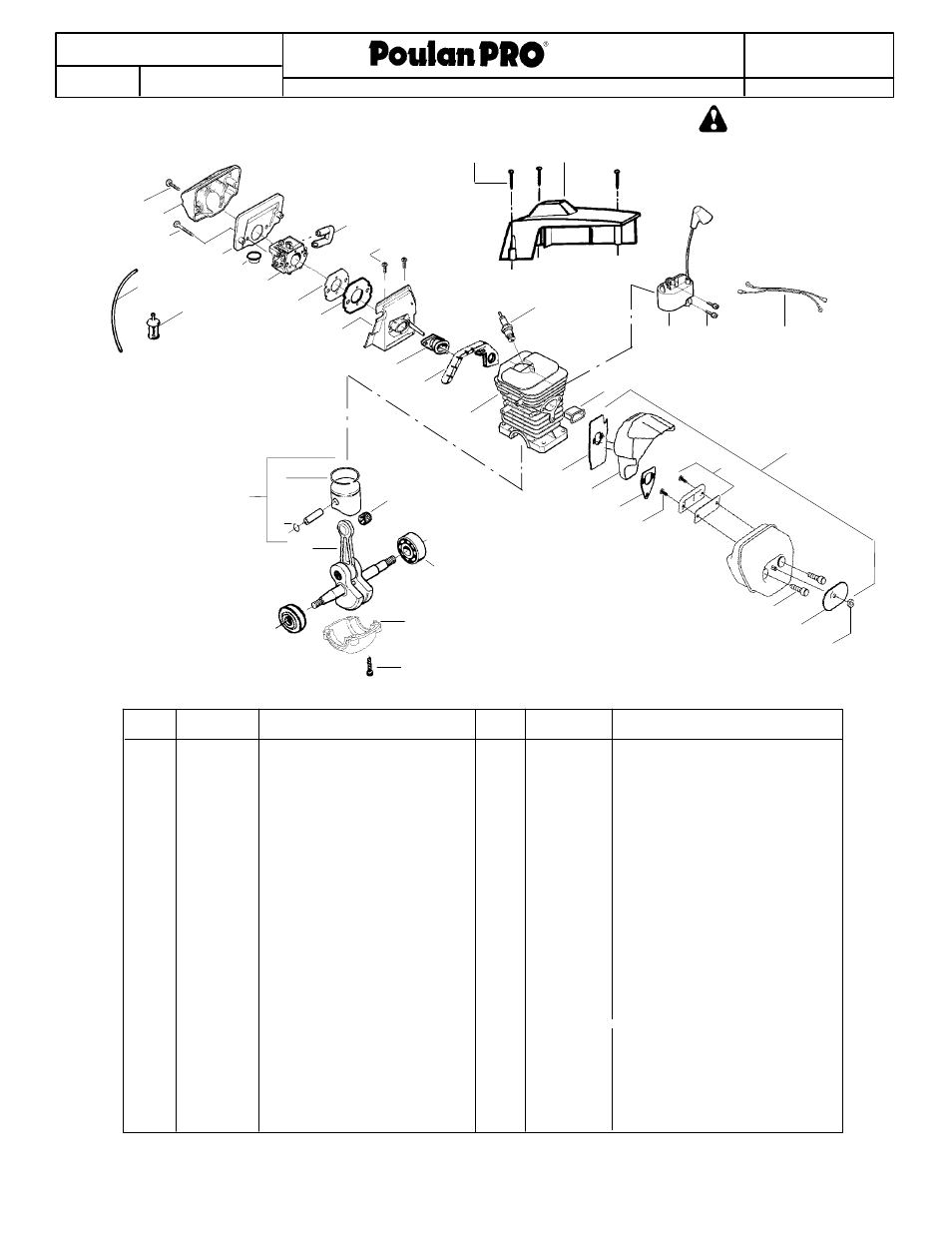

1 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
Chain Saw Model(s):
545103410
PP4620AVX
DATE
07/03/08 545103410 -- 6/20/08
PARTS LIST
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
1
7 8
13
14
16
17
6
2
Ref. Part No. Description Ref. Part No. Description
1. 530016154 Screw
2. 530069716 Kit--Cylinder Shield
3. 530035583 Grommet --Carb.
4. 530015814 Screw
5. 952030150 Spark Plug (RCJ--7Y)
6. 530039239 Module--Ignition
7. 545121901 Screw
8. 530037467 Assy--Switch Wire
9. 530037652 Insulator--Heat
10. 530071495 Kit--Muffler
(Incl.11,13,14,15,16,17,18)
11. 530071497 Kit--Spark Arrestor (Incl.# 15)
12. 530016359 Nut--Brass
13. 530056061 Cover--Bolt
14. 530016338 Bolt--Muffler
15. 530016351 Screw--Spark Screen
16. 530055128 Gasket--Muffler
17. 530055765 Assy--Muffler Backplate
18. 530055402 Backplate -- Alum.
19. 530032117 Bearing--Piston Pin
20. 530056363 Assy--Bearing & Seal
21. 530049794 Cap--Crankcase
22. 530015897 Screw
23. 530029794 Assy--C’shaft & Rod
24. 530015697 Retainer--Piston Pin
25. 530037380 Ring--Piston
26. 530069548 Kit--Piston (Incl. 19,24,25 )
27. 530071490 Assy--Cyl/Crankcase (Incl.#21)
28. 530019251 Seal--Super Clean
29. 530035581 Intake Boot
30. 530053396 Adapter--Carb.
31. 530037872 Intake Plate--Carb
32. 530019172 Gasket--Carb.
33. 530071693 Kit--Carburetor (WT--657)
34. 530036792 Isolator
35. 530059738 Filter--Air (Bottom)
36. 530015970 Screw
37. 545057701 Filter--Air (Top)
38. 530015899 Screw
39. 530069247 Kit--Fuel Line (Small)
40. 530095646 Assy--Fuel Pick--up
545186803 Manual
30
29
3
38
37
4
28
10
11
15
39
40
12
20
26
21
23
24
25
32
31
35
33
36
9
5
Not Shown
22
27
34
19
18
n
= REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
= THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
= NEW PART NUMBER FOR THIS IPL
