REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT22H48A

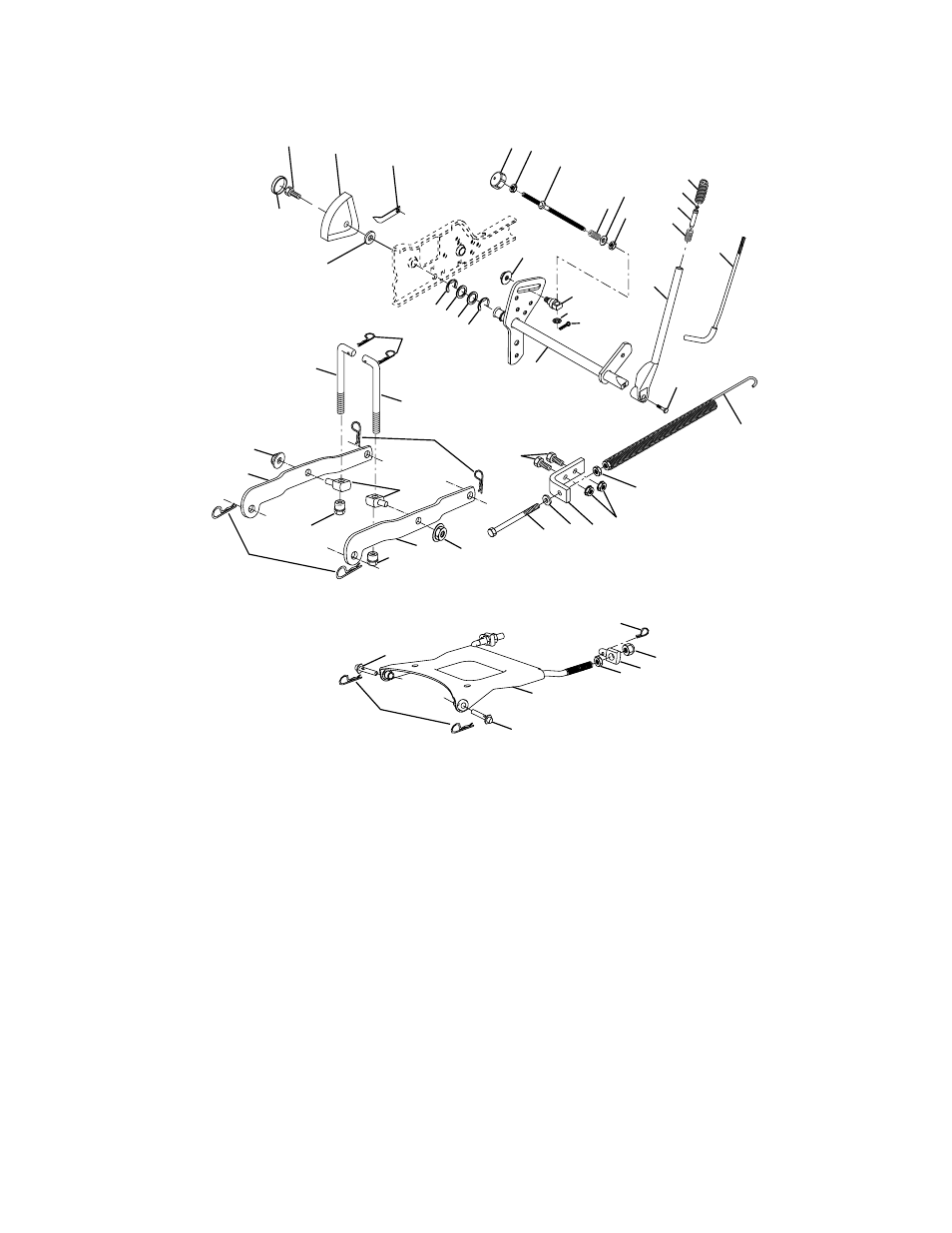

LIFT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 121006X Rod Asm., Lever
2 177535 Shaft Asm., Lift Vgt
3 159189 Lever Asm., Lift Rh
4 12000022 E-Ring Truarc #5133-87
5 19292016 Washer 29/32 x 1-1/4 x 16 Ga.
6 71110624 Bolt, Fin Hex 3/8-16 x 1-1/2
7 125631X Grip, Handle Fluted
8 170770 Button, Plunger
9 122364X Plunger, Lever Lift
10 2876H Spring 2-1/8"
11 175375 Link Lift
12 163552 Retainer, Spring
15 73350600 Nut, Crownlock 3/8-16 Unc
16 674A247 Spring Asm., Assist Lift
18 143363 Bracket, Spring Assist
19 19131316 Washer 13/32 x 13/16 x 16 Ga.
20 5328J Bolt, Adjust Spring Assist
21 74760616 Bolt, Fin Hex 3/8-16 x 1
23 4939M Retainer, Spring
24 73350800 Nut, Jam Hex 1/2-13 Unc
26 73680800 Nut, Crownlock 1/2-13 Unc
29 150233 Trunnion Inf. Height
30 110807X Nut, Special
31 19131016 Washer 13/32 x 5/8 x 16 Ga.
32 137150 Spring, Compression Inf Hgt
33 76020308 Pin, Cotter 3/32 x 1/2
34 137167 Rod, Adj Lift
35 138057 Knob, Inf 3/8-16 Unc
38 155097 Pointer, Height Indicator
39 123935X Plug, Hole
40 17060516 Screw 5/16-18 x 3/4
41 175994 Nut, Lift Link 7/16-20
42 19112410 Washer 11/32 x 1-1/2 x 10 Ga.
43 123934X Scale, Indicator Height
70 145212 Nut, Hexflange Lock
72 110452X Nut, Push Phos & Oil
73 73350600 Nut Hex Jam 3/8-16 Unc
74 175802 Arm Susp. Rear RH
75 175805 Plate Asm Susp. Front
76 175560 Pin Flange
77 176205 Trunnion Susp. Arm
78 175689 Trunnion Susp. Front
79 175378 Arm Susp. Rear LH
35 73
34
32
31
30
4
5
5
4
2
7
8
9
10
3
6
1
21
19
20
15
73
16
18
38
42
39
40
43
29
70
33
72
26
12
78 24
75
76
76
23
11
11
23
77
74
41
41
23
13
70
70
23
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
