8

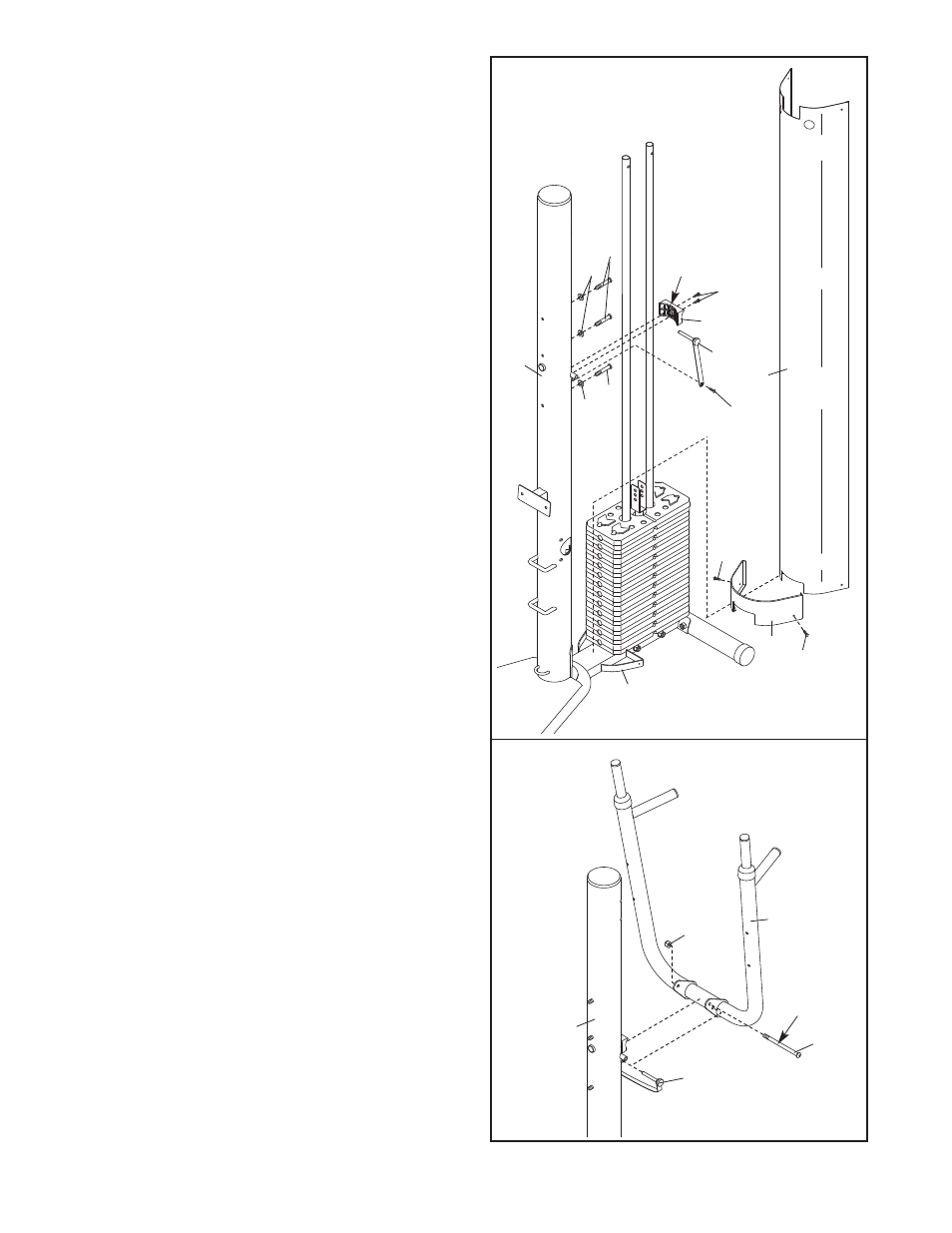

6. Slide three M6 Washers (78) onto three M6 x
140mm Screws (79) and insert the Screws into
the Upright (3) through the indicated holes.
Orient the VKR Bumper (95) with the wide end on
top. Attach the VKR Bumper to the Upright (3)
with two M4 x 16mm Screws (70).
Attach the VKR Pin (101) to the Upright (3) with
an M4 x 16mm Screw (70).
Set the Shroud (13) onto the Base (1). Attach the
Bottom Cover (14) and the Shroud to the Base
with two M4 x 16mm Screws (70).
7. Grease the M10 x 168mm Button Bolt (99).
Attach the VKR Frame (82) to the Upright (3) with
the Bolt and an M10 Nylon Locknut (73).
Do not
overtighten the Locknut; the VKR Frame must
be able to pivot easily.
Engage the VKR Pin (101) into the VKR Frame
(82) and the Upright (3).
6
79
3
13
14
70
1
70
78
79
78
70
Wide
End
95
7
73
82
3
Grease
99
101
70
101
