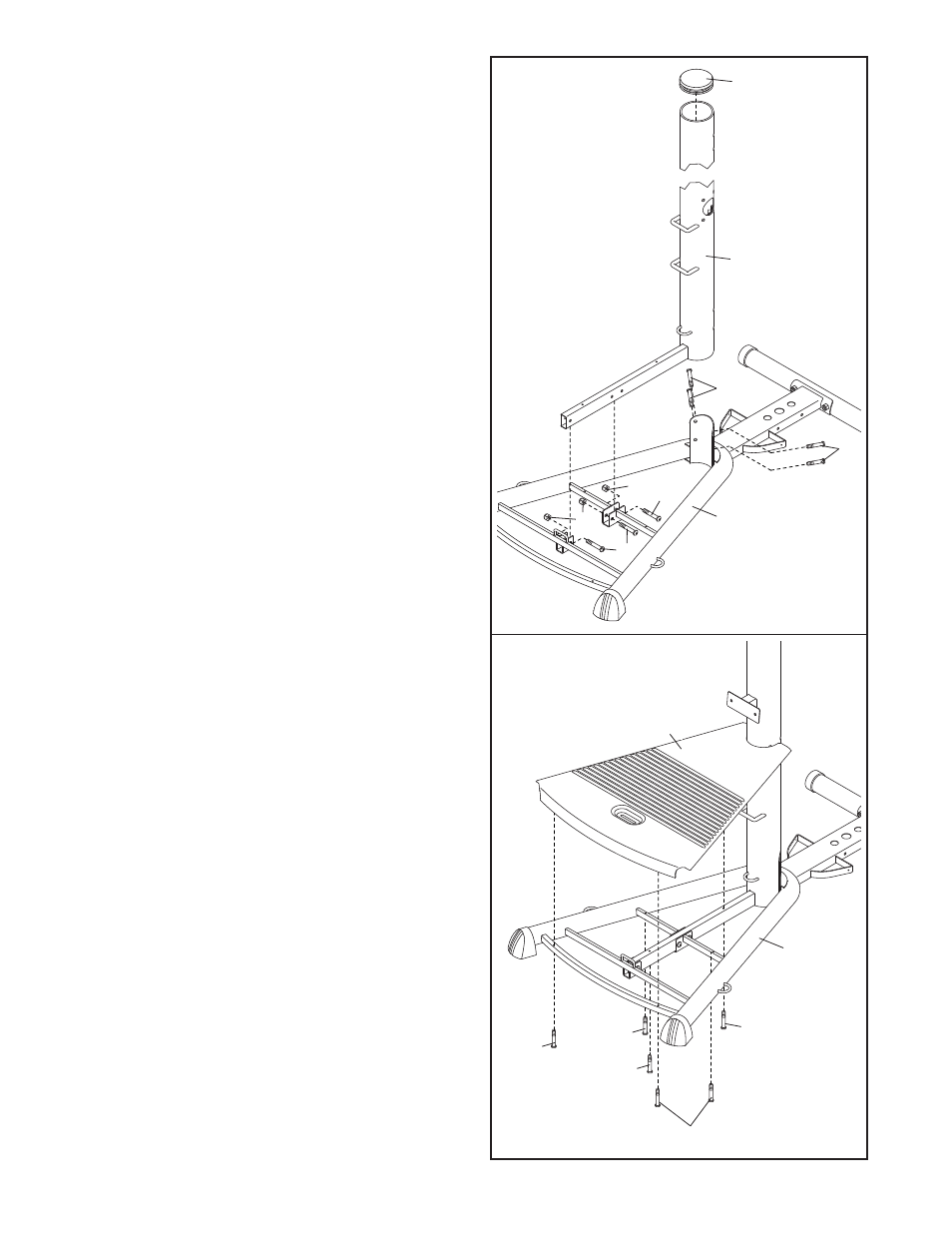

2. Press the 110mm Round Inner Cap (42) into the
Upright (3).
Set the Upright (3) onto the Base (1). Have a sec-
ond person hold the Upright until this step is com-
pleted.
Attach the Upright (3) to the Base (1) with the
three M8 x 45mm Bolts (57), three M8 Nylon
Locknuts (74), and four M10 x 25mm Screws (58).
3. Attach the Base Plate (2) to the Base (1) with the
four M4 x 40mm Screws (46), and two M4 x
64mm Screws (81).
2
3
42
58
58
57
57
74
74 1
3
1
81
81
46
2
46
46
