APPENDIX (cont.)

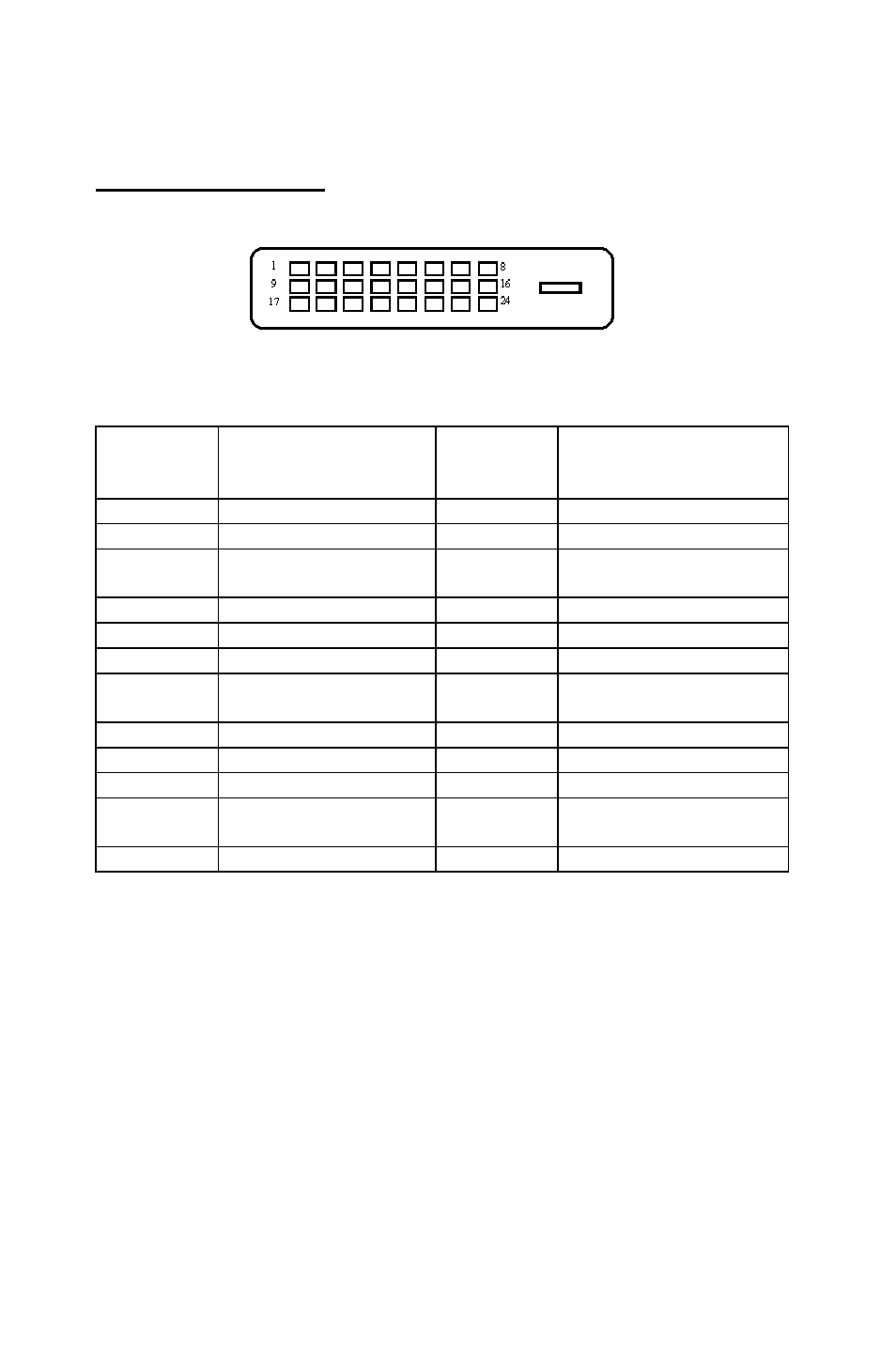

24 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. TMDS Data 2- 13. TMDS Data 3+
2. TMDS Data 2+ 14. +5V Power
3.
TMDS Data 2/4
Shield
15.
Ground(for+5V)
4. TMDS Data 4- 16. Hot Plug Detect
5. TMDS Data 4+ 17. TMDS Data 0-
6. DDC Clock 18. TMDS Data 0+
7.
DDC Data
19.
TMDS Data 0/5
Shield
8. NC 20. TMDS Data 5-
9. TMDS Data 1- 21. TMDS Data 5+
10. TMDS Data 1+ 22. TMDS Clock Shield
11.
TMDS Data 1/3
Shield
23.
TMDS Clock +
12. TMDS Data 3- 24. TMDS Clock -
