R
POULAN PARTS LIST R R POULAN PRO PARTS LIST PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES
7 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
Ref. Part No. Description
Carb.
Repair
Kit
3
Gasket/
Dia.
Kit
4

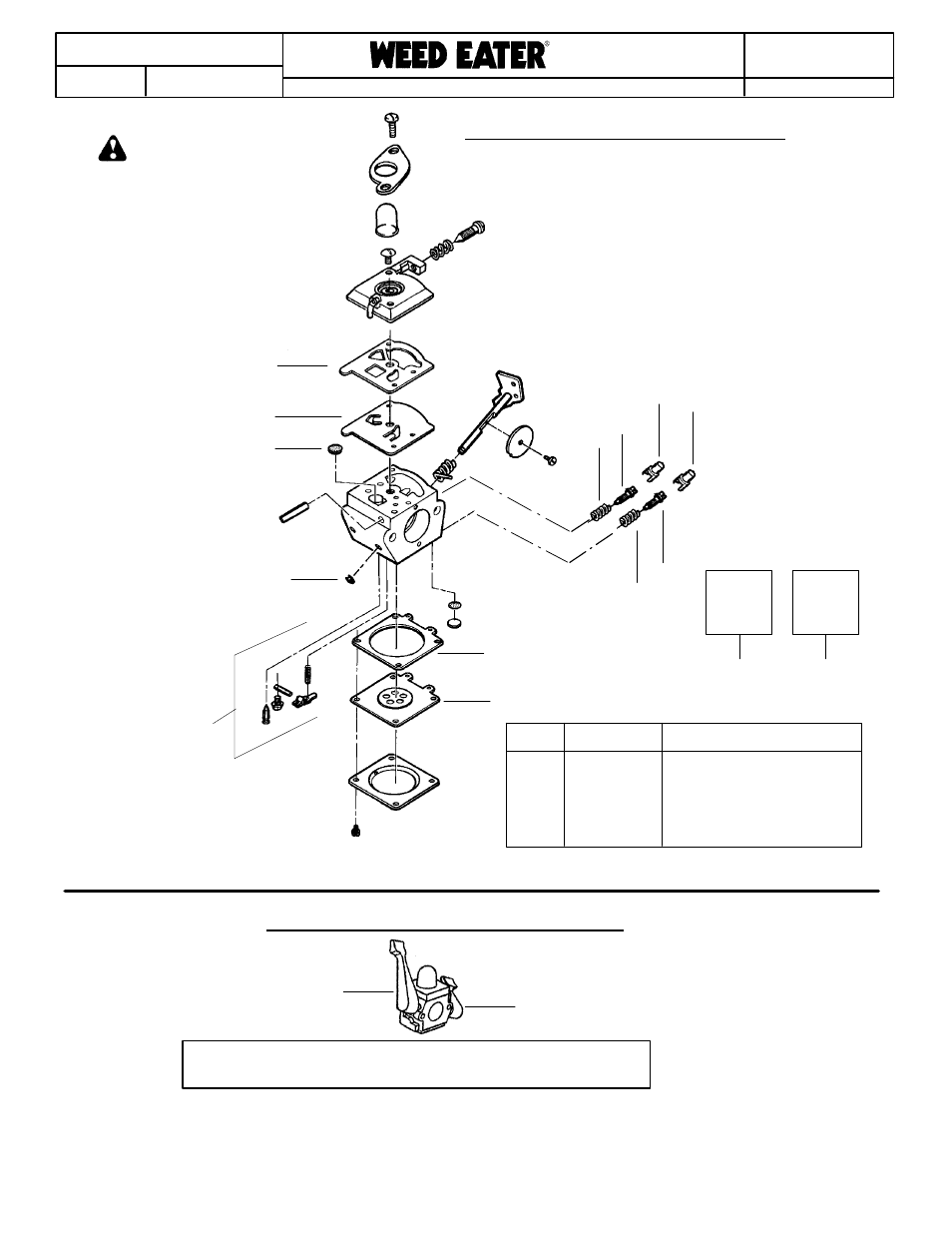

Carburetor Assembly Part Number 530071471 (WT--12)
KIT D
KIT
1
2
KIT
KIT
KIT
KIT
KIT
KIT
KIT D
KIT D
KIT D
1. 530038478 Limiter Cap--Low (tan)
2. 530038479 Limiter Cap--High (brown)
3. 530071517 Carburetor Repair Kit
( KIT = CONTENTS)
4. 530071442 Gasket/Diaphragm Kit
( D = CONTENTS)
= NEW PART NUMBER FOR THIS IPL n
= REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
Kit -- Carburetor Assy # 530071629 -- C1U--W12A
Note: No Repair kits are available for this carburetor, please order
the complete assembly part number 530--071629 ( C1U--W12A )
530071713 Kit--Throttle Lever
530071714 Kit--Choke Lever
