POULAN PARTS LIST R R POULAN PRO PARTS LIST PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES

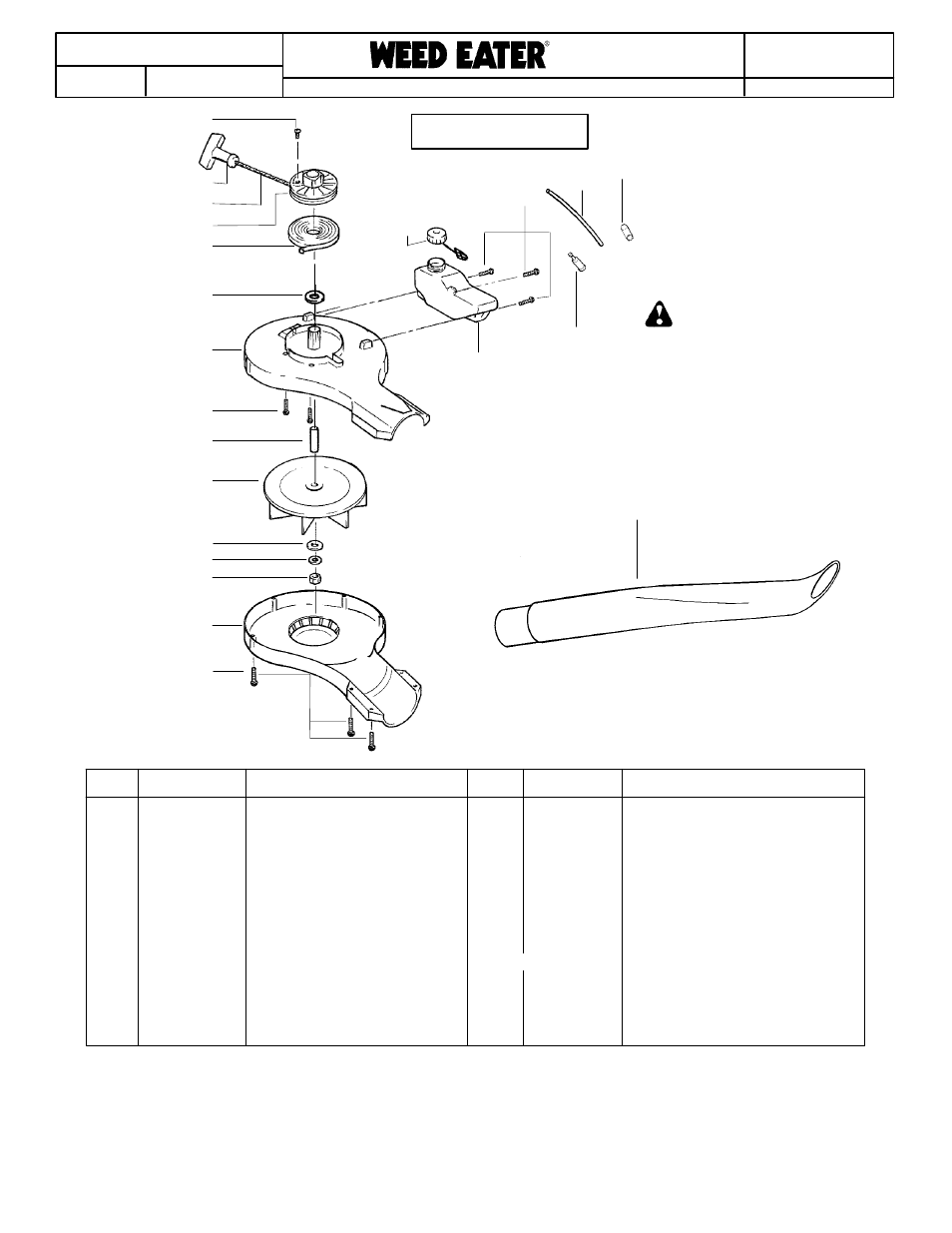

6 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
1. 530016392 Screw
2. 530049488 Handle--Starter
3. 530069907 Kit--Rope
4. 530071792 Kit--Starter Pulley
(Incl. 1)
5. 530042086 Spring--Starter
6. 530015149 Washer
7. 530058713 Housing--Impeller (Upper)
8. 530015814 Screw
9. 530052434 Spacer--Flywheel
10. 530053237 Assy--Impeller
11. 530016260 Washer--Flat
12. 530092322 Lockwasher
13. 530626605 Nut
14. 530054181 Assy--Impeller Housing (Lower)
15. 530015886 Screw
16. 530014347 Assy--Fuel Cap
17. 530016349 Screw
18. 530069599 Kit--Fuel Line
19. 530053314 Grommet--Fuel Line
20. 545103903 Assy--Fuel Tank
(Incl. cap,filter, fuel lines)
21. 530014362 Fuel Pick--up Ass’y.
22. 530052337 Tube--Blower
545186783 Operator Manual
522928602 Decal -- Spark Arrestor Warning
Part No. Description Ref. Part No. Description Ref.
2
3
1
4
5
16
17
18
21
20
7
9
10
11
12
13
14
15
22
8
6
19
Not Shown
= NEW PART NUMBER FOR THIS IPL n
= REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
TYPE 4,5
n
