19
BOILER DIMENSIONS & RATINGS
7. BOILER DIMENSIONS & RATINGS

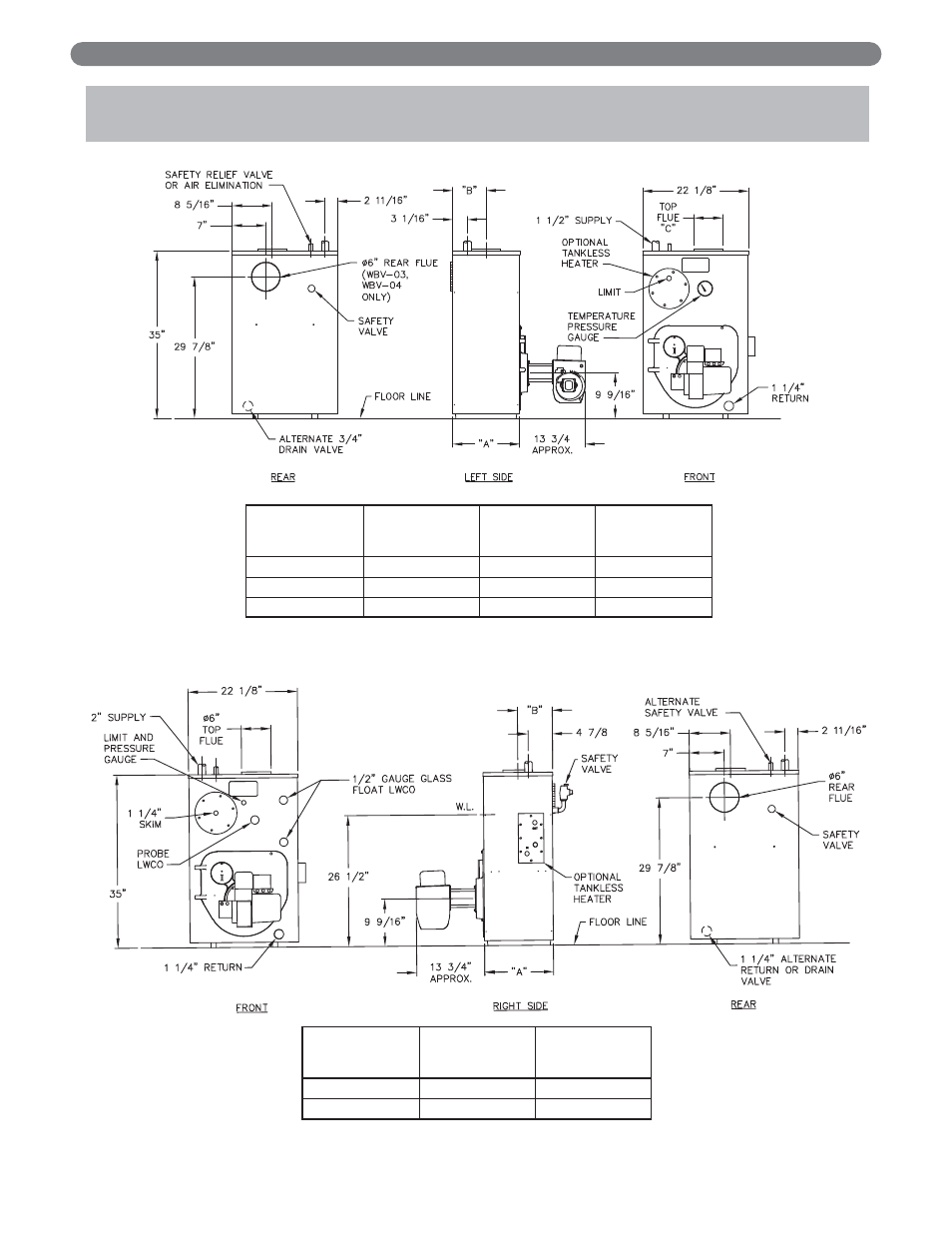

Figure 7.1: Boiler Dimensions, Water Boiler
Figure 7.2: Boiler Dimensions, Steam Boiler
Boiler
Model
Number
Jacket
Depth
"A"
Rear of Jacket to
C/L of Top Flue
Outlet "B"
Top
Flue Size
"C"
WBV-03-085/110 14-1/8" 7-1/16" 6"
WBV-04-125/150 18-1/8" 9-1/16" 6"
WV-05-175/200 22-1/8" 11-1/16" 7"
Boiler
Model
Number
Jacket
Depth "A"
Rear of Jacket to
C/L of Top Flue
Outlet "B"
WBV-03-085/110 15-3/4" 8-7/8"
WBV-04-125/150 19-3/4" 10-7/8"
