35
NOTE: The instructions given here are for templates mounted to the base of the jig. However, this joint can also be
made with templates mounted to angled clamping boards. You must use the angled clamping board for steeper
angles.

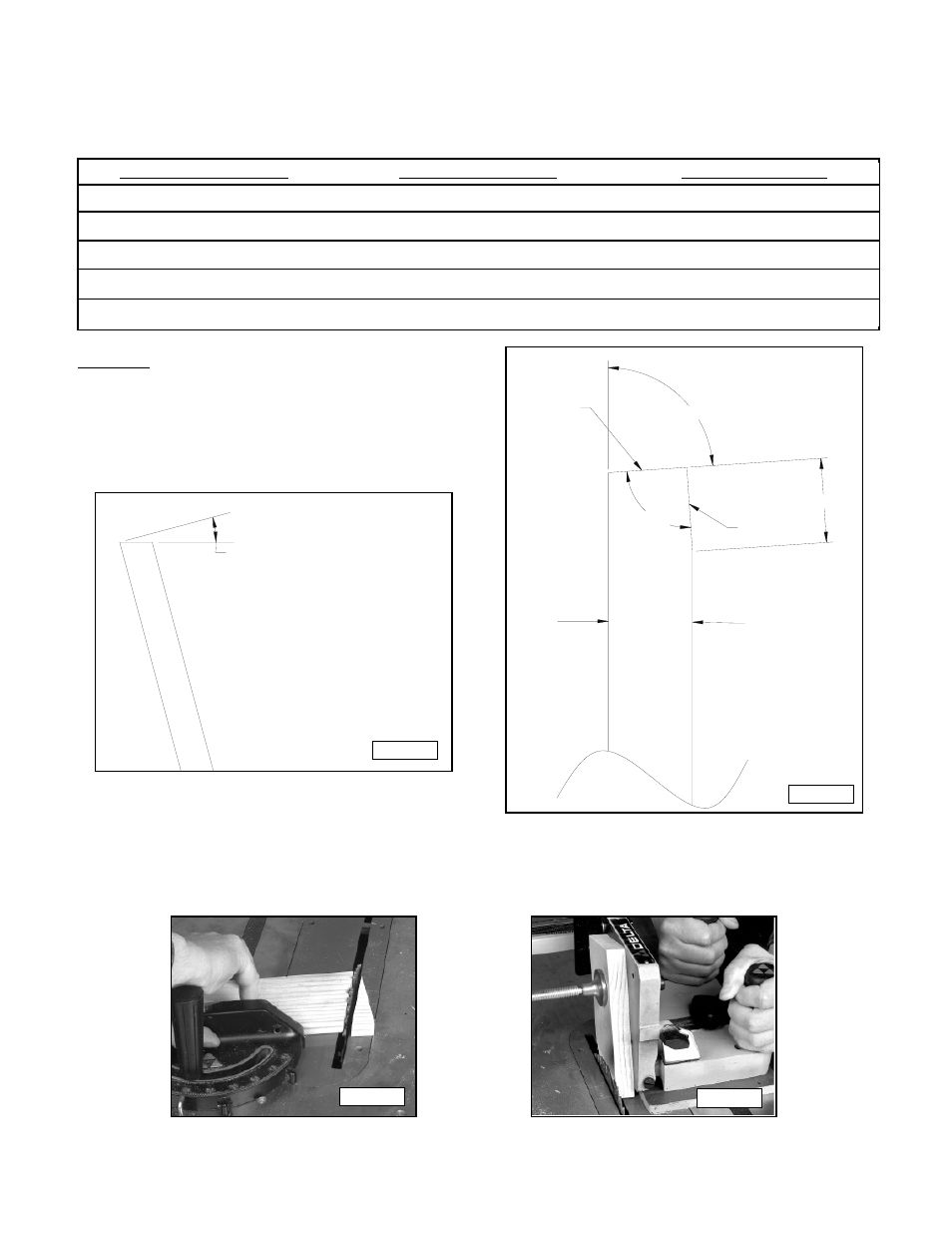

Use the following table for setting up your table saw for these cuts:
DESIRED SIDE ANGLE
85°
80°
75°
70°
65°
MITER gauge ANGLE
85.0°
80.1°
75.5°
71.1°
67.1°
BLADE TILT ANGLE
89.6°
88.3°
86.2°
83.3°
79.7°
SETUP
Use the same setup as you would for the obtuse
angled joint. Use the blade tilt angle for making the
angle insert or the angled clamping block. Bevel the
edges according to the drawing (Fig. 63A).
BEVEL THE EDGES OF THE TAIL AND PIN BOARDS
Fig. 63A
FIRST CUT
SECOND CUT
INSIDE
SURFACE
OF BOARD OUTSIDE
SURFACE
OF BOARD
BLADE TILT ANGLE
THICKNESS OF PIN BOAR
90.0°
Fig. 64A
Cut the end of the tail board according to the drawing (Fig. 64A). Set the miter gauge and tilt the blade to
the values in the above table. Make the first cut with the board flat on the table surface and guide it with
the miter gauge (Fig. 64B). Make the second cut with a tenoning jig (Fig. 64C). Step 1 -
Fig. 64B Fig. 64C
