PYLE Audio PSWLE82 User Manual
Page 4
5
Part 2-Attaching plastic covers to wall plate
Secure plastic covers over wall plate by pushing them toward each other
until they lock in place.
Part 2-Attaching plastic covers to wall plate
-4-
-5-
.
If you think the ribbon is too long, You can hide it at the back of the
televesion,once you want to uninstall the TV, it can help you to take out the
brackets
3
2 (50mm)
”
Φ3/8 (10mm)
”

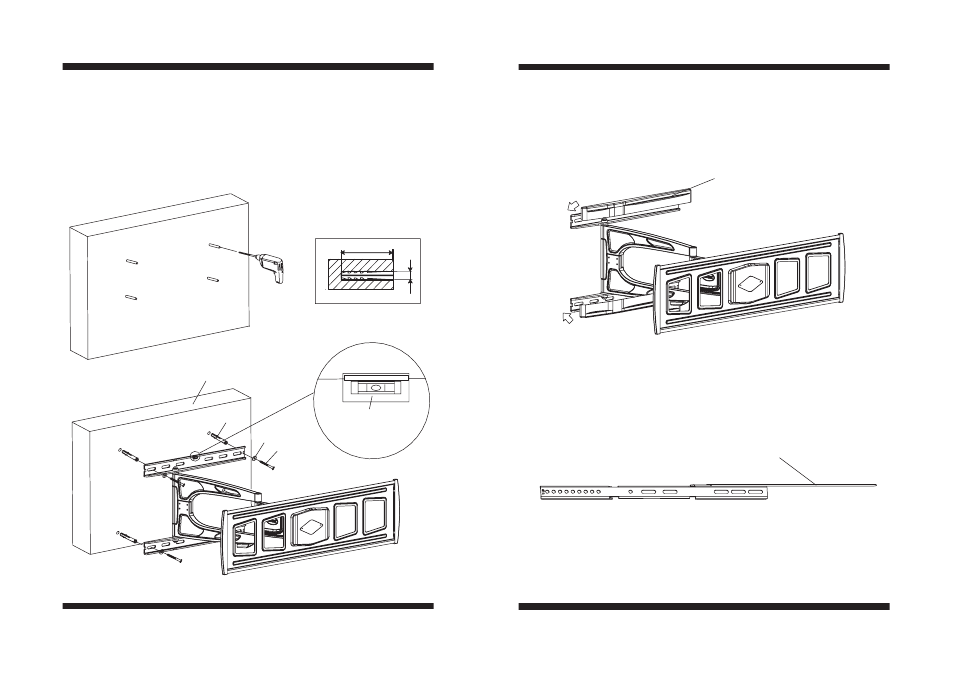

Part 1b-Concrete Wall Mounting
.
Level wall plate(1) and use wall as a template to mark four holes. Drill four
3/8 (10mm) dia. holes 2 (50mm) deep. Insert four anchors(H) into holes
and secure wall plate with four long bolts(G) and four washers(F).Tighten
screws firmly. Do not overtighten
”
”
Part 1b-Concrete Wall Mounting
G
F
Magnetic removable
bubble level
Concrete Wall
H
