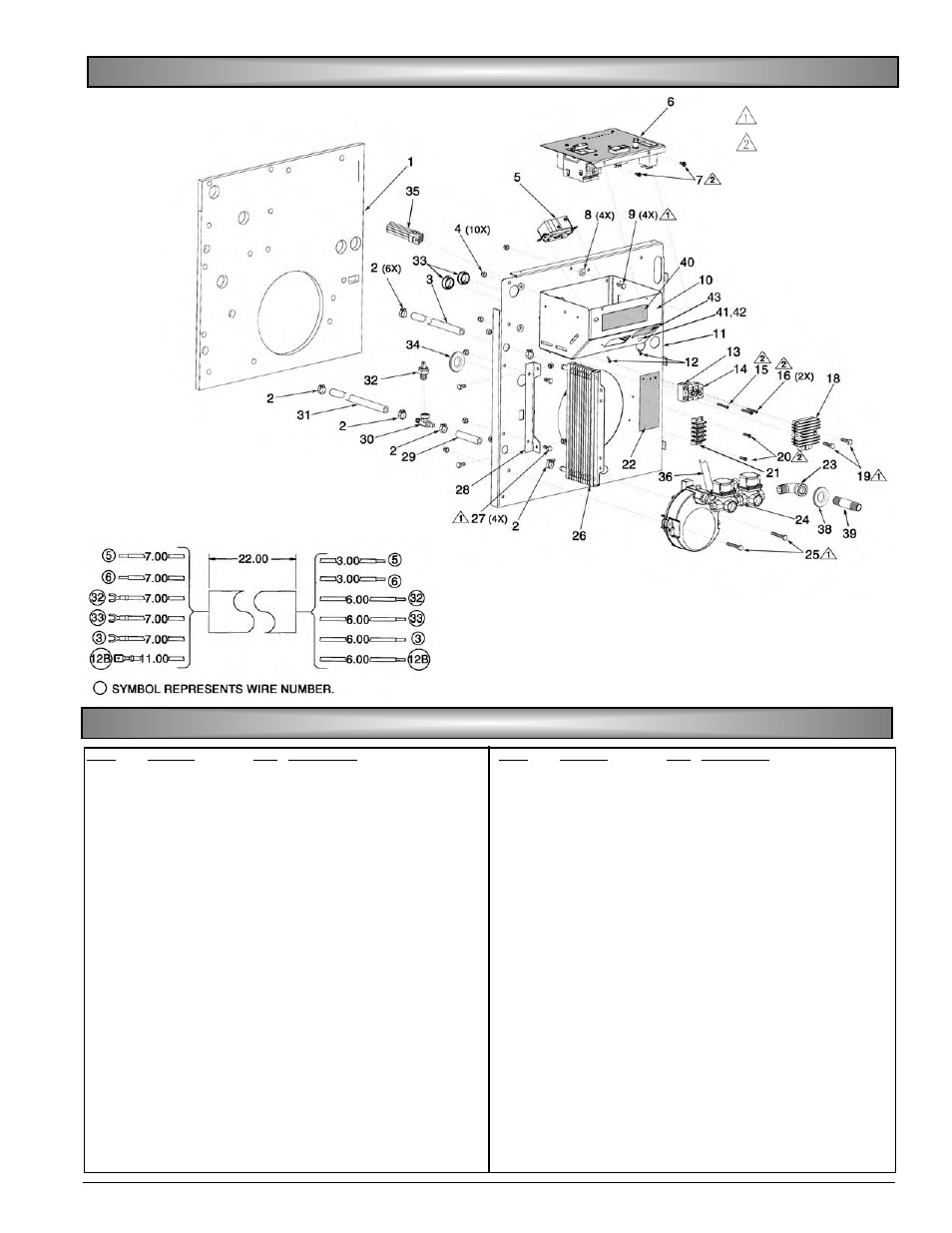

Powermate PM401211 User Manual
Page 41
200-2341
41
P
P
A
A
R
R
T
T
S
S
D
D
R
R
A
A
W
W
I
I
N
N
G
G
-
-
E
E
N
N
G
G
I
I
N
N
E
E
P
P
A
A
N
N
E
E
L
L
E
E
N
N
D
D
A
A
S
S
S
S
E
E
M
M
B
B
L
L
Y
Y
P
P
A
A
R
R
T
T
S
S
L
L
I
I
S
S
T
T
Item
Part No
Qty Description
1 094-0096 1
Insulation
2
N/A
6
Hose clamp, 23/32” I.D.
3
S012-0106
1
Hose, high temp oil, 3/8” x 26.5” lg
4
N/A
10
Nut, 1/4-20, Nylon stop
5 026-0338 1
GFCI
Receptacle
6
See page 42
1
Control panel assy, CP200
7
N/A
2
Screw, 10-16 x .50” lg
8
094-0095
4
Spacer, .75 O.D.
9
N/A
4
Screw, 1/4-20 x .75” lg
10
S115-0238
1
Control box frame
11
115-0272
1
Panel, right hand (includes items
1 & 22)
12
N/A
2
Screw, 6-32 x .50” lg
13
026-0460
1
Terminal block, ground lug
14 026-0472 1
Terminal
block
15
N/A
1
Screw, torx 8-32 x 1.25” lg
16
N/A
2
Screw, 8-32 x 1.25” lg
17
N/A
5
Nut, #8-32 (not shown - for items
15, 16 and 20)
18
N/A
1
Rectifier shipped with engine
(Contact Honda Service Center)
19
N/A
2
Bolt, 1/4-20 x 1
20
N/A
1
Screw, 8-32 x .75” lg
21
026-0539
1
Terminal block, 2 row 20A 4-pole
22 098-2800 1
Warning
label
23
N/A
1
Elbow, 1/2 NPT x 1/2 NPT
Item
Part No
Qty Description
24
019-0211
1
Regulator assy, GX670
(PM401211)
or
019-0213
1
Regulator assy, GX620
(PM400911)
25
N/A
2
Bolt, 1/4-20 x 1.75” lg
26 0057079 1
Oil
cooler
27
N/A
4
Bolt, 1/4-20 x .63” lg
28
S114-0564
1
Bracket, oil cooler
29
Order S012-0106 1
Hose, high temp oil, 3/8” x 3” lg
30
069-0022
1
Tee, adapter oil temp
31
Order S012-0106 1
Hose, high temp oil, 3/8” x 13” lg
32
034-0162
1
Switch, oil temp
33
051-0091
2
Bushing, snap .875 ID
34 093-0053 1
Rubber
grommet
35
026-0512
1
Wire harness, engine control
36
012-0120
1
Vapor hose assembly
37
026-0516
1
Wire harness, terminal block
power
38
093-0054
1
Fuel grommet, .84 ID x 1.875 OD
39
N/A
1
Nipple, 3” lg, 1/2 NPT
40 098-2826 1
Warning
label
41 026-0309 1
Fuse
holder
42
N/A
1
Fuse, 5A Type 3AG
43 098-2850 1
Fuse
label
*N/A -
These are standard parts available at your local hardware .
store.
NOTE: Seal all connections with gas tape. Use 2½ wraps
minimum. Check all connections under pressure using
a soap and water solution.
Torque to 8.5 lbs-ft
Torque to 15 lbs-in
ITEM 37
