Features and specifications subject to change without notice.

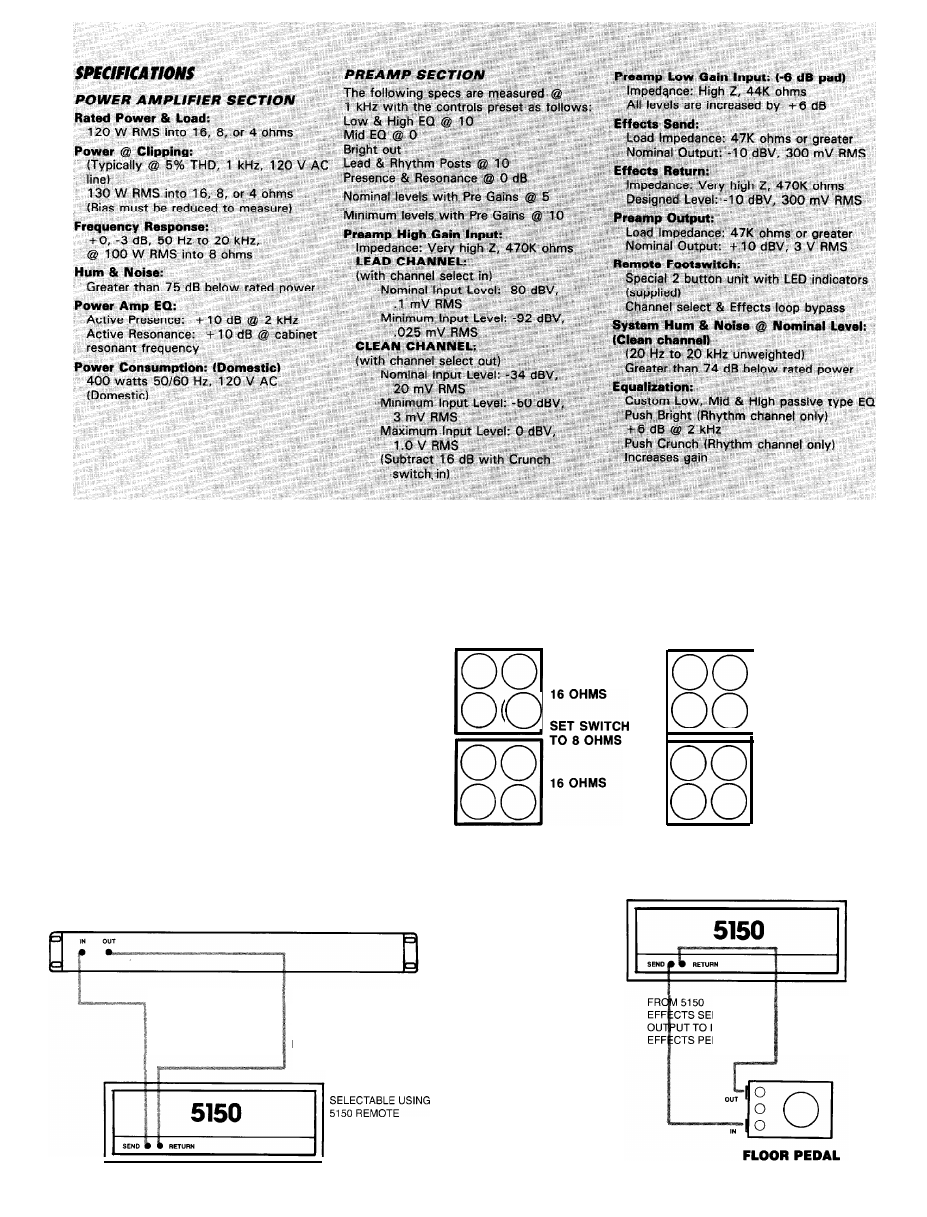

SPEAKER CONNECTION
When connecting the amplifier to the speaker enclosure,
make sure to set the impedance selector switch on the rear
of the unit to the impedance that matches your enclosure.
When two enclosures of equal impedance are used, set the
switch to one half the impedance of one enclosure (e.g. two
16 ohm enclosures: set switch to 8 ohms; two 8 ohm
enclosures: set switch to 4 ohms). The 5150 is designed to
operate into a minimum of 4 ohms.
RACK MOUNT EFFECTS UNIT
EFFECTS
PATCHING
USING THE EFFECTS
FROM 5150
EFFECTS SEND LOOP TO PATCH
FROM OUTPUT OF
OUTPUT TO INPUT OF RACK EFFECTS UNIT
EXTERNAL, NON
RACK EFFECTS UNIT TO 5150 EFFECTS
GAIN PRODUCING
RETURN INPUT EFFECTS DEVICES
(DIGITAL DELAY,
EFFECT(S) ARE
REVERB, CHORUS,
ETC.)
FOOTSWITCH (See
section on REMOTE
FOOTSWITCH JACK)
1
8 OHMS
SET SWITCH
TO 4 OHMS
8 OHMS
BACK PANEL
ND
NPUT OF
DAL
FROM OUTPUT OF
EFFECTSPEDAL
TO 5150 EFFECTS
RETURN INPUT
BACK PANEL
