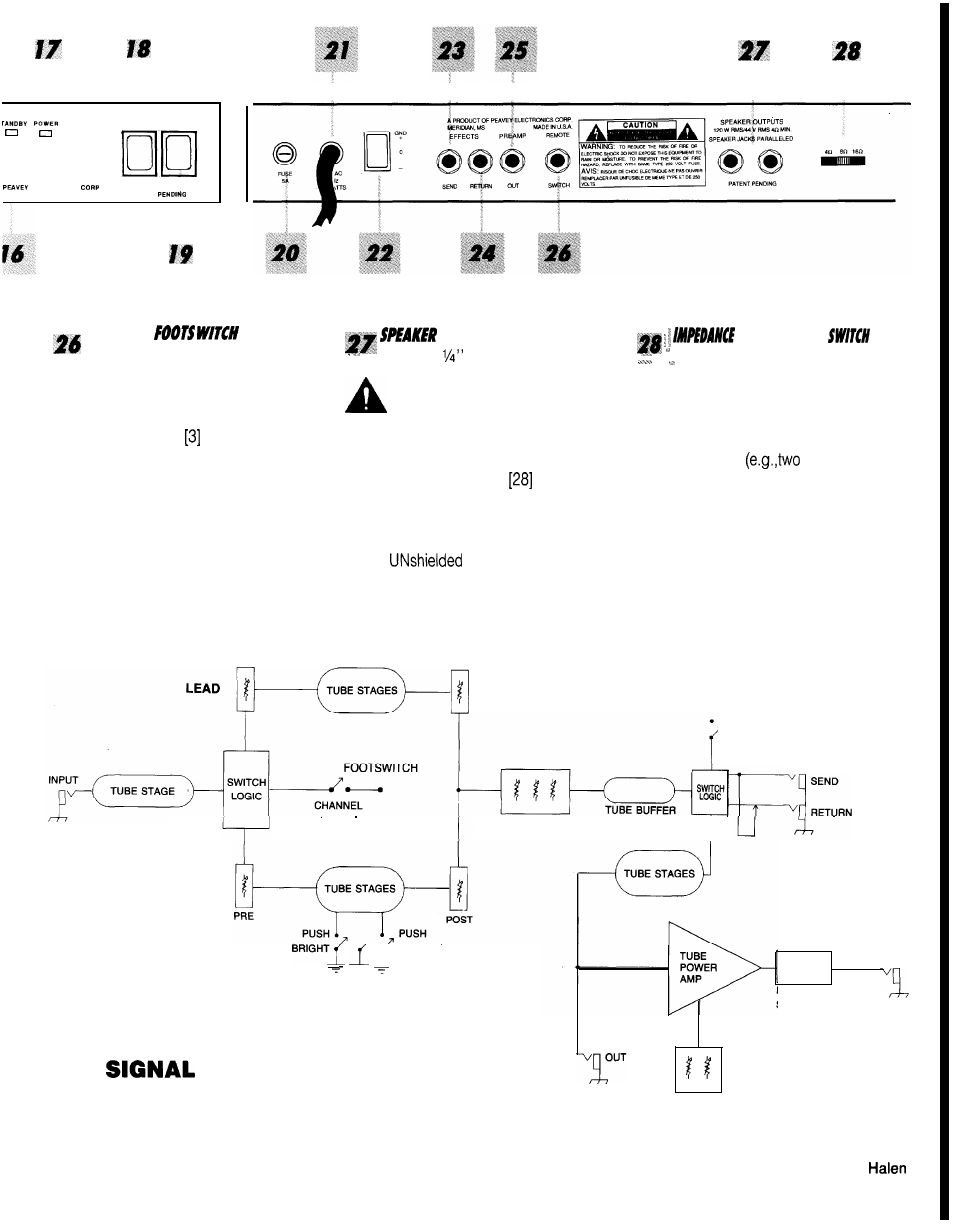

BACK PANEL
REMOTE JACK
Provided for the connection of the
supplied remote footswitch. When
the footswitch is plugged into the
remote footswitch jack, the channel
select switch must be pressed
to the “in” position for remote
selection to operate. Remote
selection of the LEAD or RHYTHM
channel (left footswitch button) or
outboard devices in the effects
loop (right footswitch button) is
possible with the remote footswitch.
O U T P U T S
Paralleled output jacks for
connecting speaker enclosure(s) to
the amplifier (minimum: 4 ohms).
When using more than one
enclosure, be sure to calculate the
total impedance and set the
impedance switch accordingly.
(See section on IMPEDANCE
SWITCH.)
Important: Use only high quality,
cable for speaker
connections.
SELECTOR
Use to select the appropriate . .
impedance of the speaker
enclosure(s). If two enclosures of
equal impedance are used, the
switch should be set at one half of
that value 16 ohm
enclosures: set switch to 8 ohms;
two 8 ohm enclosures: set switch
to 4 ohms).
PRE POST
FOOTSWITCH
SELECT
RHYTHM
LOW MID HI
I
EFFECTS
C R U N C H
IMPEDANCE
SWITCH
OUTPUT
FLOW BLOCK DIAGRAM
PREAMP
RESONANCE PRESENCE
5150 is a Registered Trademark of Edward Van
