2 – PYLE PRO PZR6XA/10XA/30XA/50XA Amplifier Owner’s Manual
INSTALLATION GUIDELINES
Connecting the GND (GROUND) screw terminal Connecting
a mixer or preamplifier may cause excessive noise or hum
in the amplifier output. To prevent this, connect one end
of a low-capacitance shield wire to the amplifier's ground
screw (on the rear panel). Then connect the other end of
this wire to the ground terminal on the mixer or preamplifier
enclosure.
LOW CAPACITANCE SHIELD WIRE
GROUND SCREW
Input connections
These amplifiers accept a board range of input sources,
including Compact Disc (CD,DVD) players; Cassette, Reel-
to-Reel or other tape players; Radio Tuners; Equalizers;
Signal Processors.
Connecting a CD, DVD, tape player or tuner
In a normal installation, one would use the RCA JACKS for
connecting a CD player, DVD player,tape player or tuner.
use RCA jacks
Connecting an equalizer or external signal processor
Connect the processor's OUT to the amplifier's IN connector.
use XLR/6.35mm combo jacks
Speaker connections
You can connect 4 Ohm, 8 Ohm or 16 Ohm speakers to
Channel 1 and/or Channel 2 of the amplifier. If you connect
two pairs of speakers, be sure to follow these guidelines:
• Speakers which are connected to the same channel are
part of a pair, and must be of the same impedance.
• Speakers connected to different channels are NOT part
of a pair, and can be of different impedances.
1. Prepare the speaker wire by removing about 1 inch of
insulation from the end of the speaker wire you intend to
connect to the amplifier. Then twist the exposed wire to
secure all the wire strands.
NOTE: Use 16-gauge speaker wire for lengths up to25
feet; 14-gauge wire for lengths over 25 feet. It is
recommended that you use the shortest length of wire
possible.
2. Connect the speaker wires to the speaker's positive and
negative terminals.
NOTE: Most speaker terminals are either color-coded
or have a mark that indicates the terminal's polarity.
Usually positive terminals are red or have a plus symbol
(+), and negative terminals are black or have a minus
symbol (-).
3. Connect the speaker wires to the amplifier's left and
right speaker terminals according to the terminal color
polarity.

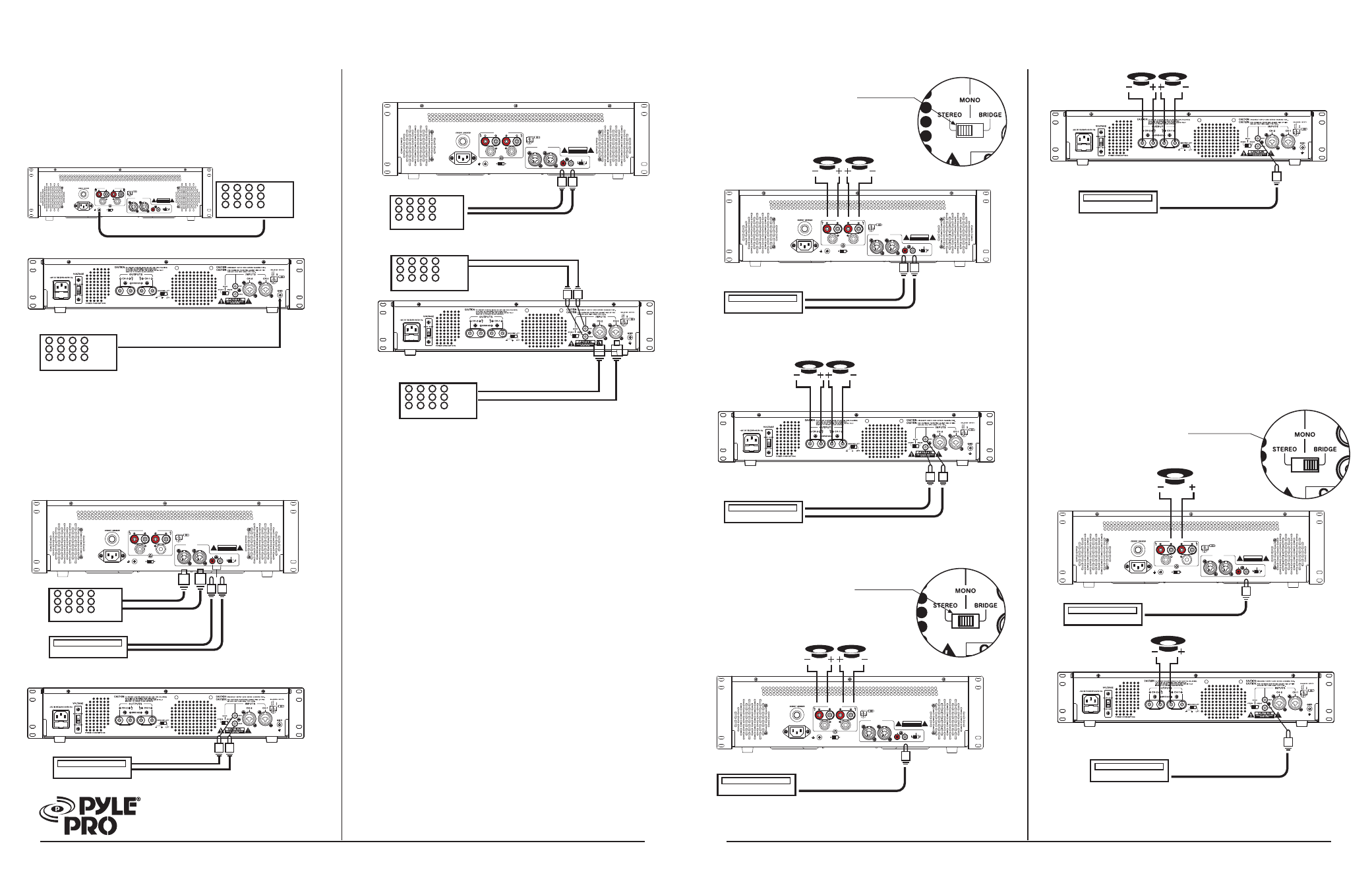

Stereo or Mono Inputs
Your Pyle Pro amplifier can be operated in Stereo, Mono or
Bridged mode, depending on the input source. If the input
signal is mono, slide the Stereo/Mono/Bridged selector
switch to MONO and the signal will be routed through both
channels. If you wish to run the amplifier in bridged output
mode, slide the switch to Bridged.
SWITCH IN “STEREO” POSITION
STEREO OPERATION
STEREO SIGNAL SOURCE
CH 2 CH 1
CAUTION! Do not use
balanced and unbalanced
inputs simultaneously!!
Bridged Mode Operation
This amplifier can operate in a mono bridged output mode, if
your speakers can handle the following power output levels:
As shown in the diagram below, connect the speaker's positive
(+) to the amplifier's red speakers left (1/2) terminals and
negative (-) to red speakers right (1/2) terminals.
The speaker right (+) on the amplifier is used as a negative (-)
terminal for a bridged connection.
NOTE: The extra amplifier output of 6.35mm phone
jacks can not be used for the bridged connection. It can only
be used in normal (non-bridged) operation as a stereo speaker
output.
MONO SIGNAL SOURCE
USE
CHANNEL 1
INPUT ONLY
CAUTION! Do not use
balanced and unbalanced
inputs simultaneously!!
CH 2 CH 1
MONO SIGNAL SOURCE
USE
CHANNEL 1
INPUT ONLY
SWITCH IN “BRIDGED” POSITION
MONO BRIDGED OPERATION
CAUTION! Do not use
balanced and unbalanced
inputs simultaneously!!
DO NOT USE
BLACK TERMINALS
PYLE PRO PZR6XA/10XA/30XA/50XA Amplifier Owner’s Manual – 3
SWITCH IN “MONO” POSITION
MONO OPERATION
CH 2 CH 1
CD PLAYER, DVD , TAPE PLAYER
OR TUNER
use RCA jacks
use XLR/6.35 mm
combo jacks
STEREO SIGNAL SOURCE
CAUTION! Do not use
balanced and unbalanced
inputs simultaneously!!
CH 2 CH 1
CAUTION! Do not use
balanced and unbalanced
inputs simultaneously!!
MONO SIGNAL SOURCE
USE
CHANNEL 1
INPUT ONLY
DO NOT USE
BLACK TERMINALS
MONO SIGNAL SOURCE
USE
CHANNEL 1
INPUT ONLY
CH-2 CH-1
CH-2 CH-1
