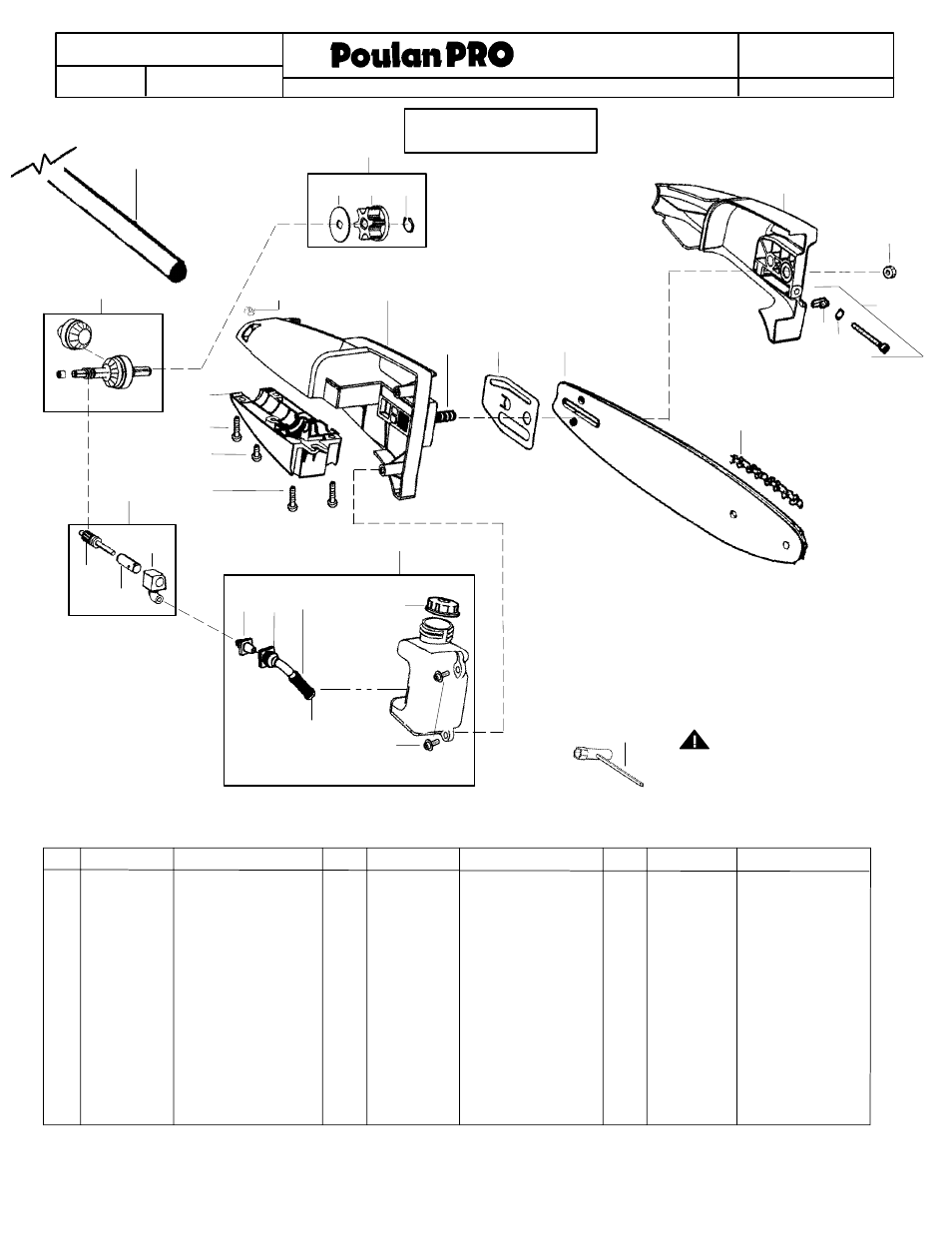

PARAMOUNT PARTS LIST
R
PARTS LIST
r
Replaces
3 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
545014364
PP446ET
DATE
2/10/09 545014364 --- 6/06/08
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must
be performed by qualified
service personnel.
WARNING
= NEW PART NUMBER FOR THIS IPL n = REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
27. 530056524 Fitting--Oil Line
28. 530021160 Intake--Oil Line
29. 530037821 Filter--Oil
30. 530053072 Cap--Oil
31. 530030189 Plug--Oil Filter
32. 530015843 Screw
33. 530031163 Wrench--Bar
14 530016133 Bolt--Bar
15. 530056513 Hsg.--Upper
(incl. #14)
16. 530016284 Nut
17. 530071646 Kit--Gear Assy
18. 530056514 Hsg.--Lower
19. 530016312 Screw
20. 530015805 Screw--Align
21. 530015886 Screw
22. 530071645 Kit--Oil Assy
(incl. 23,24,25)
23. 530053764 Assy--Gear Plunger
24. 530053765 Barrel
25. 530056522 Block--Oil
26. 530056528 Assy--Oil Tank
(incl. 27,28,29,30,31)
1. 545008090 Assy--Driveshaft
2. 530071647 Kit--Sprocket Assy.
(incl. 3,4,5)
3. 530056521 Washer
4. 530056520 Sprocket
5. 530056563 Retainer--Sprocket
6. 530057100 Assy--Bar Clamp
(incl. #8)
7. 530015917 Nut--Bar Mounting
8. 530069611 Kit--Bar Adjust
(incl. 9,10)
9. 530015826 Pin--Bar Adjust
10. 530038593 Retainer--Bar Adjust
11. 952051549 Accy.--Chain--8”
12 530044908 Bar--8”
13. 530056523 Plate--Bar pad
2
3 4 5
6
7
8
9
10
11
12 13
15 16 17
18
19
20
21
22
25
23
24
26
27 28 29 30
32
33
31
14
1
