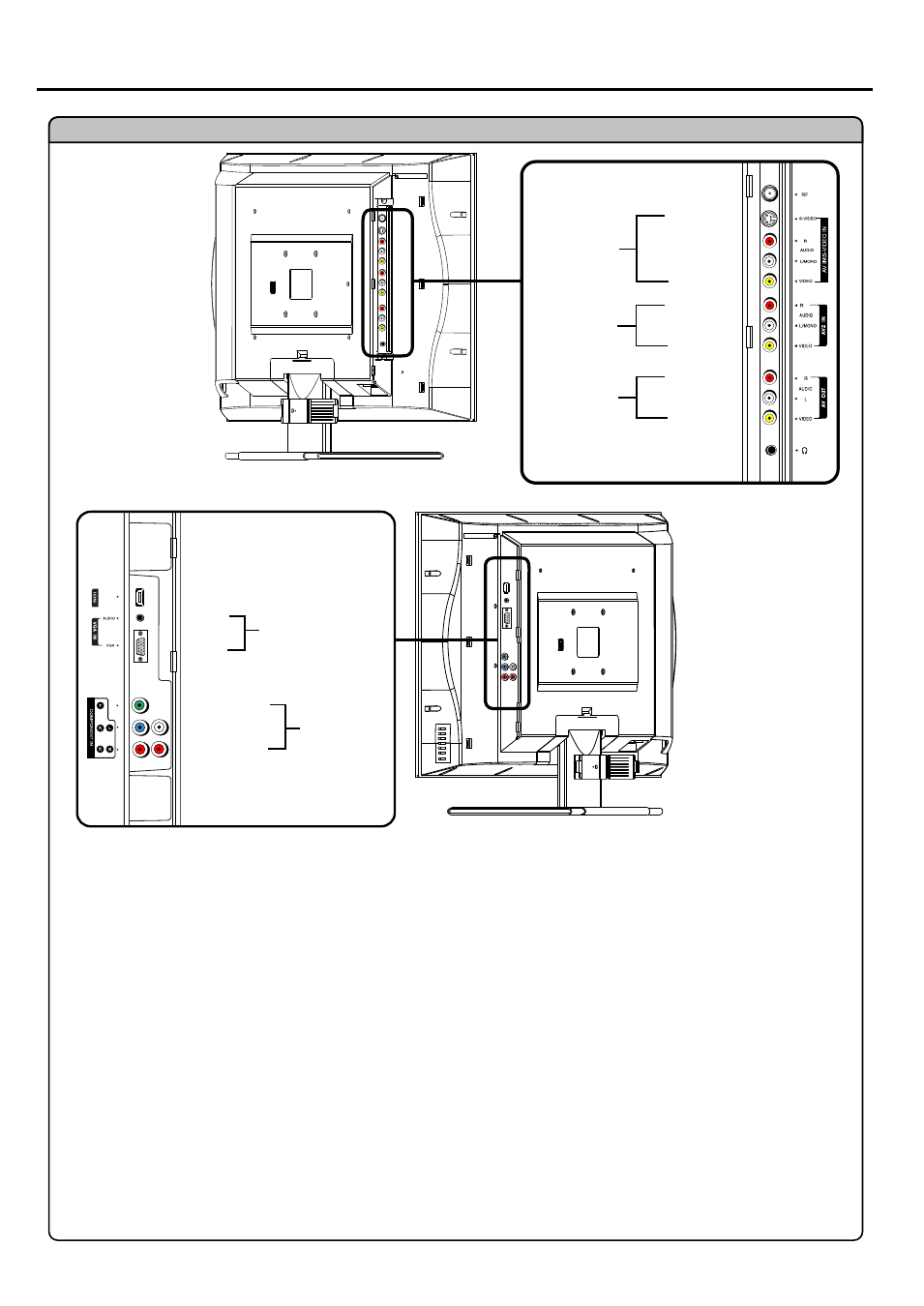

Identification of Controls
(continued)
8
1. Antenna Input
Allows you to connect cable or outdoor antenna
2. AV2 Inputs (Video, Audio L/Mono, R) / S-Video input
Receive video/audio signals from external sources such as VCR or DVD player.
Receive a S-Video signal from external source such as VCR or DVD player.
3. AV1 Inputs (Video, Audio L/Mono, R)
Receive a S-Video signal from external source such as VCR or DVD player.
4. AV Outputs (Video, Audio L/Mono, R)
5. Headphone jack
6. HDMI input jack
7. VGA input / Audio in
Connect to the VGA/audio output jacks on your equipment.
8. COMPONENT Inputs (Y, Pb/Cb, Pr/Cr, Audio L, R)
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
Main Unit
ANTENNA INPUT
HEADPHONE JACK
S-VIDEO
AUDIO R
AUDIO L/MONO
VIDEO
AV1 INPUT/
S-VIDEO IN
AV2 INPUTS
AV OUT
AUDIO R
AUDIO L/MONO
VIDEO
AUDIO R
AUDIO L/MONO
VIDEO
AUDIO
VGA
VGA IN
Y
Pr/Cr AUDIO-R
Pb/Cb AUDIO-L COMPONENT IN
HDMI
