F U S E 1 5 A F U S E 1 5 A F U S E 1 5 A
8 m m M A X
> P B T < J A M - S A a
CHANGER IN
12
13 CQ-VD6503N
English
(L) (White)
(R) (Red)
DIN Connector
Conversion Cable for DVD/CD
Changer (CA-CC30N, option)

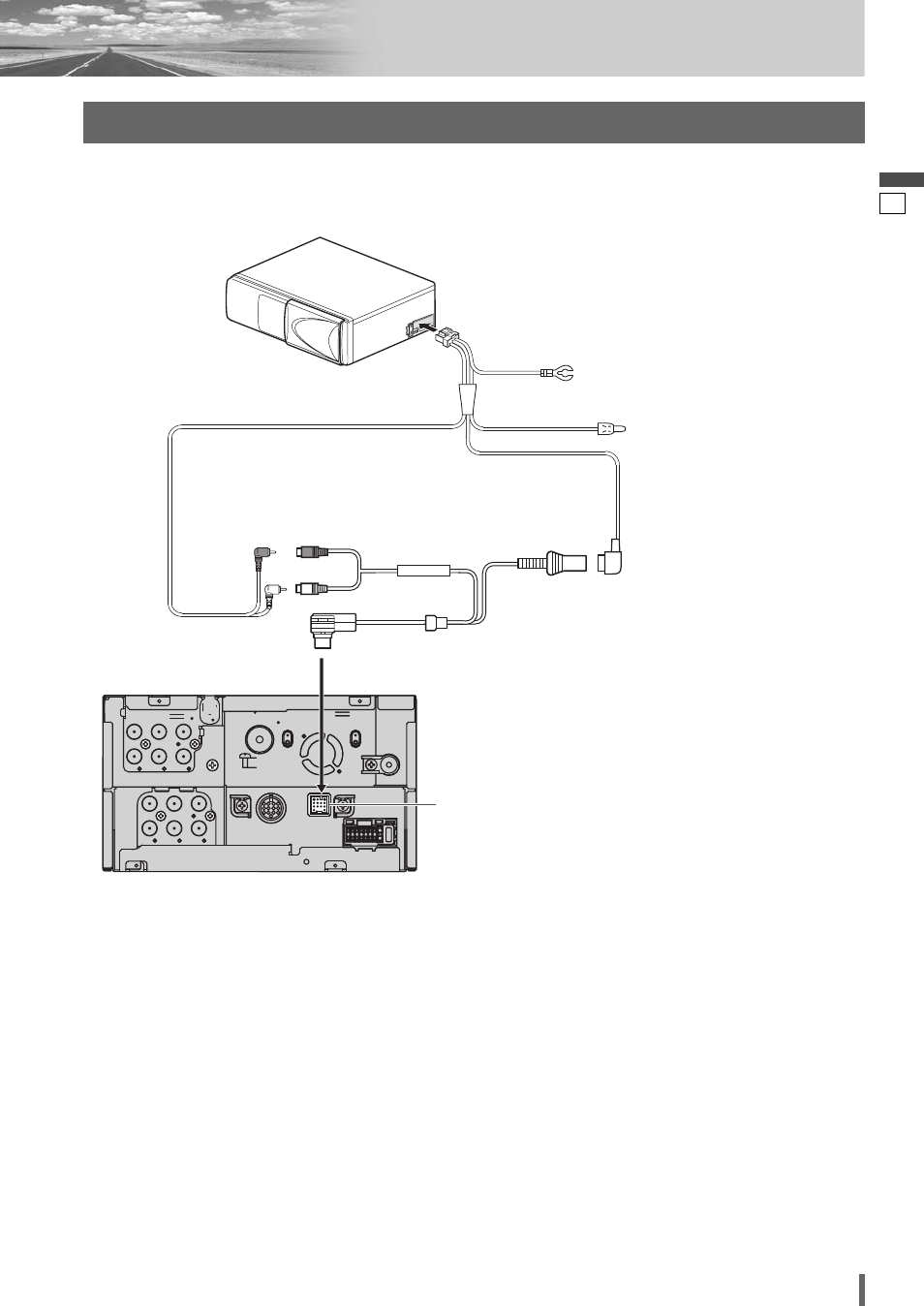

Connection with CD Changer (CX-DP880N)
CQ-VD6503N
(Rear)
System-up connector
DIN Cord (Black)
CD Changer
CX-DP880N (option)
Power Connector
(Supplied with CX-DP880N)
RCA Cord
Battery Lead (Yellow)
To the car battery, continuous
+12 V DC
Ground Lead (Black)
To a clean, bare metallic part of the car
chassis
Note:
¡ Refer to the operating instructions for the connected devices, in addition.
