REPAIR PARTS
TILLER - - MODEL NUMBER PRRT900, (MFG. ID. NO. 96092003000)

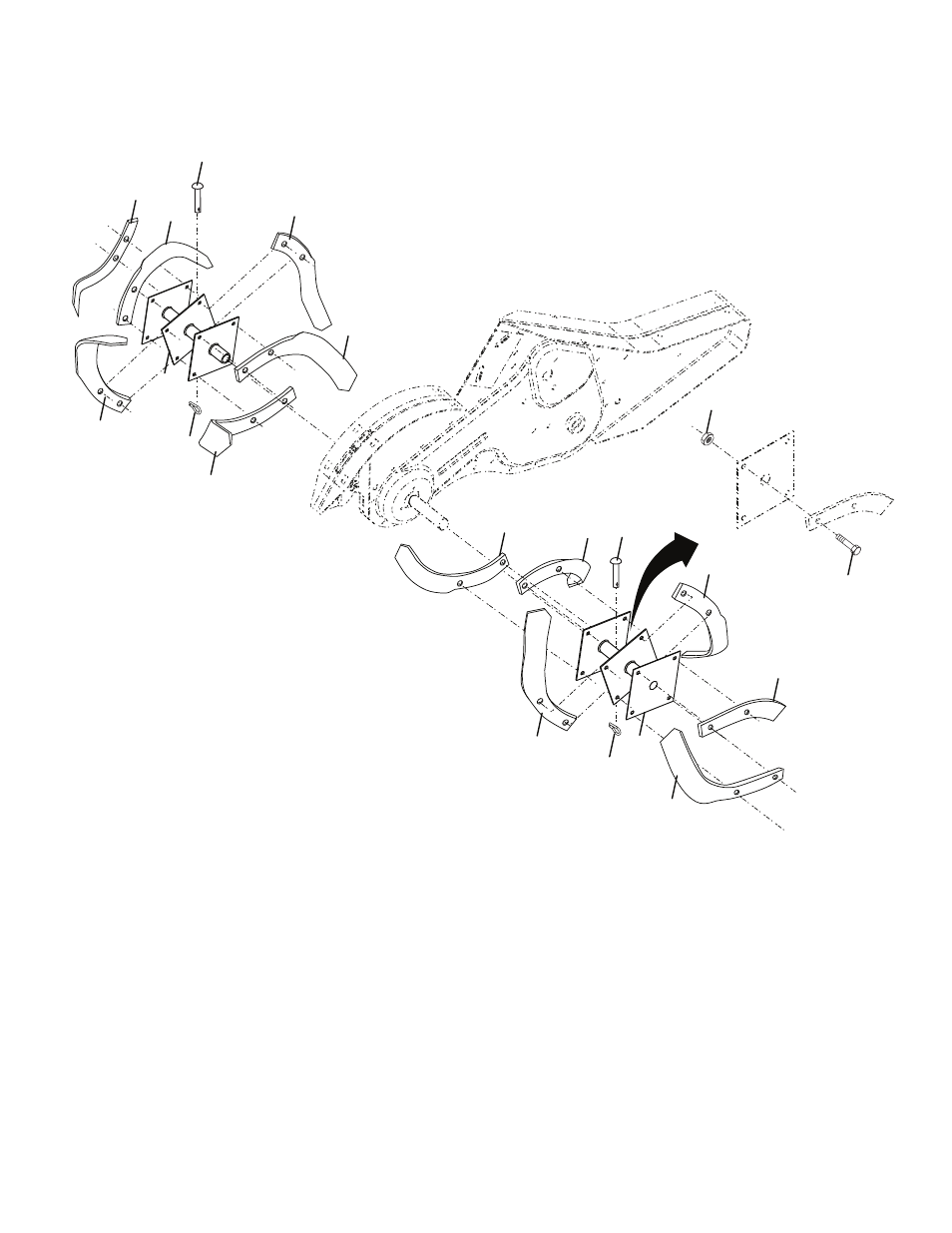

TINE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 00 44-59 Tine, Outer, L.H.
2 532 13 26-73 Pin, Shear 1.765 x .3125 Gr. 5
3 532 00 65-54 Tine, Inner, L.H.
4 532 12 46-60 Retainer, Spring Zinc
5 532 13 27-27 Assembly, Hub L.H.
8 874 61 06-16 Bolt, Hex 3/8-24 x 1
9 532 00 44-60 Tine, Outer, R.H.
10 532 13 27-28 Hub, Asm. R.H.
11 532 00 65-55 Tine, Inner, R.H.
34 873 54 06-00 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
2 11
11
10
9
9
4
4
5
34
3
3
1
2
1
1
1
9
9
8
tine_ipb_1
