REPAIR PARTS
TILLER - - MODEL NUMBER PRRT900, (MFG. ID. NO. 96092003000)

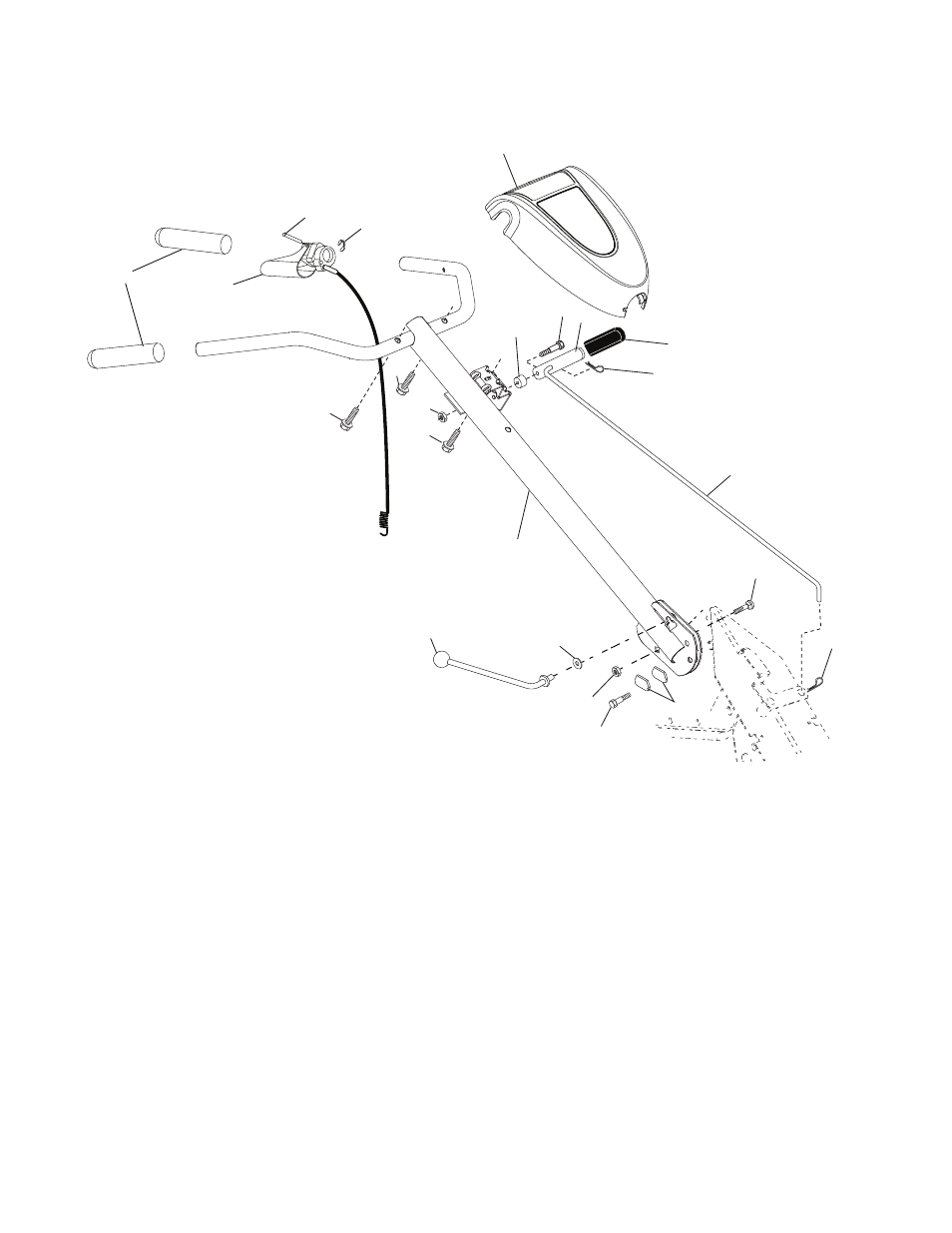

HANDLE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
21 532 19 31-29 Handle
27 873 90 04-00 Nut, Hex Flange 1/4-20 unc
31 532 15 06-96 Bolt, Pivot
42 532 41 63-58 Screw #10 x .750
100 532 19 31-33 Lever
101 532 18 85-55 Pin, Pivot
102 812 00 00-59 Retaining Ring
KEY PART
NO. NO. DESCRIPTION
2 532 42 76-43 Grip, Handle
6 532 44 64-65 Panel, Control
10 532 12 47-97 Grip, Handle
11 532 12 47-88 Clip, Hairpin
12 532 08 13-28 Bolt, Shoulder
13 532 18 74-97 Handle, Shift
14 532 10 93-13 Grommet, Rubber
15 532 10 93-37 Rod, Shift
16 872 11 06-08 Bolt, Carriage 3/8-16 x 1 Gr. 5
17 532 10 92-29 Lock, Handle
18 873 68 06-00 Nut, Crownlock 3/8-16 unc
19 819 13 16-11 Washer 13/32 x 1 x 11 Ga.
20 532 10 92-28 Lever, Lock, Handle
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
2
19
31
17
16
21
27
42
42
42
18
20
