Chapter 9
Other connections

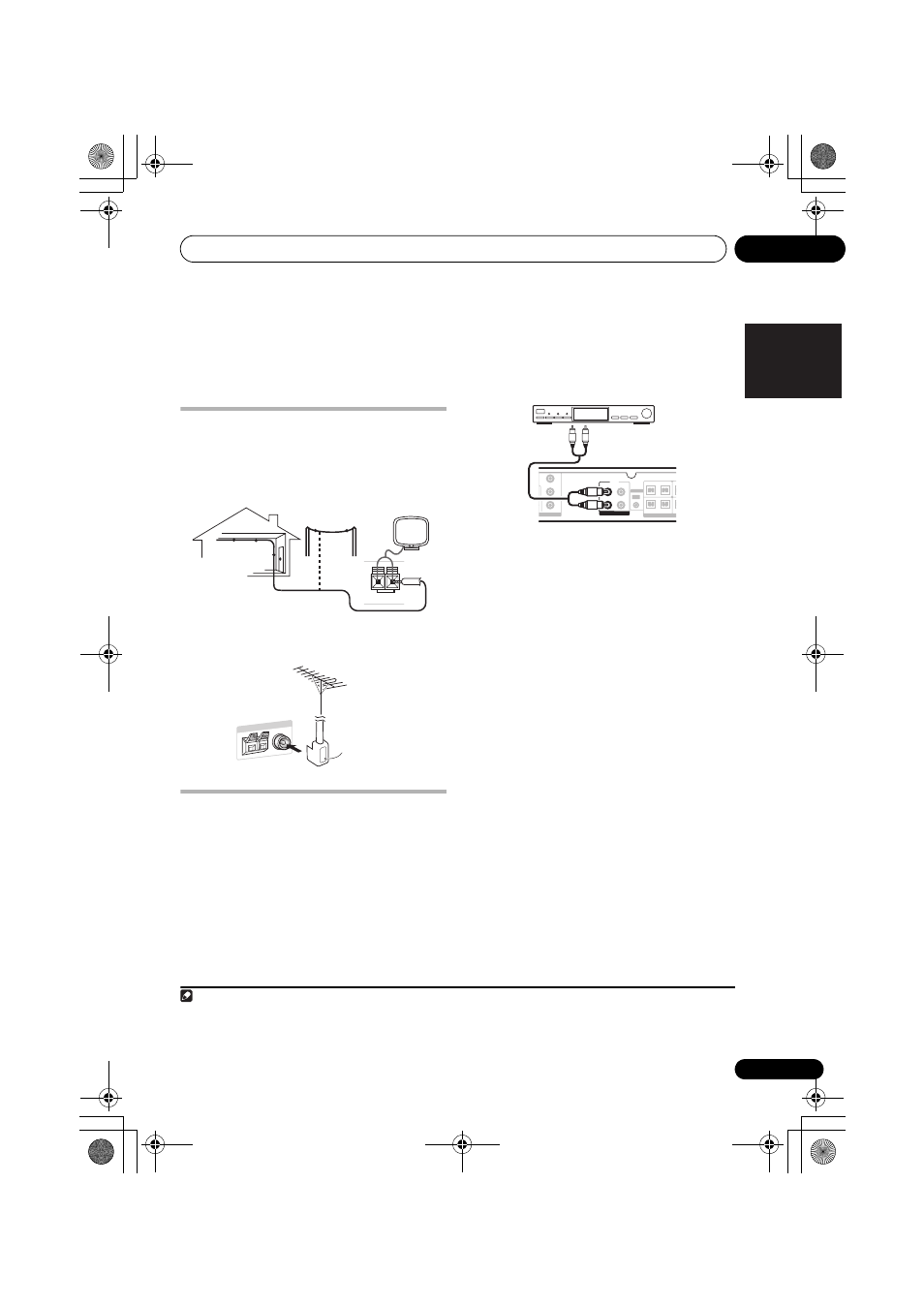

Connecting external antennas
For an external AM antenna, use 5 m to 6 m of
vinyl-insulated wire and set up either indoors or
outdoors. Leave the loop antenna connected.
Only use the included AM loop antenna.
For an external FM antenna, use a PAL
connector to hook up an external FM antenna.
Connecting auxiliary audio
components
Using the stereo analog inputs, you can
connect an external component such as a tape
deck or MD player for playback through this
system.
•
Connect the AUDIO IN jacks to the analog
outputs of an external playback component.
Connect using RCA pin-plug stereo cables.
Recording mode
The recording mode allows you to make
surround-compatible analog recordings from
the
LINE OUT jacks
1
. Dolby multichannel
sources are downmixed to stereo for improved
playback with systems that can provide matrix-
decoding (like Dolby Pro Logic).
1
Press SOUND.
2
Use
/ to select a REC MODE, then
press ENTER.
3
Use
/ to choose MODE ON or MODE
OFF and then press ENTER to confirm.
•
MODE ON – A surround-compatible
downmix (left-total/right-total, or Lt/Rt) of
Dolby multichannel sources is output,
(suitable for Dolby Surround Pro Logic or
other matrix decoding).
•
MODE OFF – A simple stereo downmix
(left-only/right-only, or Lo/Ro) is output
(suitable for playback on a two-channel
stereo system or on headphones.
Outdoor antenna
5 m to 6 m
Indoor
antenna
(vinyl-coated
wire)
AM LOOP
ANTENNA
PAL connector
Note
1 • When the recording mode is on, most sound features cannot be used. The display will briefly blink
REC MODE if you try and
use a prohibited function while the recording mode is on.
• When the recording mode is off, the audio from the analog output jacks may be interrupted, depending on the operation.
• The recording mode switches off if you change the input function (
DVD/CD, TUNER, etc.) or switch the power off.
SURROUND
FRONT
SPEAKERS (4
Ω
AUDIO
R
L
R
R
L
L
R
L
OUT
Y
C
R
/
P
R
C
B
/
P
B
NENT
DEO
OUT
LINE
IN
OUT
CONTROL
To audio
output
Tape deck, etc.
