Other connections 06
26
En

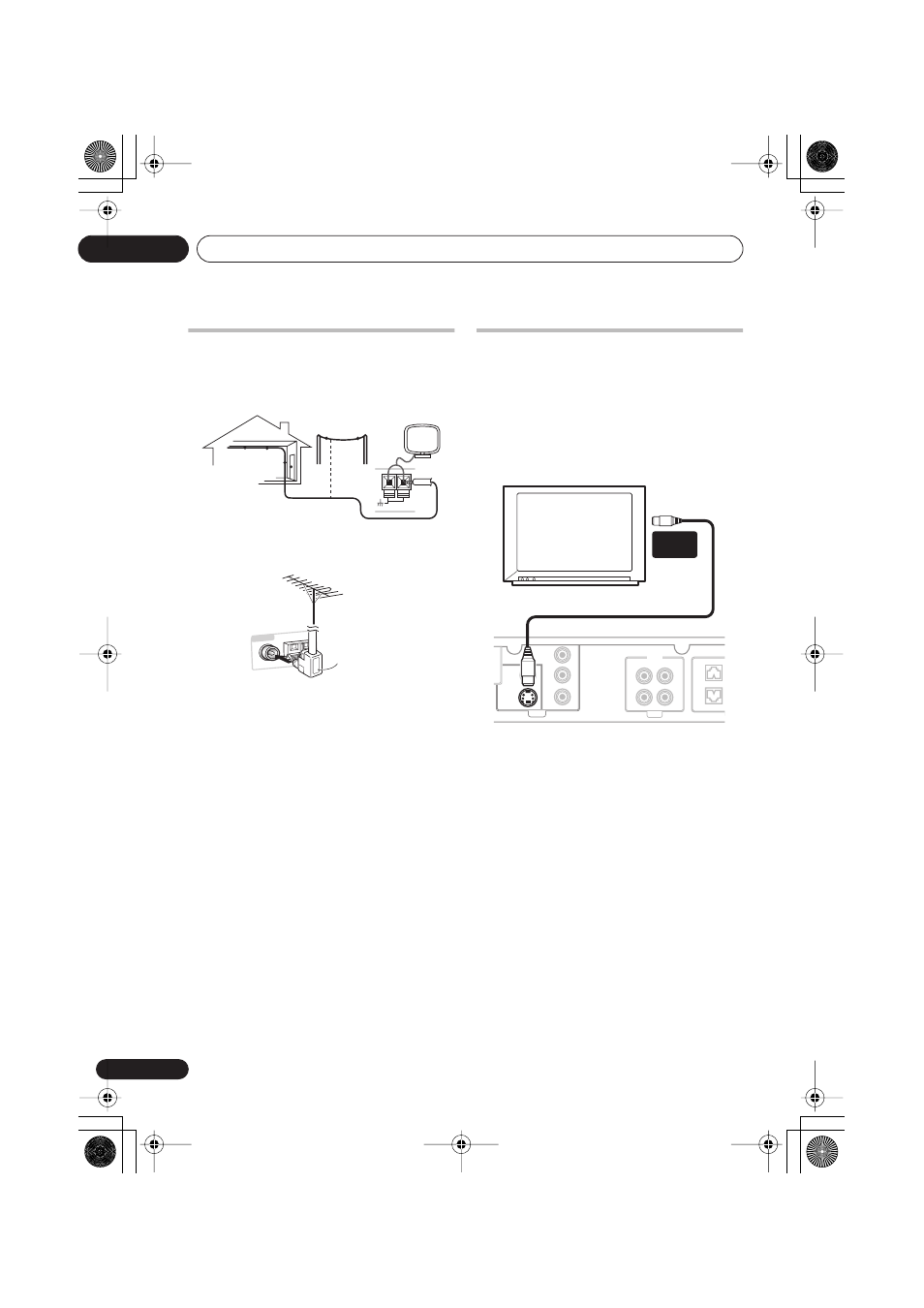

Connecting external antennas
For an external AM antenna, use 5–6 meters of
vinyl-insulated wire and set up either indoors or
outdoors. Leave the loop antenna connected.
For an external FM antenna, Use a PAL
connector to hook up an external FM antenna.
Connecting the S-video output
If your TV has an S-video input, you can use this
instead of the standard video output for a
better quality picture.
• Use an S-video cable to connect the S-
VIDEO OUT to an S-video input on your TV.
Line up the small triangle above the jack with
the same mark on the plug before plugging in.
Outdoor antenna
5–6 m
Indoor
antenna
(vinyl-coated
wire) AM
LOOP ANTENNA
ANTENNA
PAL connector
AUDIO
IN
R
L
OUT
R
L VIDEO
OUT
COMPONENT
VIDEO OUT
S-VIDEO
OUT
R
R FRONT
SURROUND
VIDEO
LINE
Y
CB/
PB
CR/
PR
TV
XV-DV131/232T
S-VIDEO
INPUT
